ICON 2010+ Lexus GX460, 0-3.5in Lift, Stage 4 Suspension System, Billet UCA
ICON 2010+ Lexus GX460, 0-3.5in Lift, Stage 4 Suspension System, Billet UCA
Couldn't load pickup availability

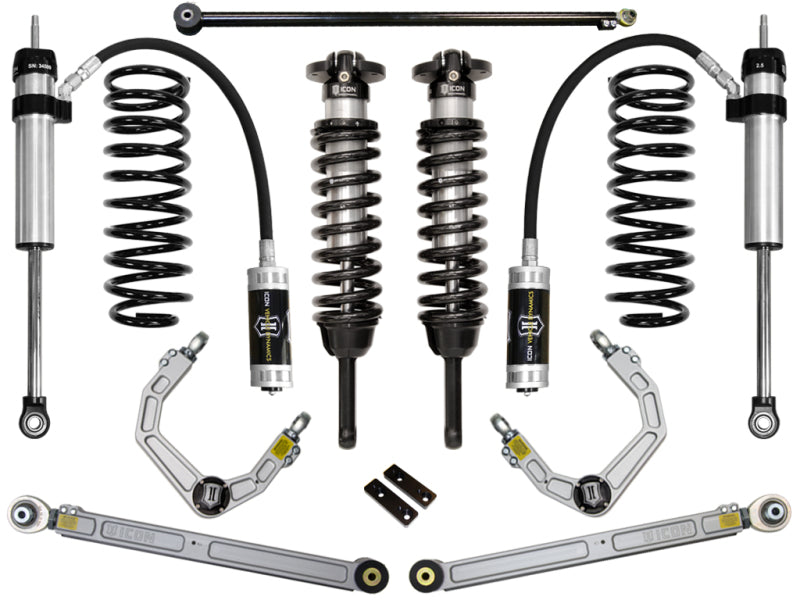

The Stage 4 system includes vehicle-specific tuned, extended travel 2.5” coilover shocks with internal reservoirs paired with billet aluminum Delta Joint upper control arms. This combination allows for extended wheel travel and on-vehicle adjustment of the upper control arms to dial in front end alignment. The coilovers are also height adjustable from 0-3.5” of lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. ICON 2” lift rear coil springs paired with 2.5 Aluminum Series remote reservoir rear shocks utilizing vehicle-specific valving offer increased performance compared to the 2.0 Aluminum Series shocks. ICON's billet aluminum lower links are much stronger than the OE units, improve articulation, and can be adjusted while installed on the vehicle for optimum pinion angle. On top of it all, these links have been designed to provide correct roll steer geometry for the best possible handling on and off-road. An adjustable rear track bar is also inc
Vehicle Fitment
- 2010-2014 Toyota FJ Cruiser
- 2010-2023 Lexus GX460
- 2010-2024 Toyota 4Runner
Please verify exact fitment for your trim and engine before ordering.
Manufacturer Part Number: K53184
Images are for illustrative purposes only. Actual product may vary.
⚠ WARNING (California Proposition 65): This product can expose you to chemicals which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Share
🛡️
Manufacturer's Warranty — ICON
▾
Manufacturer's Warranty — ICON
ICON Vehicle Dynamics sets warranty by product line. Shock absorbers carry a 1-year warranty against manufacturer defects: a shock that fails within that first year of ownership must be shipped to ICON for inspection and service, and if inspection shows the failure came from neglect, damage caused by improper installation, or any reason other than normal wear and tear, the owner is responsible for all service costs including labor, parts and shipping. ICON's other components are covered by a limited lifetime warranty. Two joint products have their own terms: the ICON Delta Joint carries a five-year warranty and a defective joint is replaced only if the warranty registration was completed within 30 days of purchase (iconvehicledynamics.com/deltajointreg), while the Delta Joint Pro carries one year from the date of purchase — neither applies to a joint used with a non-ICON suspension system, and an unregistered Delta Joint is not covered. Coverage runs to the original retail purchaser who owns the vehicle the product was originally installed on and is not transferable. ICON's obligation is limited to repair or replacement at its discretion; removal, installation or re-installation, freight charges and incidental or consequential damages are expressly excluded, and items subject to wear are not considered defective when worn. Components must be installed as a complete kit as shown in ICON's current application guide — any substitution or omission of required components voids the warranty immediately. Also not covered: finish, alterations, modifications, installation contrary to ICON's instructions, finish damage that occurs during shipping, race or competition use, and police, taxi, government or commercial vehicles. Sales outside the United States and Canada are excluded.
Warranty terms are set by the manufacturer and may change. Contact us if you need help with a warranty claim.
