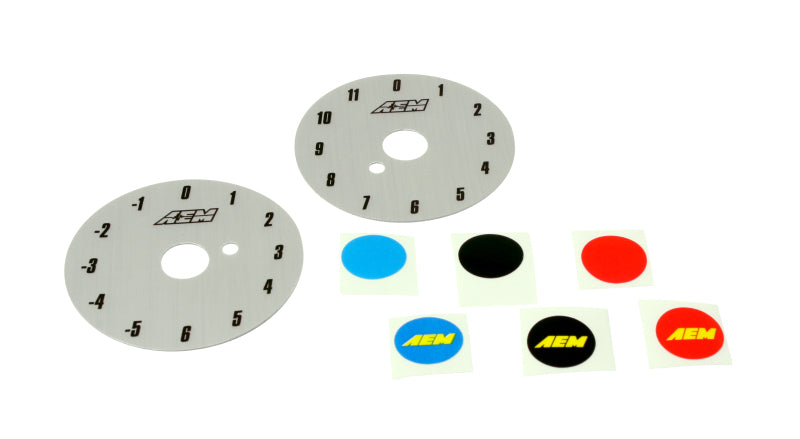

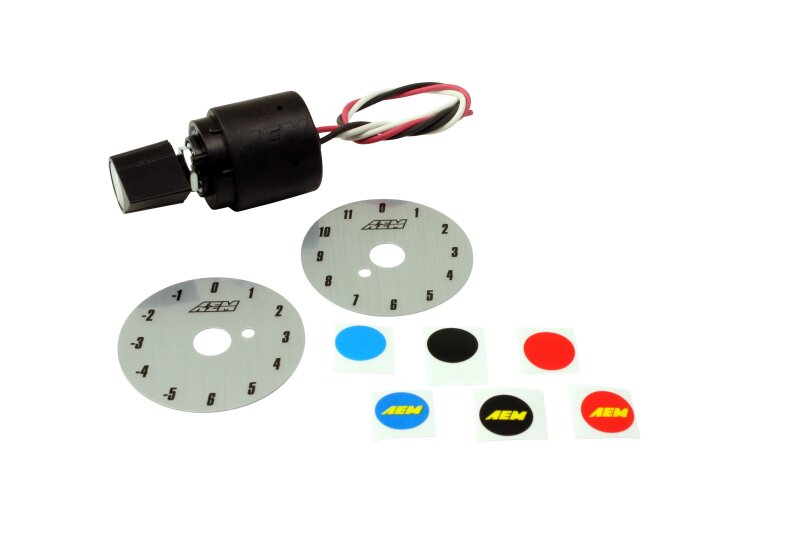

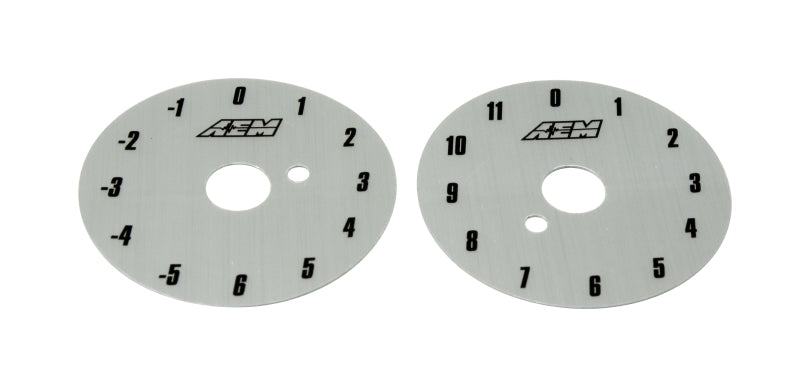

The Universal 12 Position Trim Pot is for use on virtually any Engine Management System, such as the AEM EMS. Use the Trim Pot to adjust a number of trims, including ignition timing, fuel, boost, etc. The Universal 12 Position Trim Pot includes: 12 Position Trim Pot with Flying Lead, 2 Brushed Silver Trim Position Decals with ranges from -5 to +6 and 0 to +11, Blue/Red/Black AEM Logo Knob Decals & Blue/Red/Black Colored Knob Decals.
Trim potentiometer can be used with virtually any engine management system

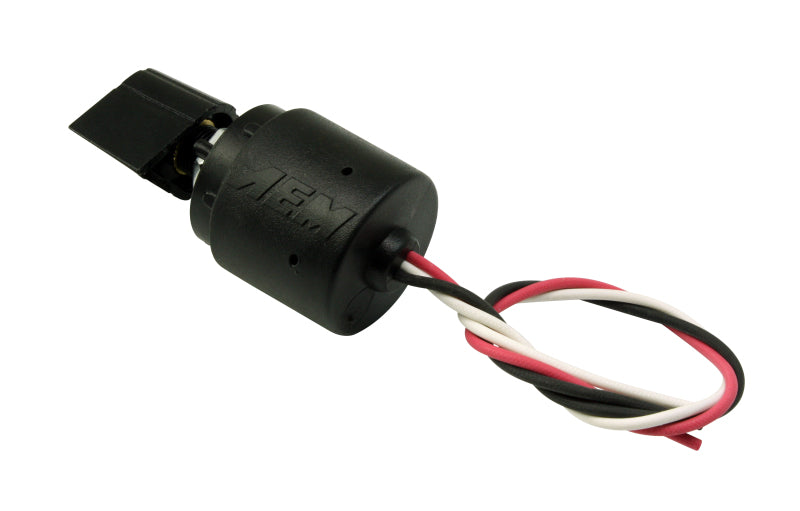

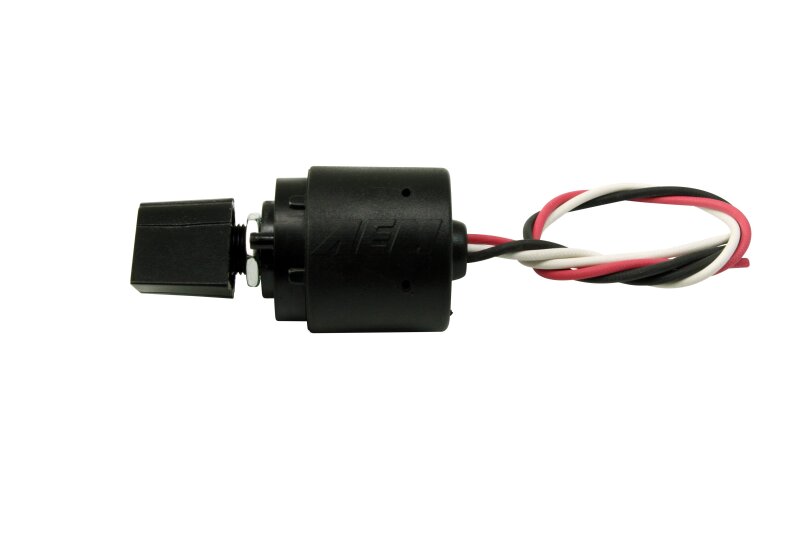

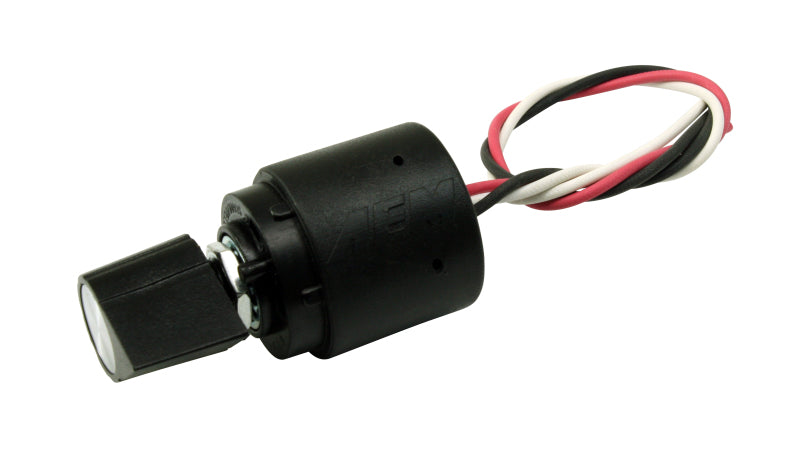

Includes a weatherproof-over-molded flying lead that has 12-inch insulated, color-coded wires, two brush silver Trim Position decals, and black AEM logo adjustment knob
Adjusts a number of trims, including ignition timing, fuel, boost, etc.
Features
- 12 Position Trim Pot Performance Specifications
- Total Resistance: 14.3KO
- Cycles Minimum: 10,000
- Positions: 12
- Degree Rotation: 330
- Mounting: 3/8" Hole
- Jam Nut: 1/2" Hex
- Knob Set Screw: 1/16" Allen
- Supply Current: 5 Vdc
- Over mold weatherproof body with 12" leads, 1 Red (Supply Voltage 5Vdc +/- .5), 1 Black (Ground), 1 White (Output)
Application: Universal — verify fitment for your setup. This is a performance/fabrication component not tied to a specific vehicle year/make/model.
Manufacturer Part Number: 30-2056
Images are for illustrative purposes only. Actual product may vary.
Emissions Note: This product is not CARB approved and is not legal for sale or use on pollution-controlled motor vehicles in California, or in states that have adopted California emission standards. It is intended for off-road / racing use only. It is the responsibility of the installer/end-user to ensure compliance with all applicable federal, state and local emissions regulations.
