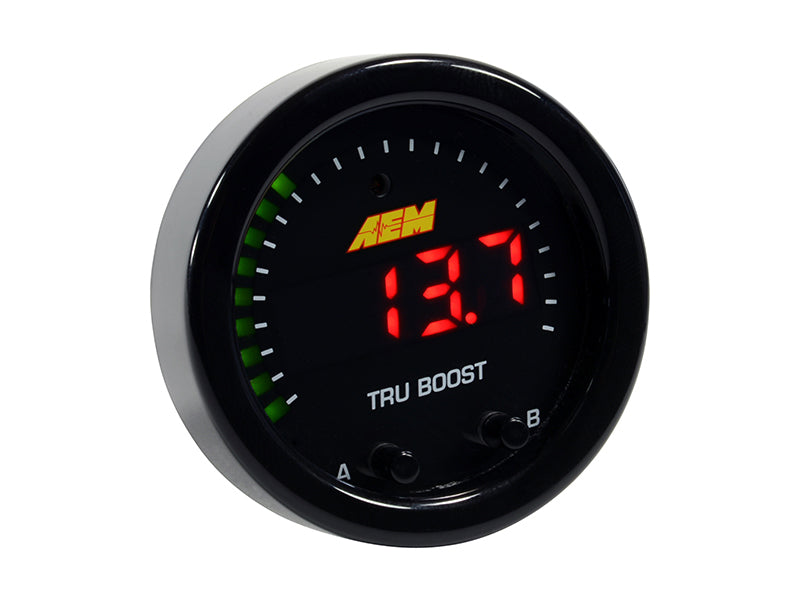

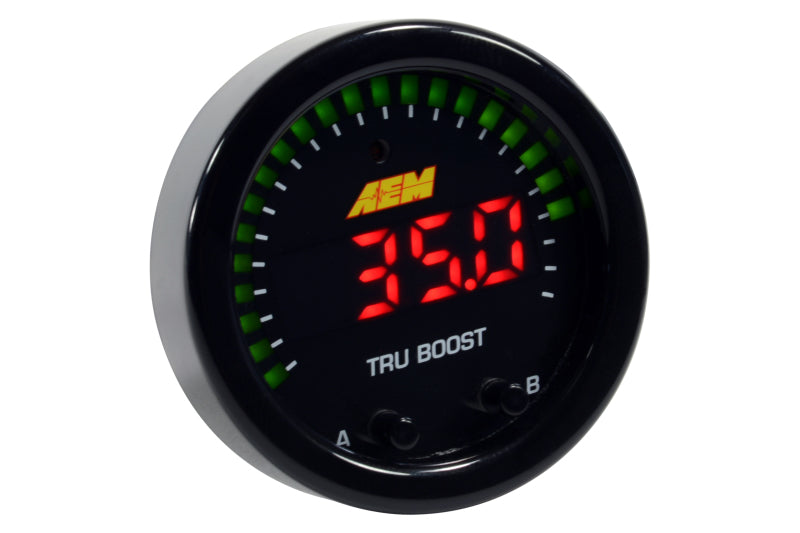

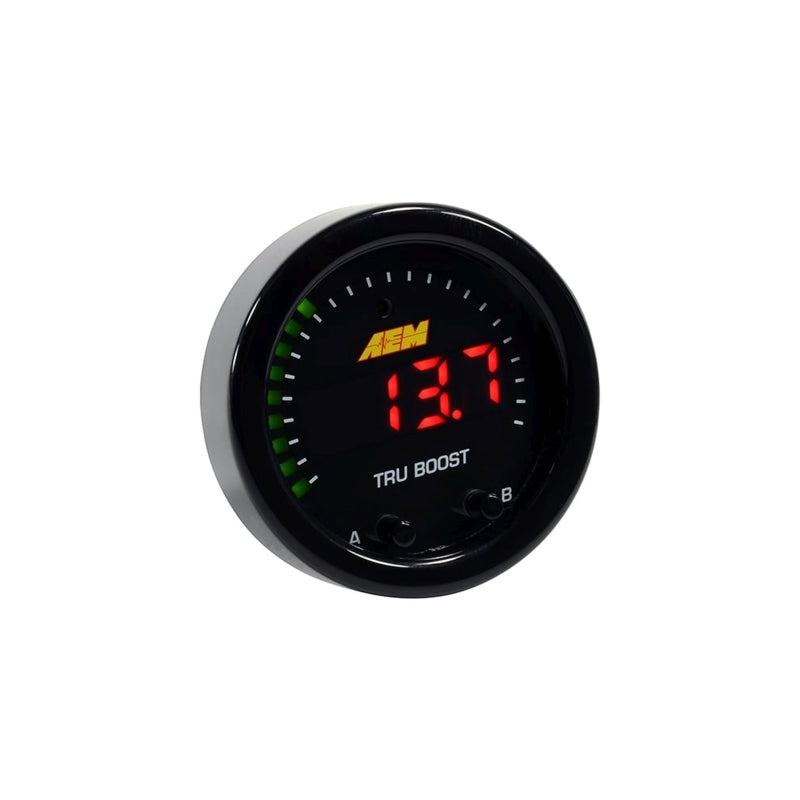

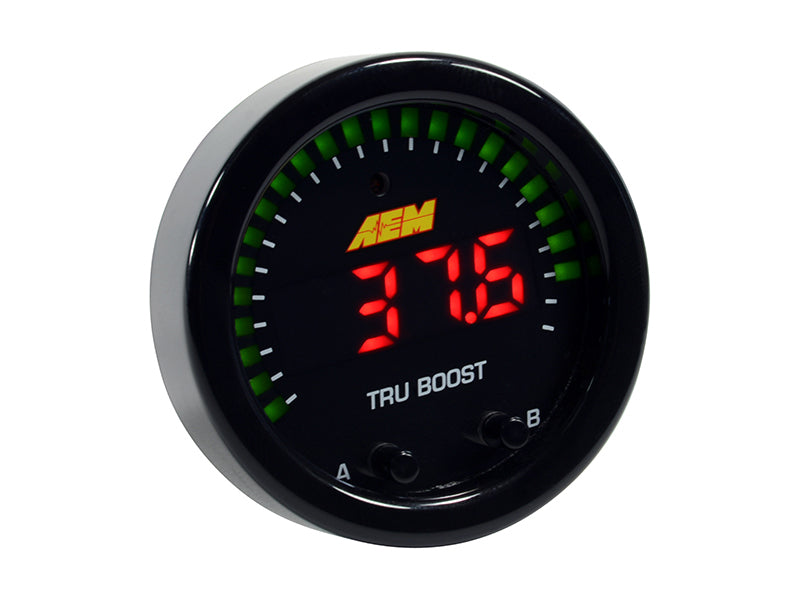

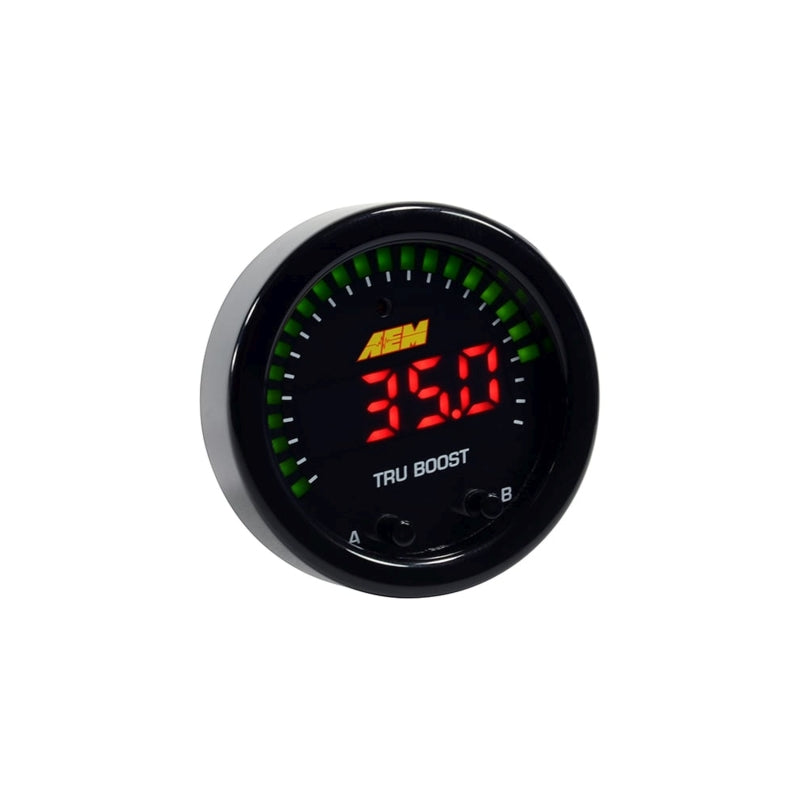

AEM X-Series Tru-Boost Controller Gauge w/ Boost Control Solenoid 80PSIg Internal MAP Sensor
AEM X-Series Tru-Boost Controller Gauge w/ Boost Control Solenoid 80PSIg Internal MAP Sensor
Couldn't load pickup availability
The Tru-BoostX Boost Controller Gauge delivers all of the features you loved about the original only now with AEMnet for data logging and a big, fat internal MAP sensor that can handle boost pressures up to 80 PSI of boost.
The Tru-BoostX Boost Controller gauge delivers digital accuracy but with the simplicity of a manual boost controller.

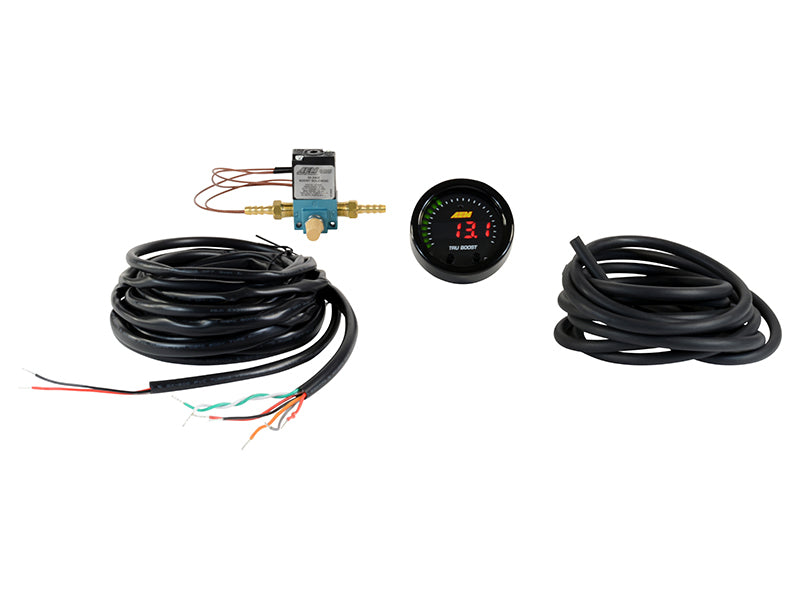

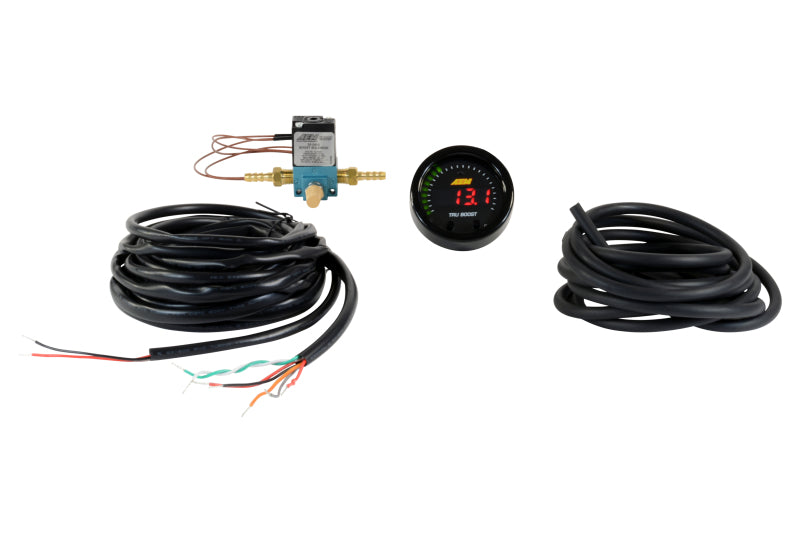

All AEM Tru-Boost gauge programming is done using the faceplate buttons and no laptop is required. AEM's specially designed Boost Control Solenoid and all necessary hardware is included.
Program Two Boost Levels + Scramble Boost Setting
Program two boost modes for different levels of performance (up to 80PSIg internal MAP sensor), and program a time-based scramble boost setting that is controlled using a switched input. You can also turn off the controller and use the gauge as a display.
Change Wastegate Open Pressure
Ideal for reducing boost spikes and improving spool up.
Display Boost Levels in PSIg (PSI), BAR or kPa (PAS)
See your boost in the units you prefer, and scale the 24 outer LEDs to match your peak boost levels for the perfect sweeping motion.
Set Alarms and Display Peak Boost
Set the 24 green outer LEDs to flash based on boost pressure so you are alerted to an overboost condition. A ground output is included for triggering an optional LED warning light. Select the "B" button to see peak boost level and clear the value using the menu.
Overboost Protection Built In
Protects your engine from an overboost condition by shutting the boost control solenoid off until it is reactivated by you through the buttons on the faceplate.
Integrated Error Protection
Alerts you to a fault if the boost control solenoid is shorted or disconnected so you are never left guessing whether the Tru-BoostX is operational.
Datalog using AEMnet CAN bus
Outputting channels over AEMnet provides so much more than just boost pressure! Send 13 channels of data over a 2-wire connection, including boost pressure, peak boost, boost target, boost scramble duty, overboost status, wastegate crack pressure, boost control solenoid status and more.
Features
- Slim 0.825" overall gauge depth and 0.200" cup depth - mount them virtually anywhere!
- 2-1/16th (52mm) gauge diameter for easy mounting in gauge pods
- Programmable center LED is 87% larger than original AEM gauges
- 24 green outer LEDs for quick reference to engine parameter
- A boost display gauge and boost controller in one!
- Easy to program - no laptop required
- On-board 80PSIg MAP sensor-no upgrade kit needed for high boost vehicles
- Two boost level settings and scramble boost setting
- AEMnet CANbus-enabled for transmitting data to EMS or Data Logger
- Wastegate open pressure setting for controlling boost spikes and faster spool
- Display boost levels in PSI, BAR or kPa
- Overboost protection and programmable alarms, ground output for optional LED warning light
Application: Universal — verify fitment for your setup. This is a performance/fabrication component not tied to a specific vehicle year/make/model.
Manufacturer Part Number: 30-0352
Images are for illustrative purposes only. Actual product may vary.
Emissions Note: This product is not CARB approved and is not legal for sale or use on pollution-controlled motor vehicles in California, or in states that have adopted California emission standards. It is intended for off-road / racing use only. It is the responsibility of the installer/end-user to ensure compliance with all applicable federal, state and local emissions regulations.
