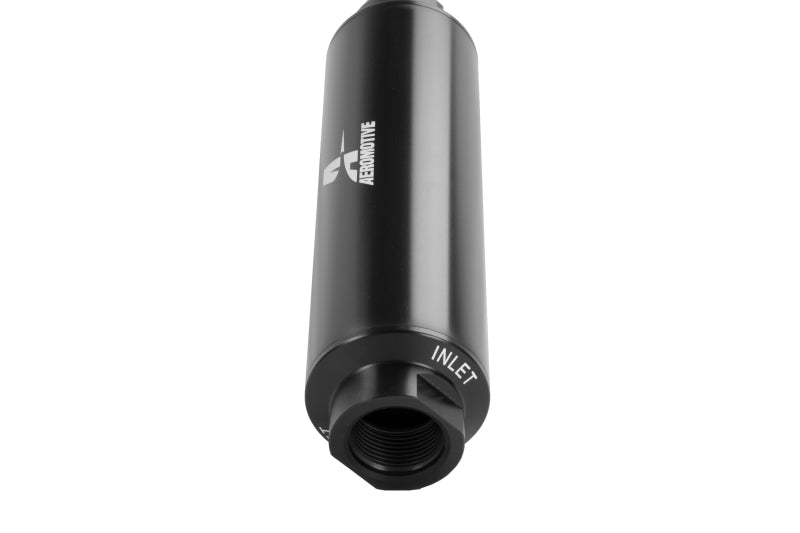

Aeromotive In-Line Filter - AN-16 100 Micron SS Element Extreme Flow
Aeromotive In-Line Filter - AN-16 100 Micron SS Element Extreme Flow
Couldn't load pickup availability
Extreme Flow 100-m SS AN-16 ORB Fuel Filter Max flow filtration for Brushless Gear and Mechanical Fuel Pumps High-flow Stainless Steel filter ideal for broad fuel applications including Alcohol Methanol, Ethanol, Gasoline and Diesel fuel using mechanical or electric fuel pumps up to 32-GPM. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications. Suitable prefilter with mechanical or electric pumps up to 12-GPM. Suitable post filter for mechanical injection systems up to 32-GPM mechanical pumps.
- High-flow, 100-micron Stainless Steel cleanable element.
- Ideal for Gasoline, Alcohol Methanol, Ethanol and Diesel fuels.
- Prefilter for up to 12-GPM mechanical or electric fuel pumps.
- Post filter for 32-GPM mechanical fuel injection systems.
- Flows 6,000 lb/hr (12-GPM) with a pressure drop under 1-PSI.
- Flows 12,000 lb/hr (32-GPM) with a pressure drop of 2-PSI.
- AN-16 ORB ports. Fittings available to adapt these filters from AN-16 down to AN-08 line sizes. (see Fittings & Adapters).
- Extreme-Flow filters feature a tough, Hard-Coat Black finish.

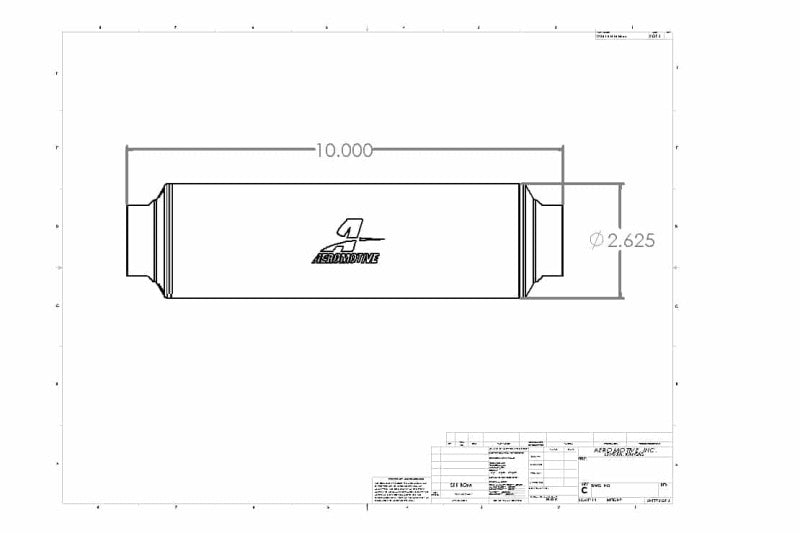

- 10" long x 2-5/8" diameter.

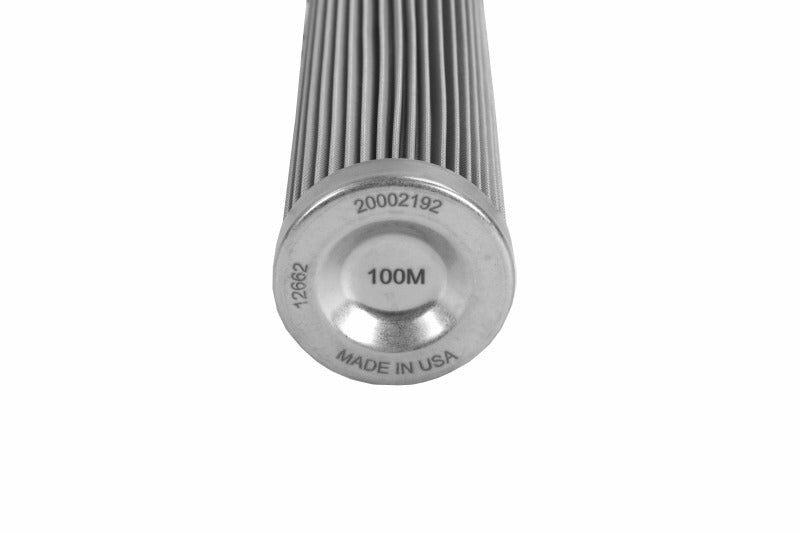

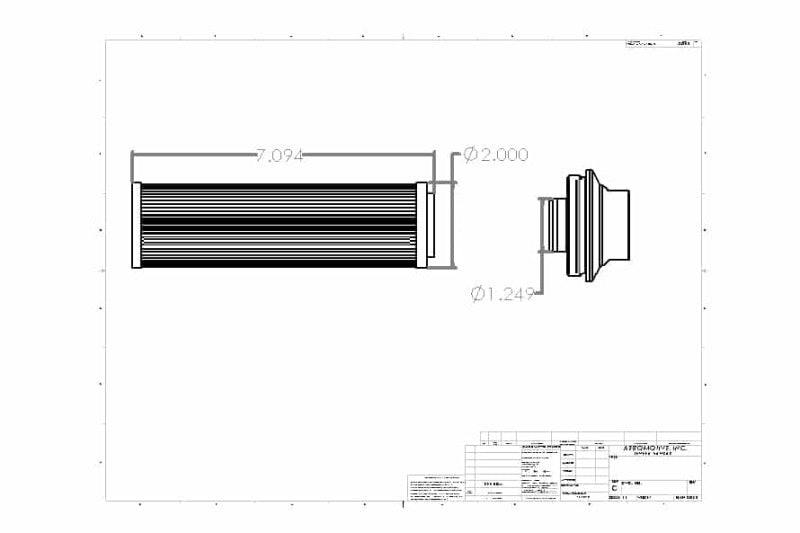

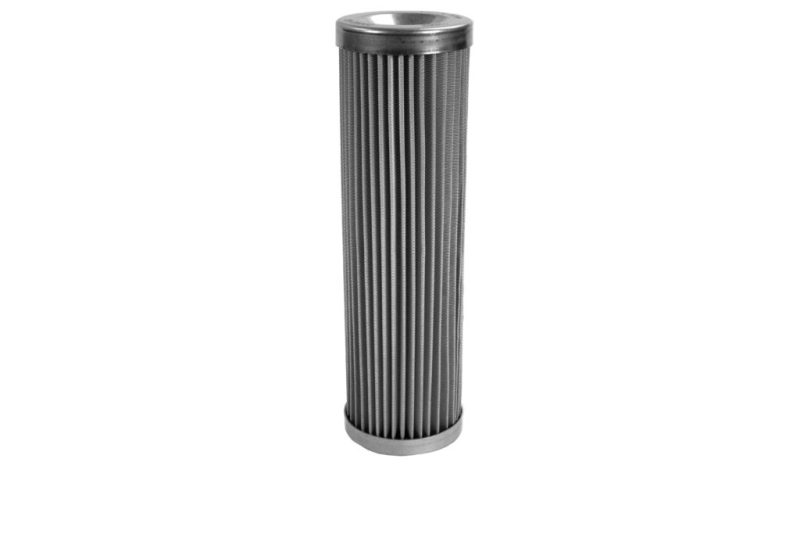

- Replacement element P/N 12662
Manufacturer Part Number: 12362
⚠ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
