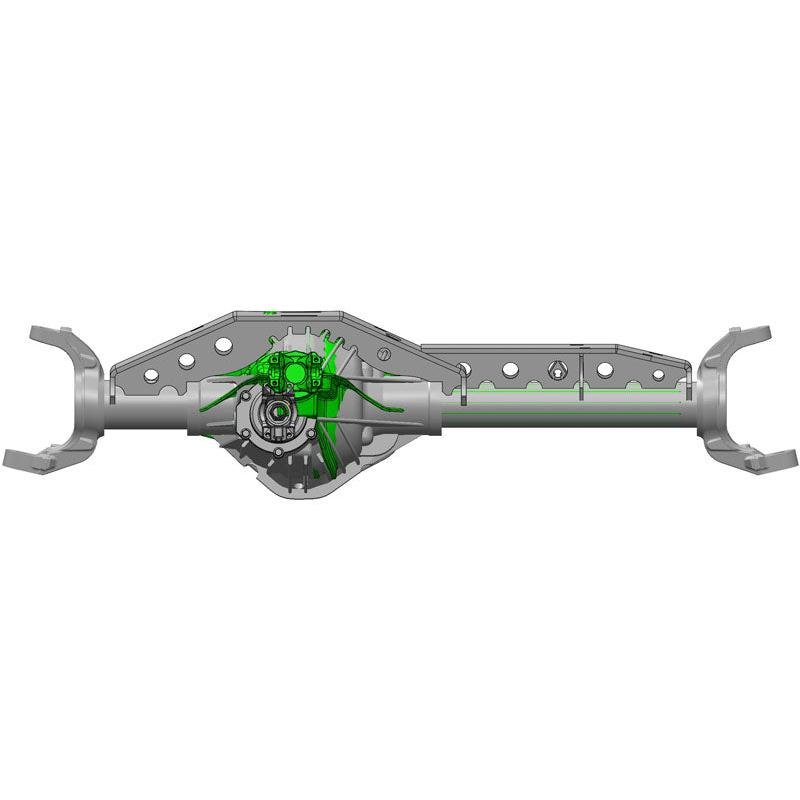

Artec Industries TR1408 14 Bolt Front Axle Truss for 1970-1986 Chevrolet K20 / K30

Create a robust 1-ton front axle with Artec Industries 14 Bolt Front Truss, designed for strength, versatility, and optimal link mounting. Accommodates various pinion angles and drop configurations. Designed to endure serious abuse, this heavy-duty truss system reinforces your entire axle while providing a flat surface for upper link mounting. Featuring a 3/8" thick truss top and 1/4" thick gussets, the unique design strengthens both the axle and link mounting surface. Combining two products (14 bolt short rear truss and modular truss end), this system accommodates either passenger or driver side drop 14 bolt front axles. The truss supports pinion angles from 7 to 20 degrees with potential trimming for further adjustments.

Key Features

• Modular Truss Ends: driver or passenger side differential options
• Custom width axles: easy trimming with Modular Truss End3/8" steel truss top, 1/4" gussets: CNC cut, bent for excellent fitment
• Low profile truss: ideal geometry for link joint mounting (7-10 inches)
• Interlocked 1/4" gussets: maximum strength and easy assembly
• Low profile design: stronger, sleeker axle, minimal vehicle interference
• Option to add Pinon Guard with Bridge (trim to fit)

Fits These Vehicles

• Fits 1970-1974 Chevrolet K20 Pickup
• Fits 1970-1974 Chevrolet K30 Pickup
• Fits 1975-1986 Chevrolet K20
• Fits 1977-1986 Chevrolet K30

Confirm the model year, the body style and the part number against your vehicle before ordering.

Installation typically requires cutting, welding and fabrication. Professional installation by an experienced fabricator is recommended.

Fits GM 14 bolt axles.

Specifications

• Brand: Artec Industries
• Manufacturer Part Number: TR1408
• Type: Axle Truss
• Material: Steel
• Country of Origin: United States
• Condition: New

Images are for illustrative purposes. The product you receive may differ in finish or packaging from the photograph.
