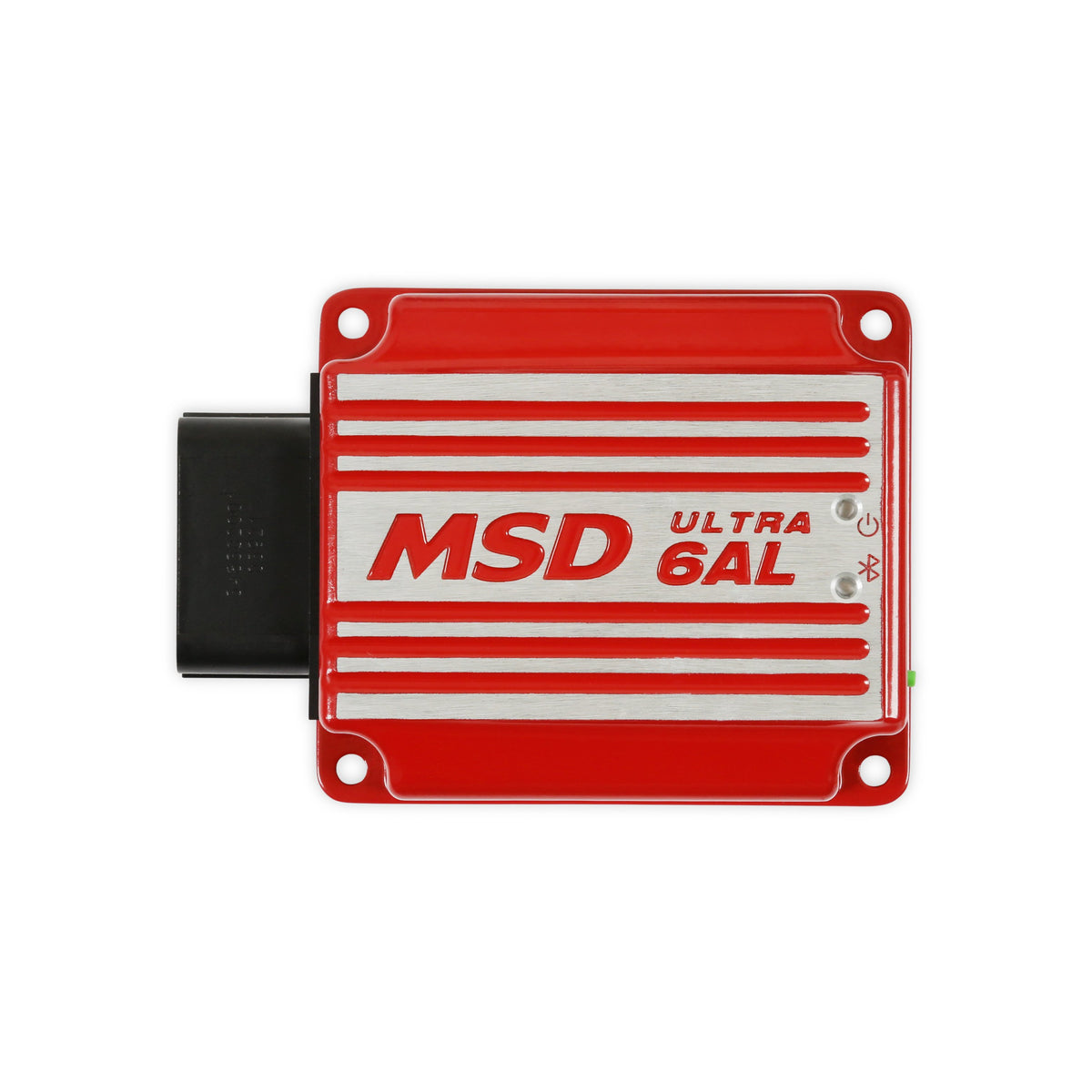

MSD 6423 Ultra 6AL Ignition Control - Red
MSD 6423 Ultra 6AL Ignition Control - Red
Couldn't load pickup availability
Genuine MSD part.
The Ultra 6AL greatly expands on the capabilities of the 6-series line with three rev limiters (Launch, Burnout, and Step Retard activation) and is wirelessly controlled from a smart phone via the "MSD Ultra 6AL" app. A Programmable Step Retard (up to 30 degrees) is available for: On Ramp time, Off Delay, Off Ramp Time, Engine RPM for activation. High level of security connection from phone to Ignition box (encryption) including sequence in push button implementation. Mobile app available settings include Cylinder selection, Step retard value, Launch RPM value, Burnout RPM value, Max (Race) RP

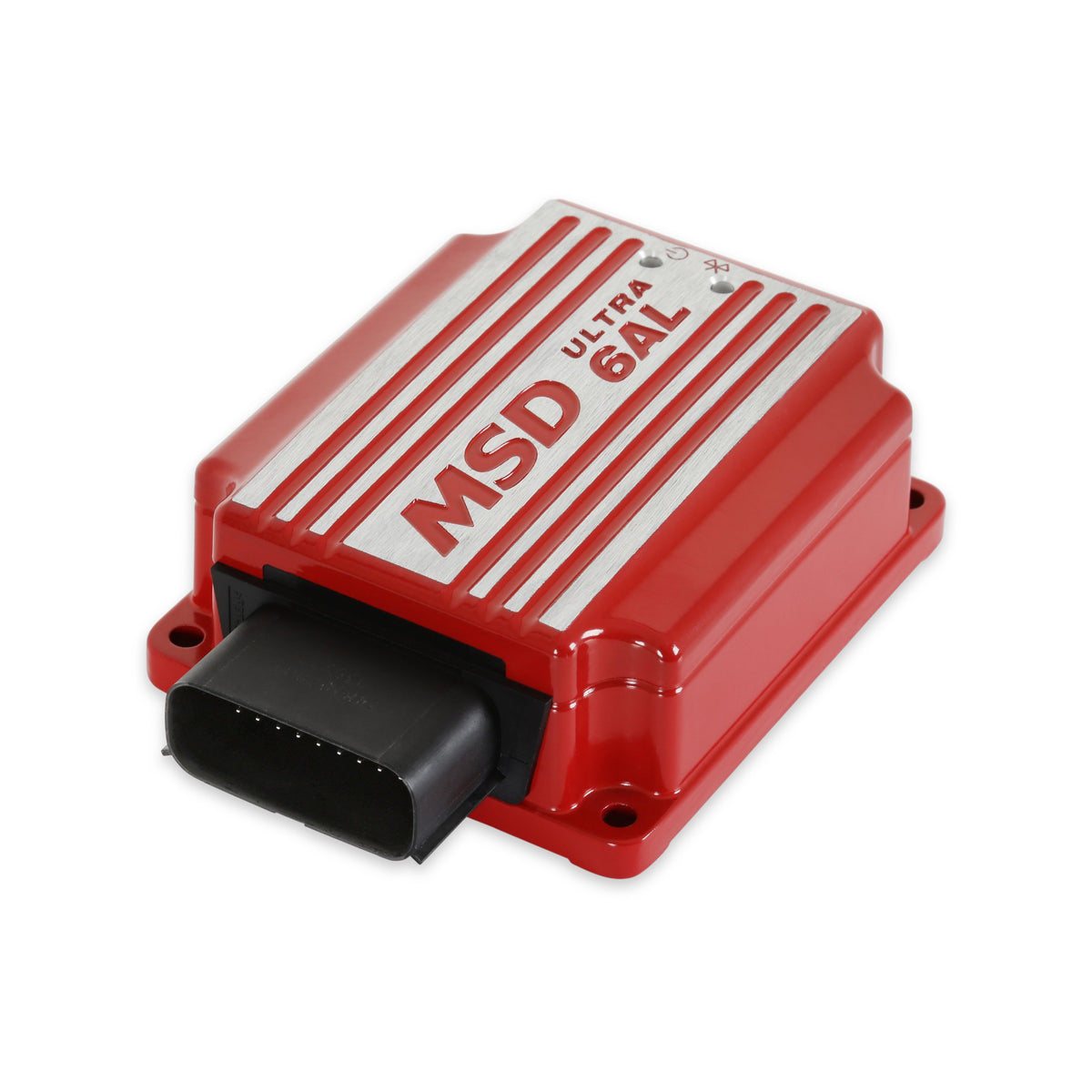

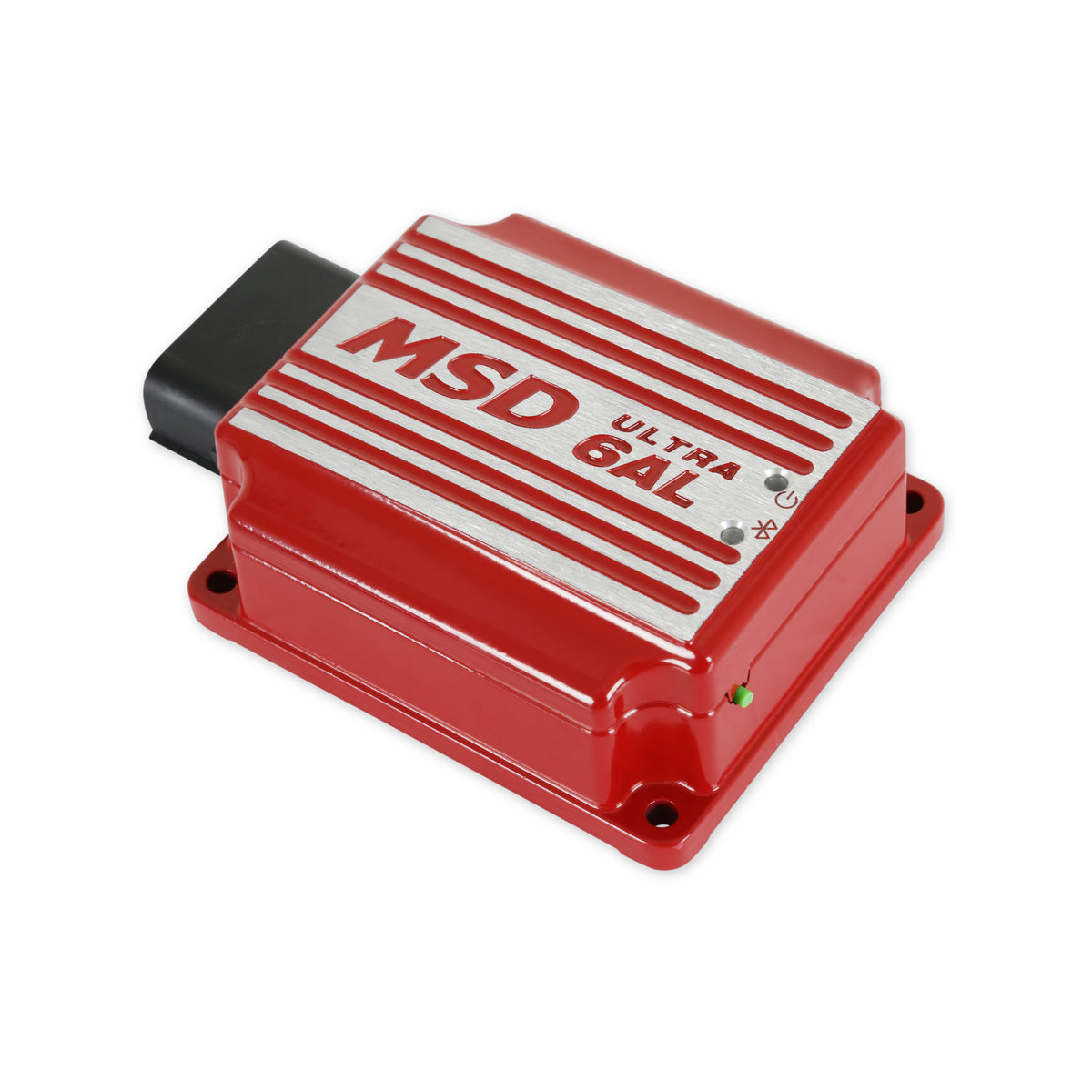

MSD ignition control box, part number 6423, supplied new.
Key Features
- High conversion efficiency ensures minimal heat generation and maximum spark energy output with less current draw from the battery - (Highly efficient Ignition, minimum heat and max spark energy with less current draw)
- Tach Output
- MSD CAN communication for easy connectivity to MSDView using a CAN MSD Hub and Power Grid USB or CAN-USB Bridge 89982 product
- Increase spark series duration lasts for 18 of crankshaft rotation
- 15,000 RPM with 14.4 Volts
- Mobile app available settings: Cylinder selection, Step retard value, Launch RPM value, Burnout RPM value, Max (Race) RPM Value, Start retard value
Fitment
- Universal application — check the specification below
This is a universal component sold by specification rather than by vehicle, so there is no year/make/model list for this product. Match the part number and the specification below against your own engine before ordering.
Specifications
- Brand: MSD
- Manufacturer Part Number: 6423
- Item Type: Electrical
- Color: Red

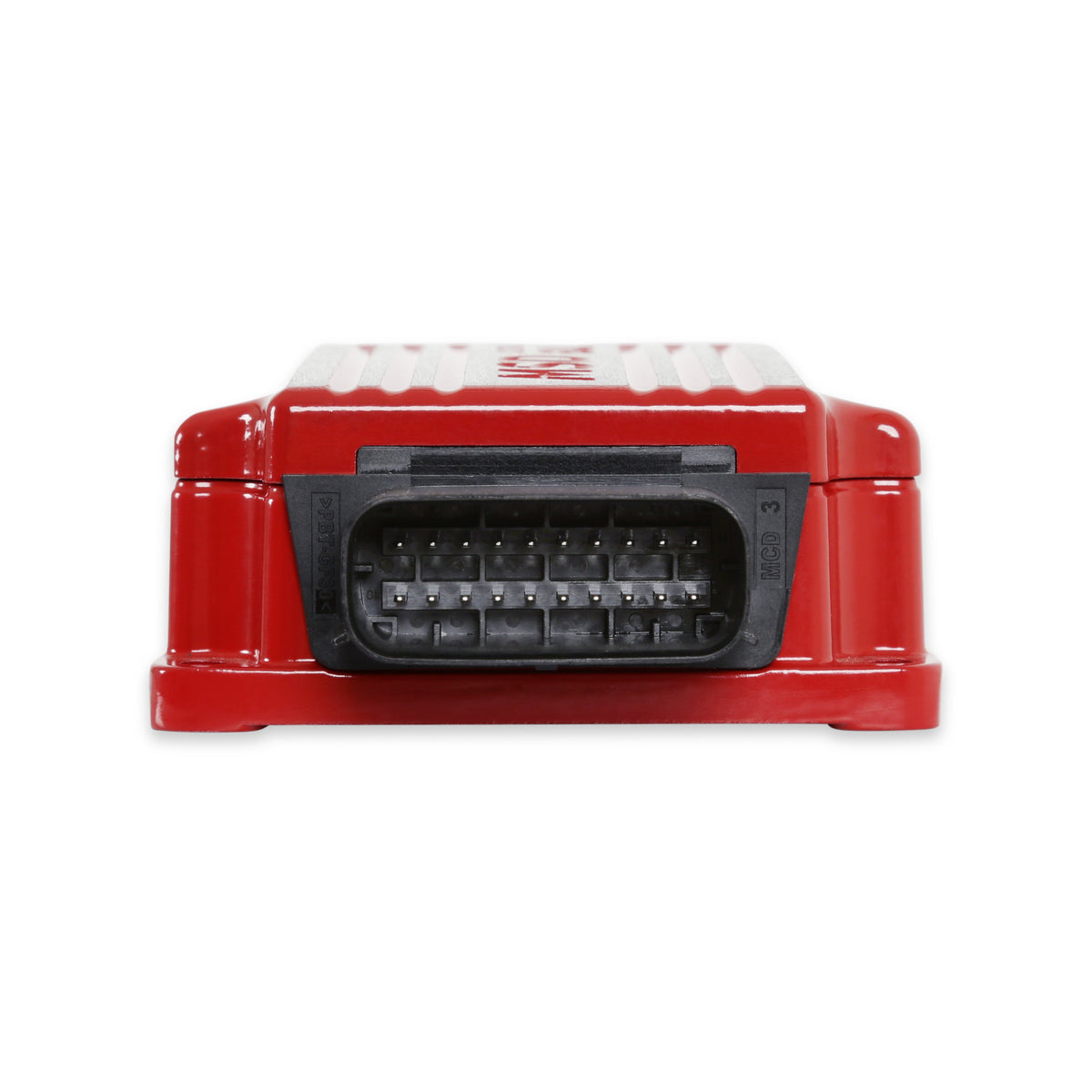

- Connector Gender: Female
- Connector Quantity: 1
- Current Draw: 1000 RPM
- Grade Type: Performance
- Ignition Box Type: Ultra
- Ignition Type: Performance
- Maximum RPM: 15,000 RPM
- Mount Type: Surface Mount

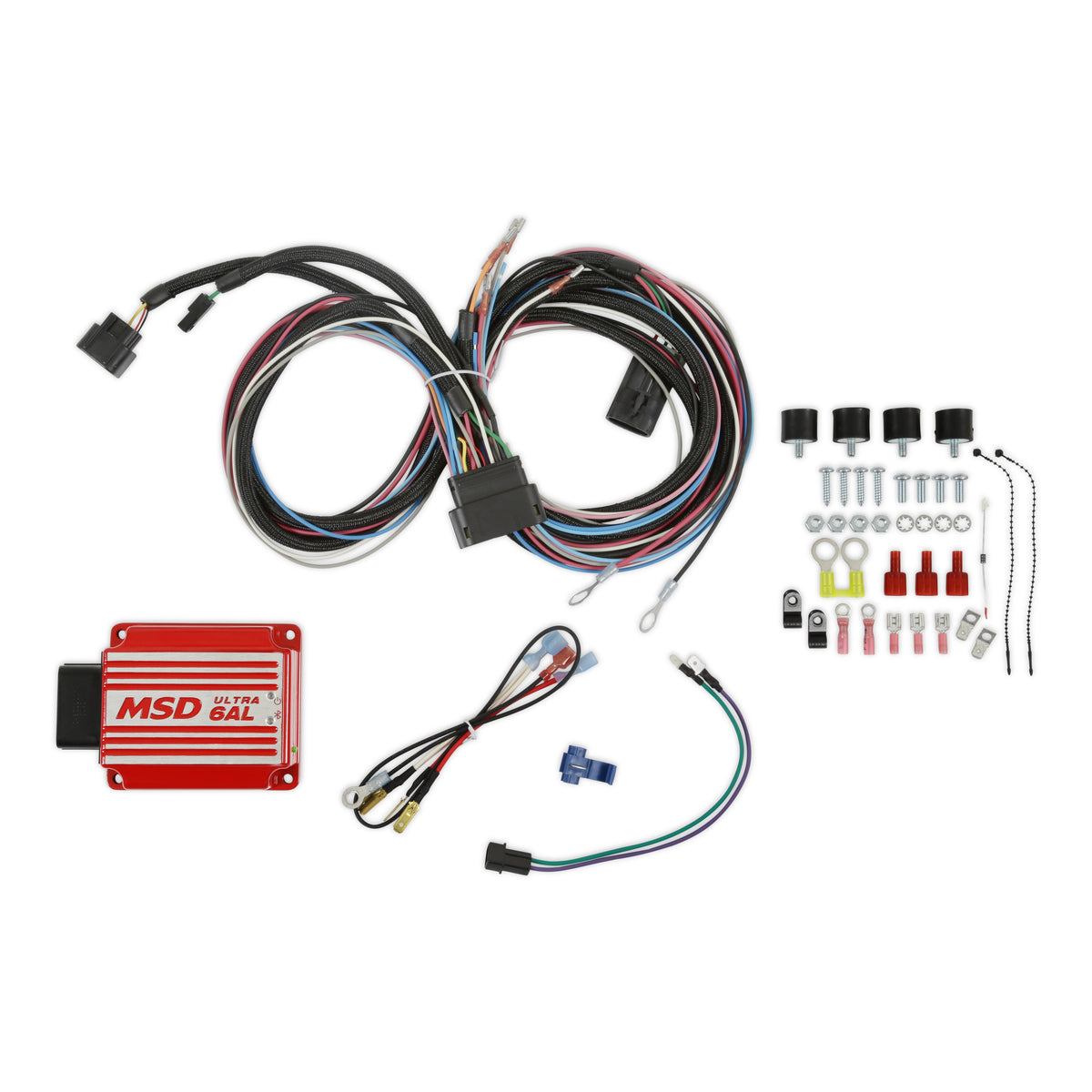

- Mounting Hardware Included: Yes
- Primary Voltage: 520-540
- Product Type: Digital 6AL Ignition Control Box w/Rev Control
- Rev Limiter: Yes
- Rotary Dials: No
- Secondary Voltage: 45,000
- Spark Energy (mJ per spark): 135 - 150
- Sub Category: Control Modules
- Terminal Gender: Male
- Terminal Quantity: 20
- Voltage Required: 12-15
- Country of Manufacture: United States
- Condition: New
- Shipping Weight: 2.6 lb
Images are for illustrative purposes. The product you receive may differ in finish or packaging from the photograph.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
