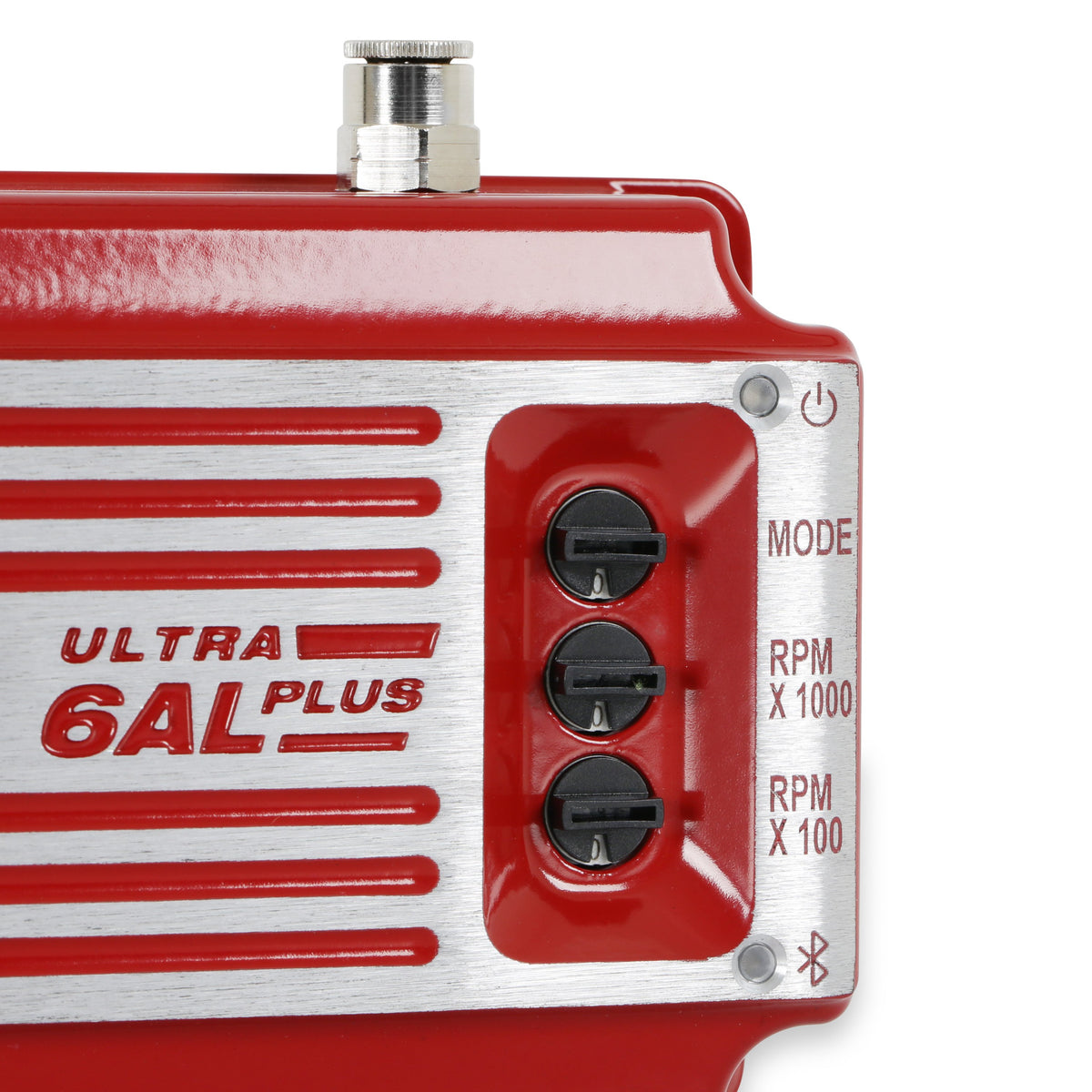

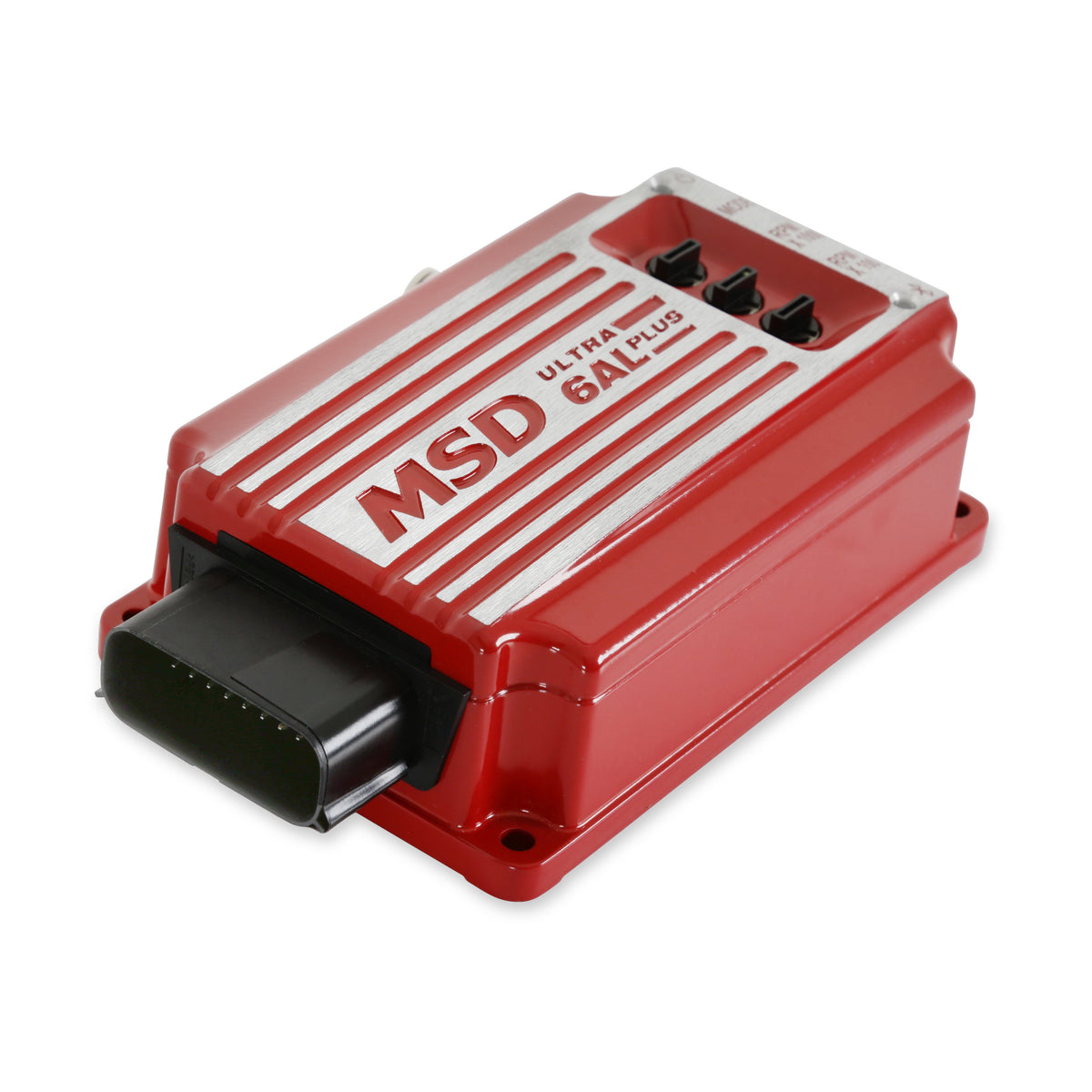

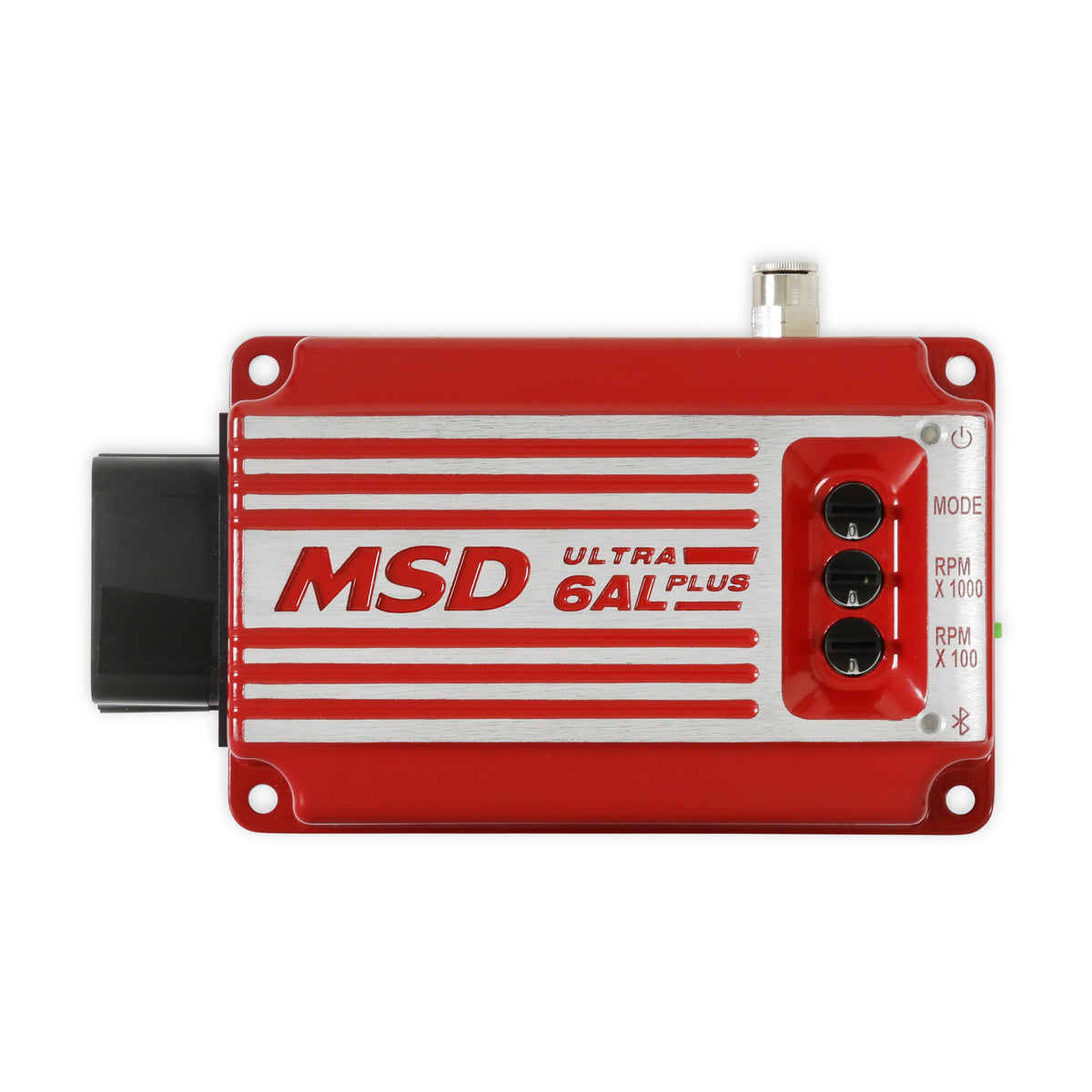

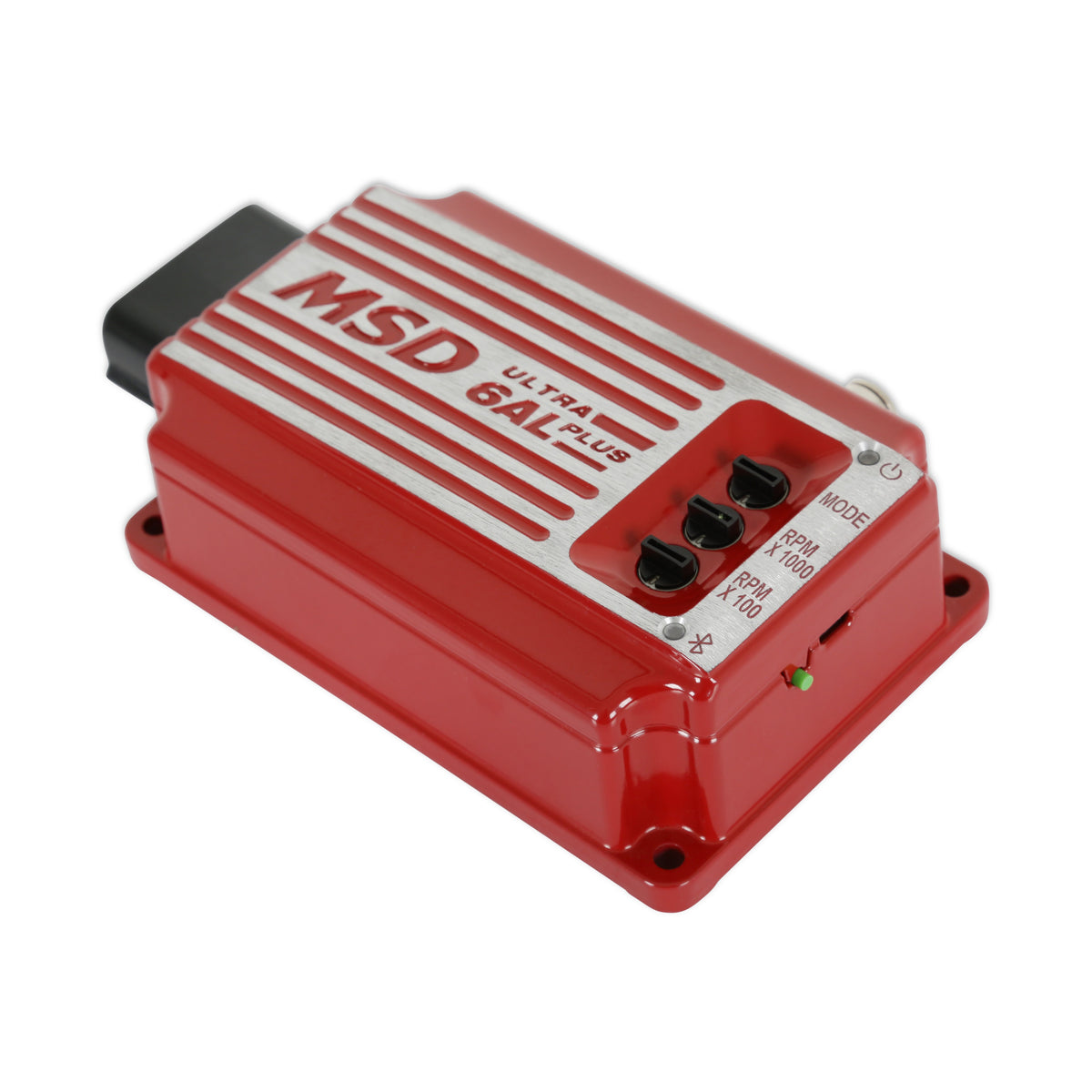

MSD 6523 Ultra 6AL Plus Ignition Control - Red
MSD 6523 Ultra 6AL Plus Ignition Control - Red
Couldn't load pickup availability
Genuine MSD part.
The Ultra 6AL Plus features boost dependent timing control up to 400 kPA (58 PSI / 4 BAR internal sensor), making it the ultimate ignition box for moderately boosted vehicles utilizing a blow-through or draw-through carburetor. Program through the "MSD Ultra 6AL" app or MSDView software via the integrated USB port. Programmable timing curves in 2D Plots or 3D tables (RPM vs Timing vs MAP Pressure) - you can plot the 3D graph and edit a table 20x20 either from Mobile app (phone) or from MSDView (laptop). Mobile app available settings: Step retard value, Launch RPM value, Burnout RPM value, and
MSD ignition control box, part number 6523, supplied new.

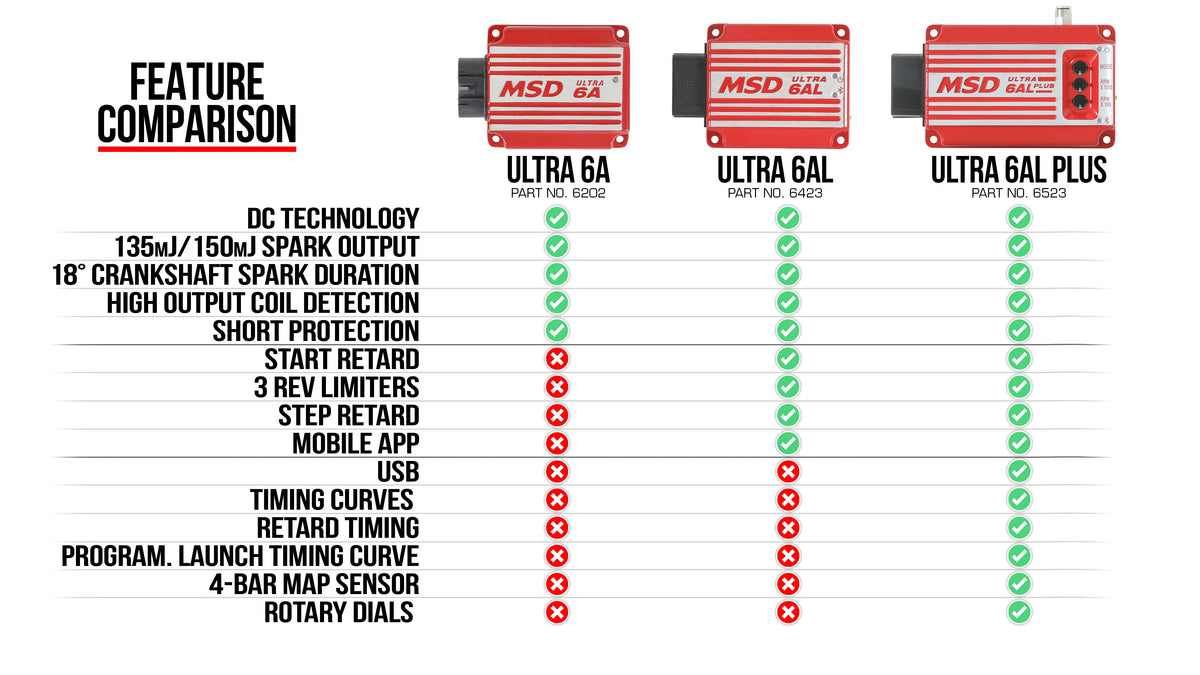

Key Features
- Fully protected against an open coil, shorted coil & open load
- Mobile app available settings: Step retard value, Launch RPM value, Burnout RPM value, Max (Race) RPM Value

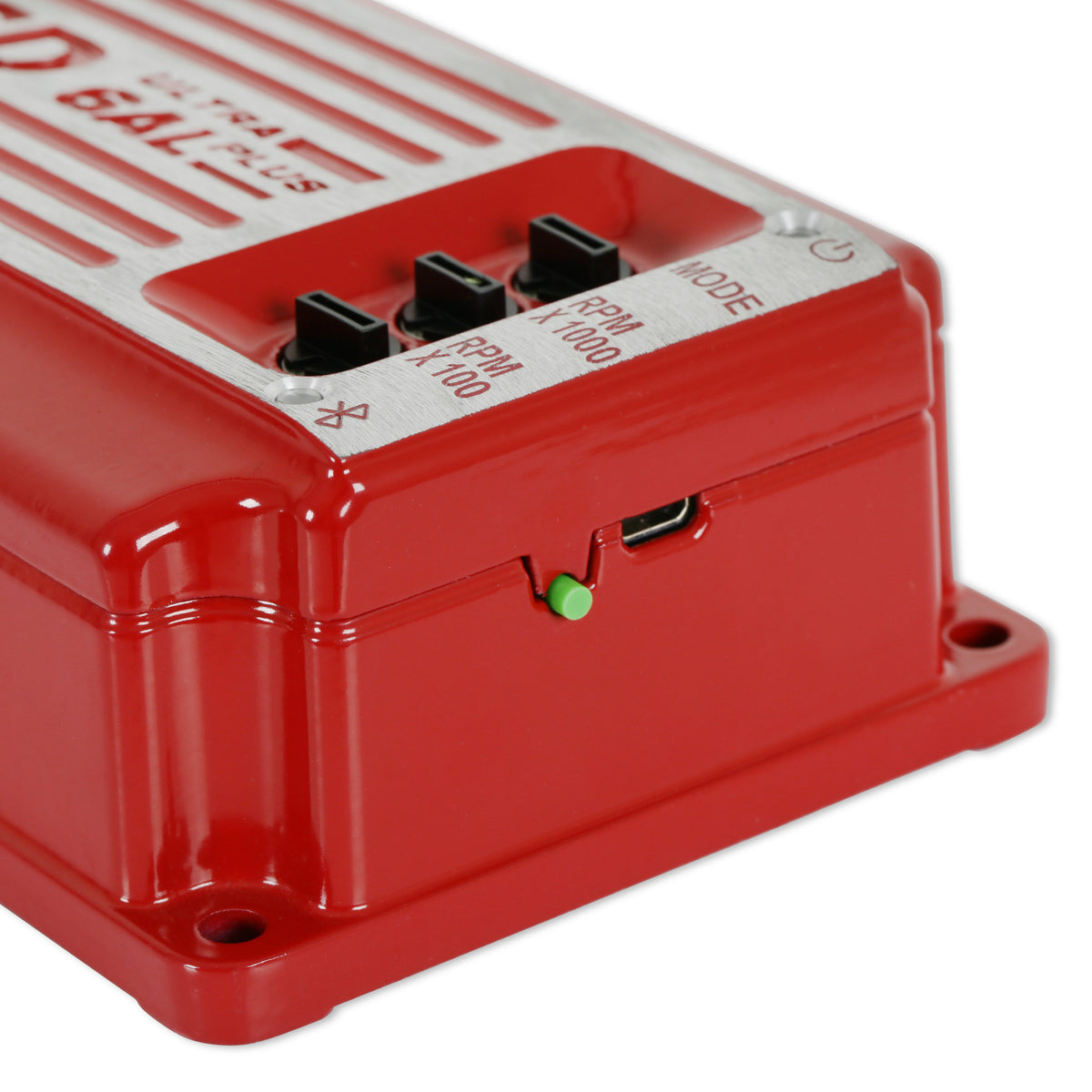

- Program through the “MSD Ultra 6AL” app or MSDView software via the integrated USB port
- 12-15 Volts, 7 Volt Start
- Alerts and monitors available

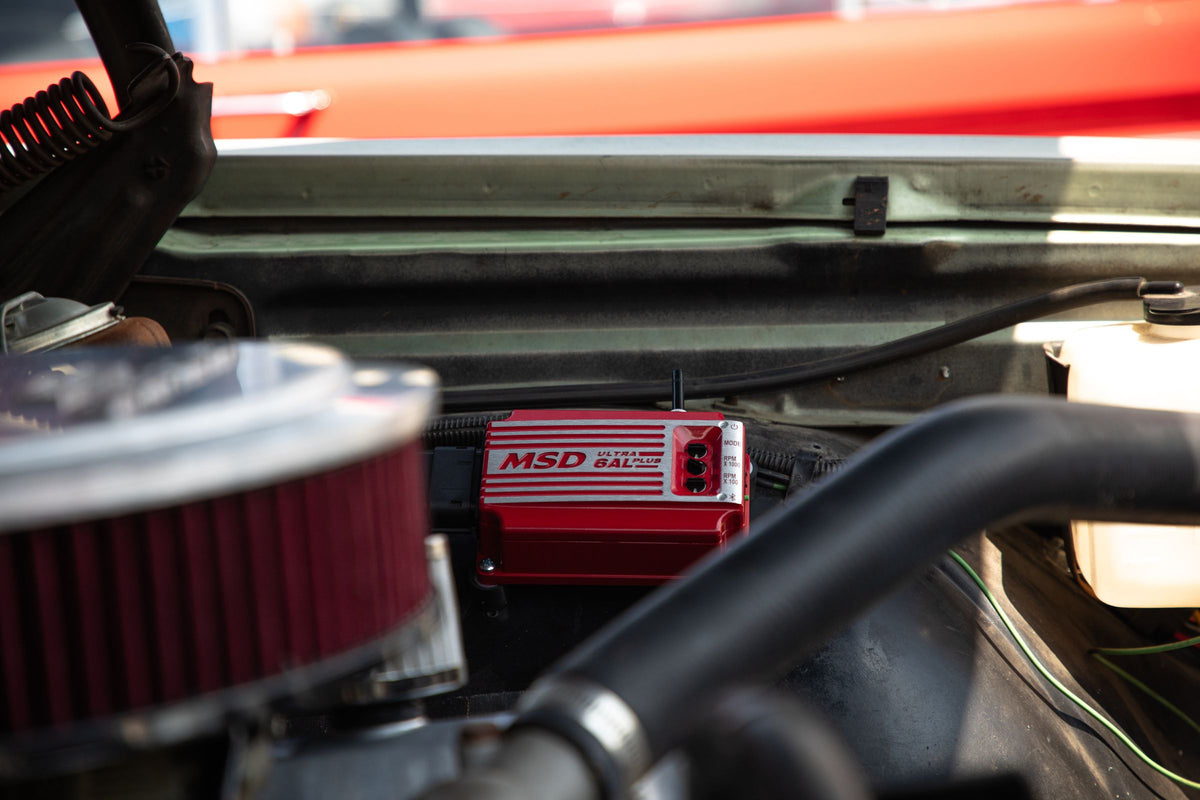

- Easily installs on 4, 6, 8-cylinder engines with distributors
Fitment
- Universal application — check the specification below
This is a universal component sold by specification rather than by vehicle, so there is no year/make/model list for this product. Match the part number and the specification below against your own engine before ordering.
Specifications
- Brand: MSD
- Manufacturer Part Number: 6523
- Item Type: Electrical
- Color: Red

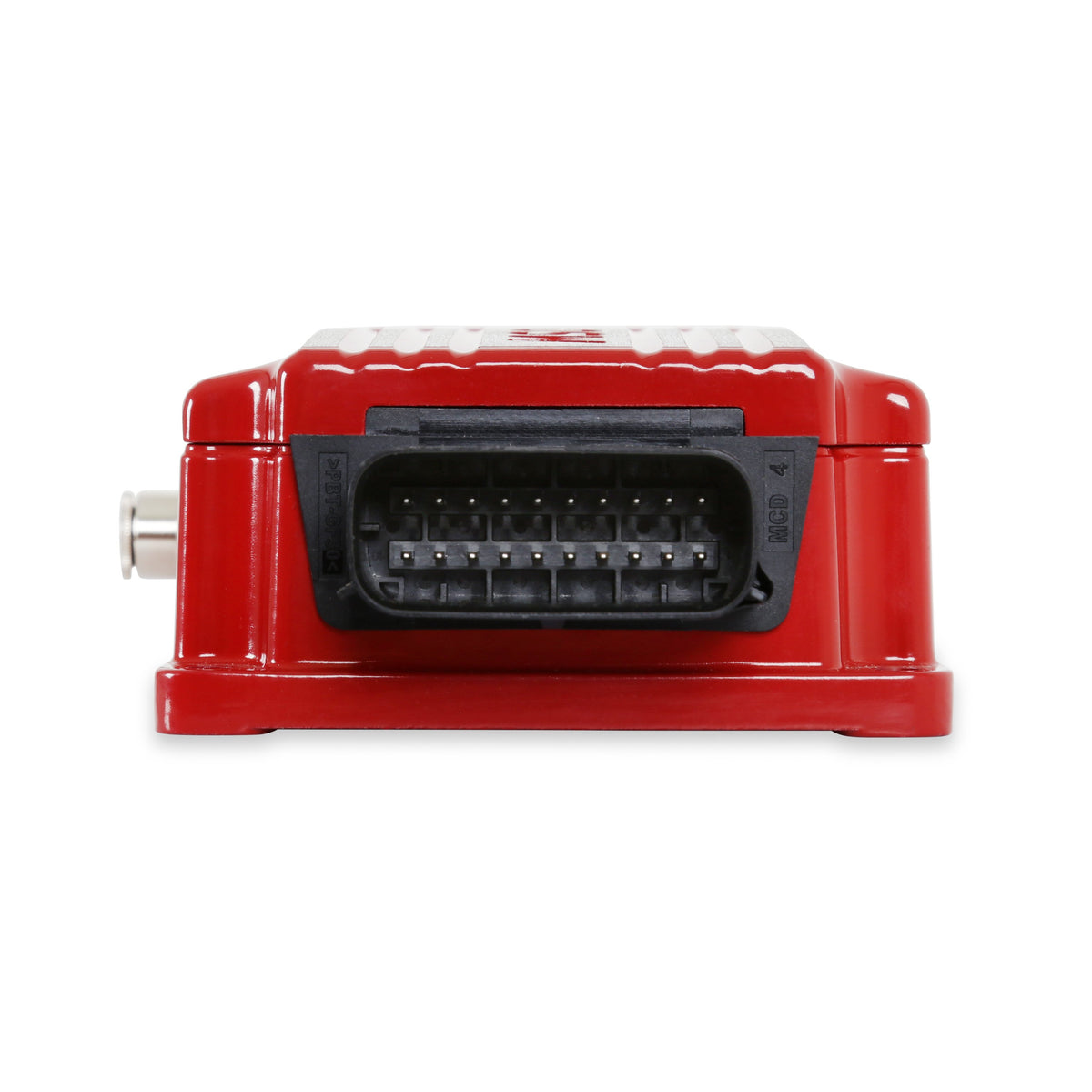

- Connector Gender: Female
- Connector Quantity: 1
- Current Draw: 1000 RPM
- Grade Type: Performance
- Ignition Box Type: Ultra Plus
- Ignition Type: Performance
- Maximum RPM: 15,000 RPM
- Mount Type: Surface Mount

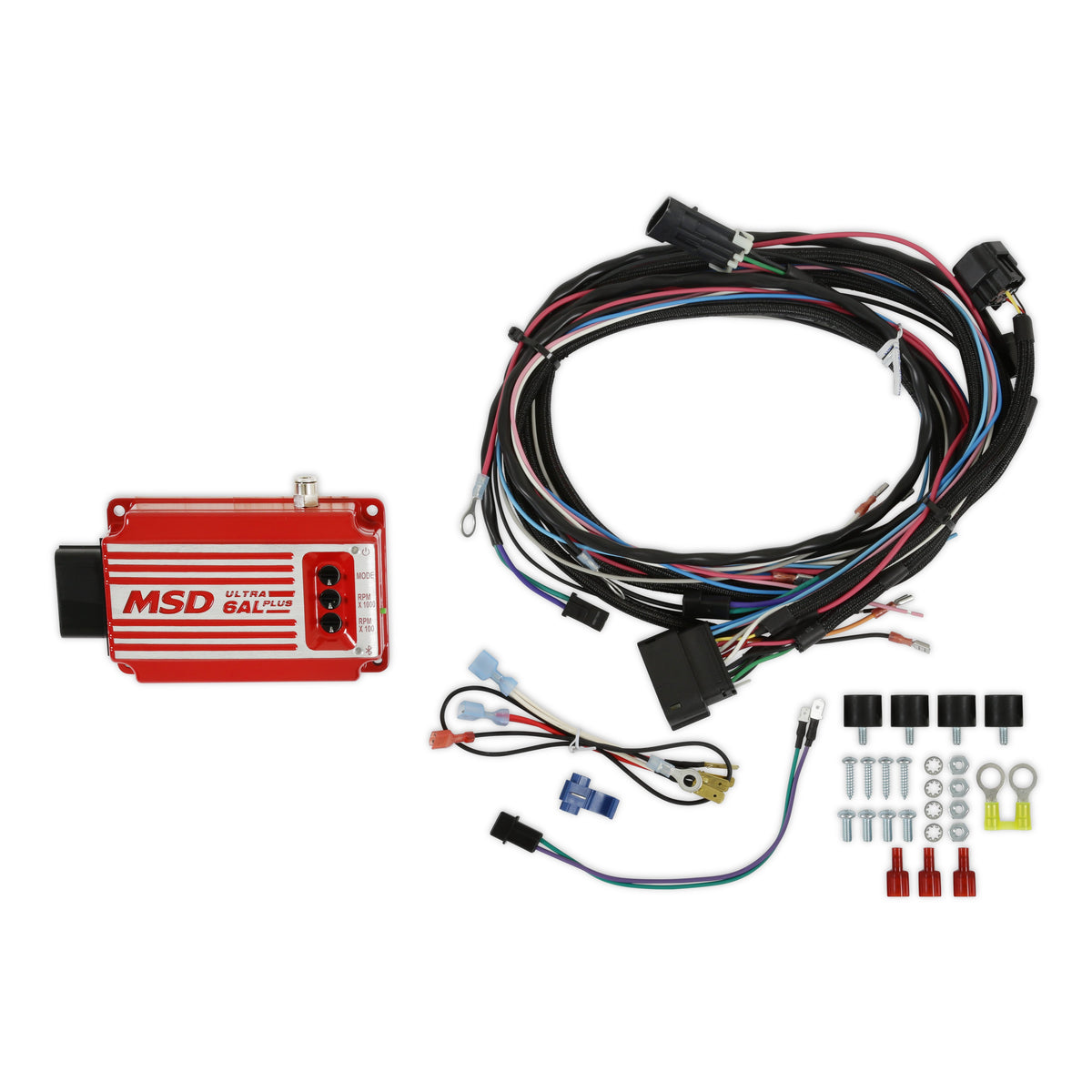

- Mounting Hardware Included: Yes
- Primary Voltage: 520-540
- Product Type: Digital 6AL Ignition Control Box w/Rev Control
- Rev Limiter: Yes

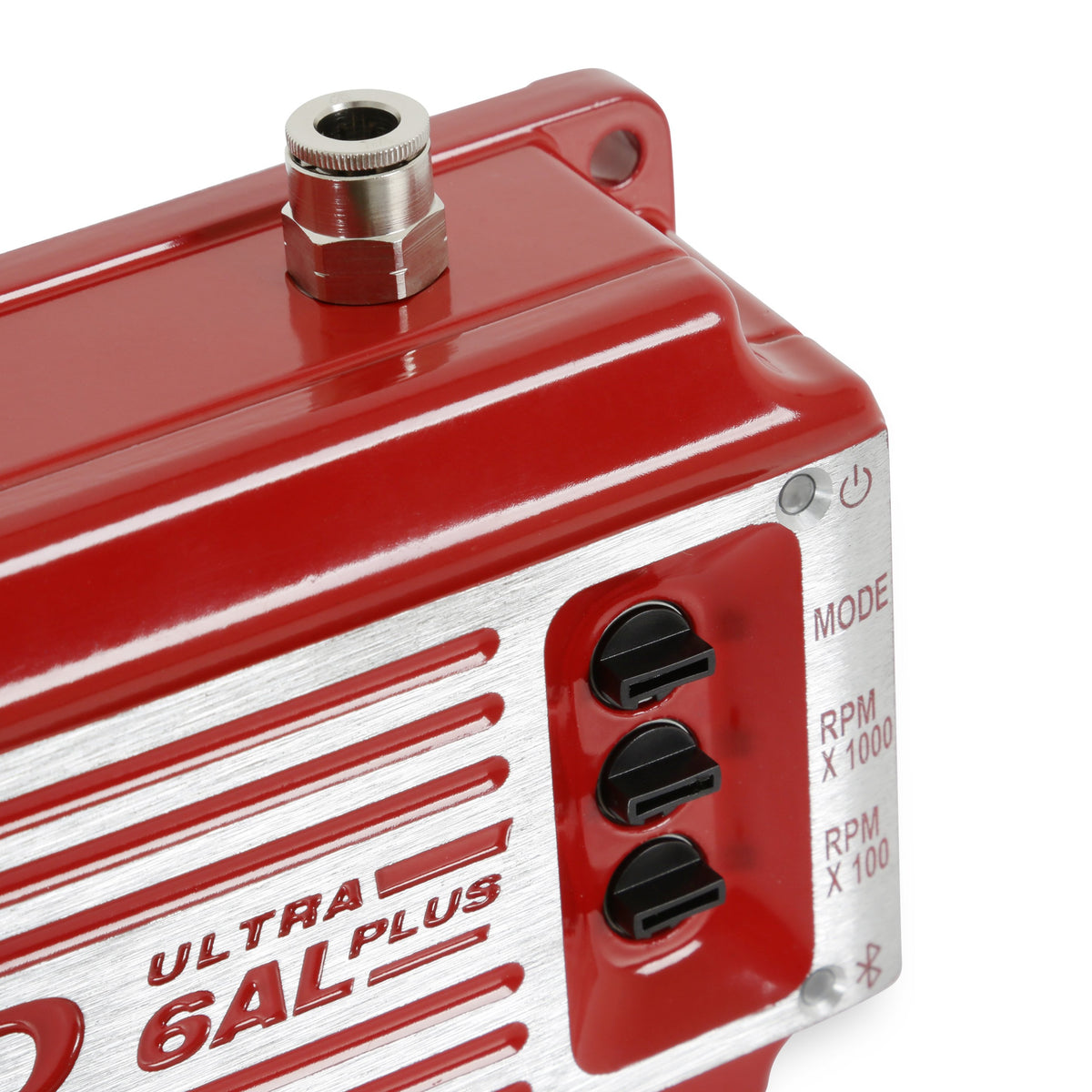

- Rotary Dials: Yes
- Secondary Voltage: 45,000
- Spark Energy (mJ per spark): 135 - 150
- Sub Category: Control Modules
- Terminal Gender: Male
- Terminal Quantity: 20
- Voltage Required: 12-15
- Country of Manufacture: United States
- Condition: New
- Shipping Weight: 2.9 lb
Images are for illustrative purposes. The product you receive may differ in finish or packaging from the photograph.
