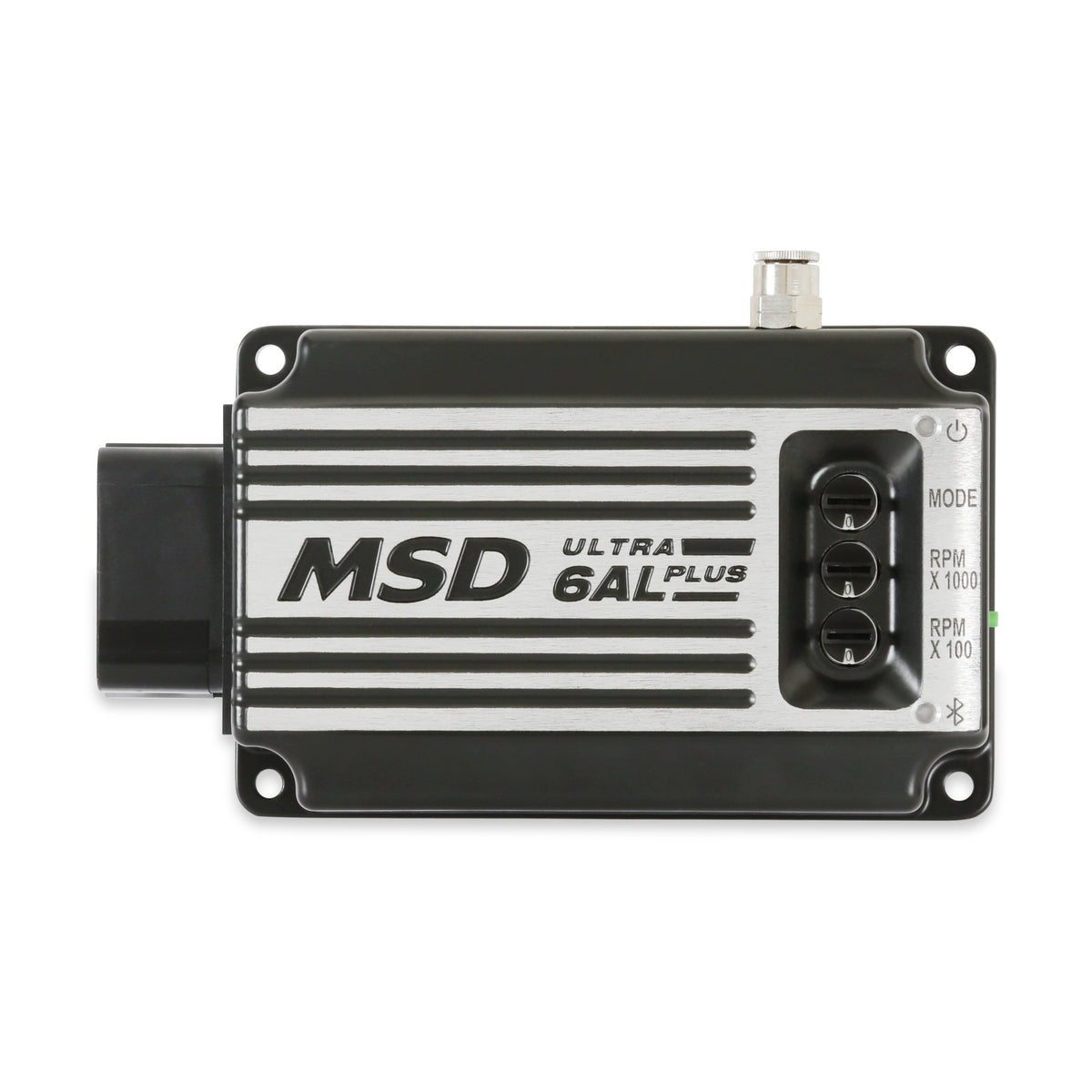

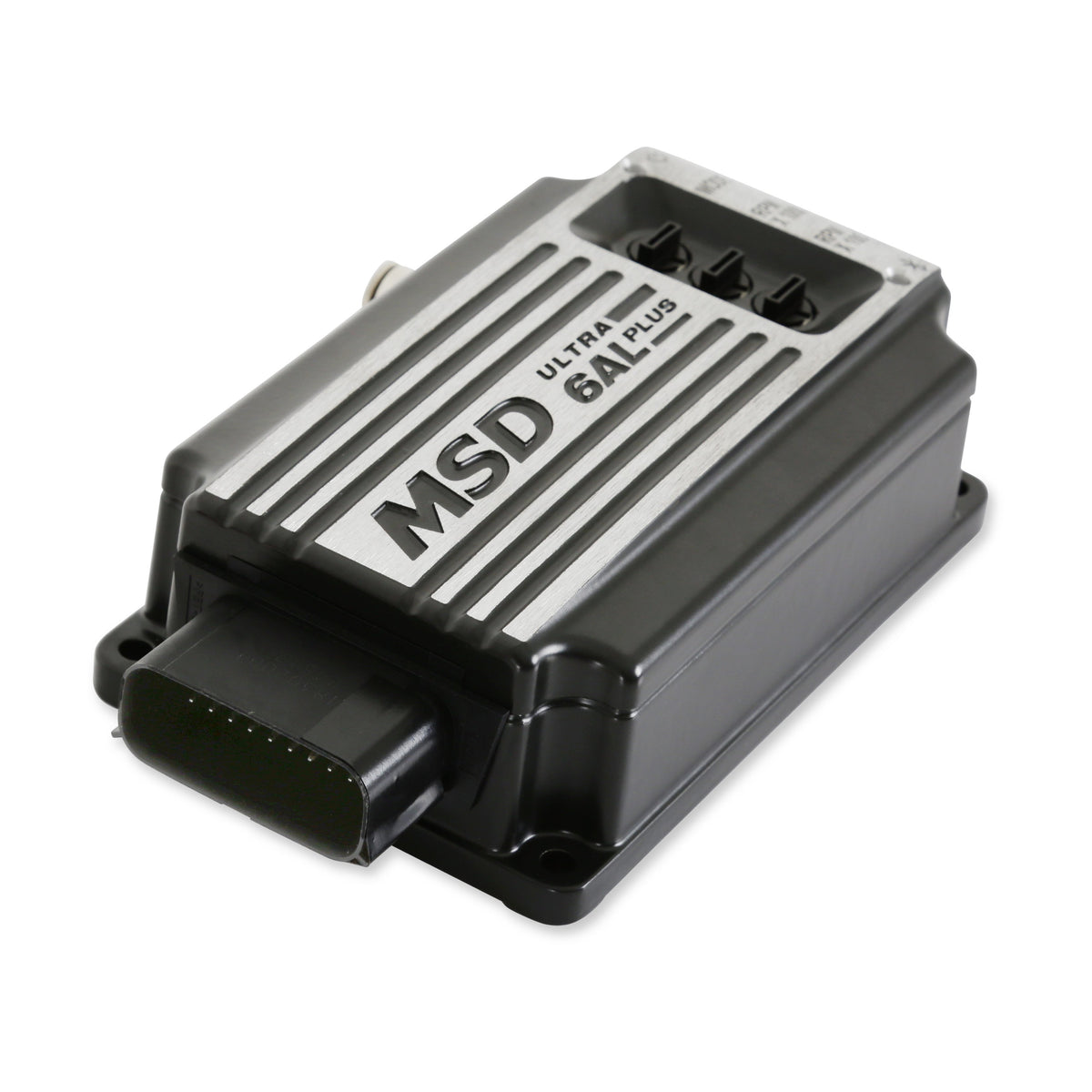

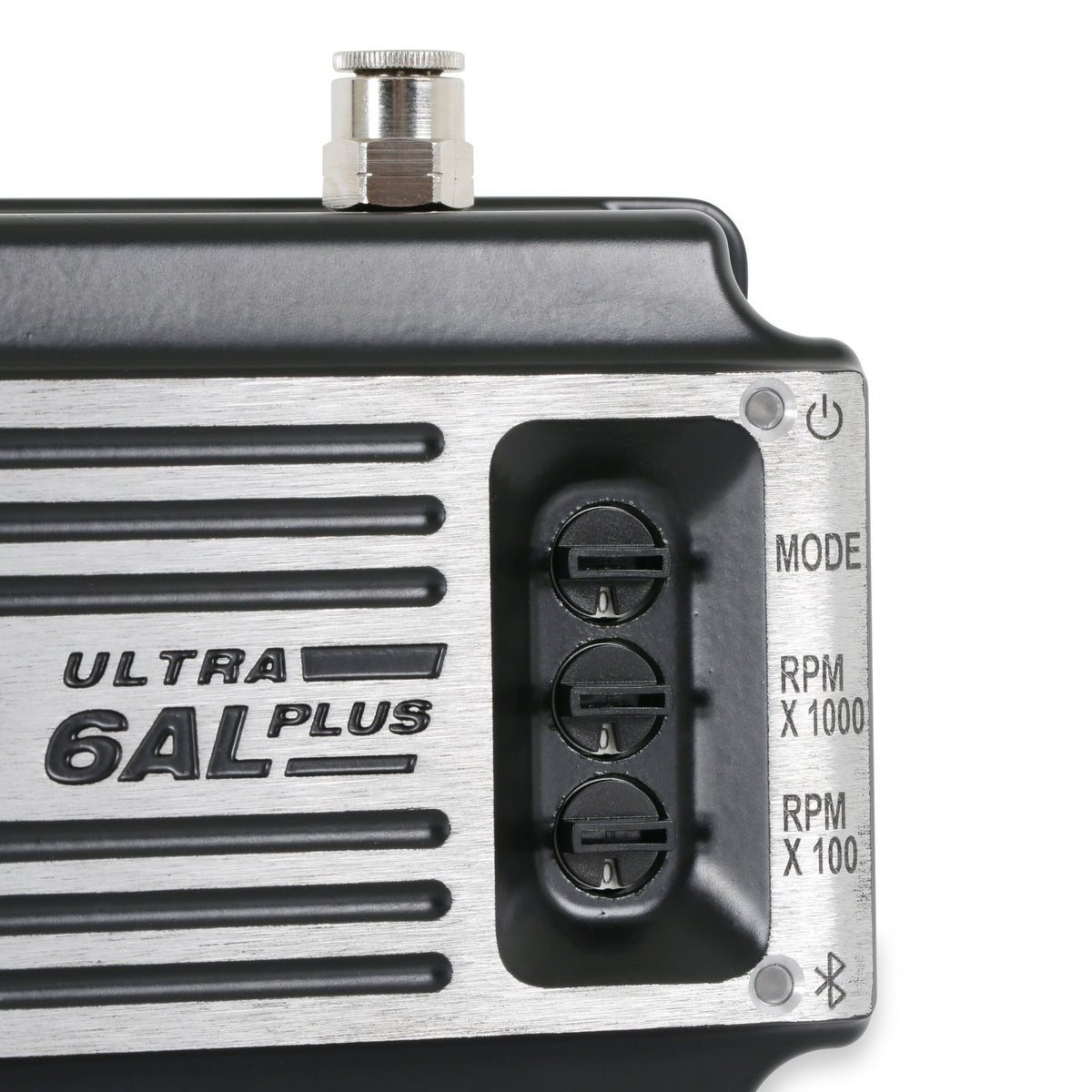

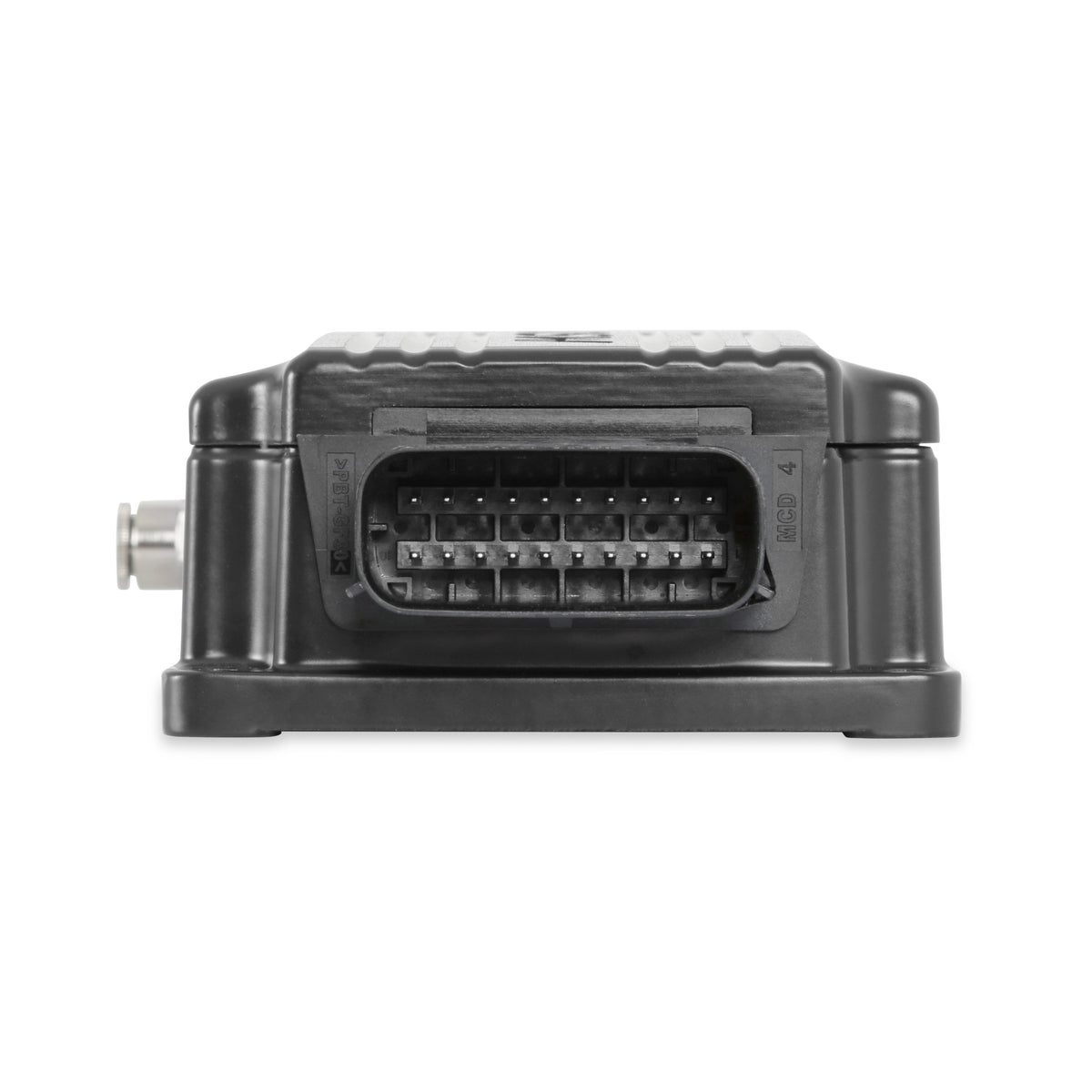

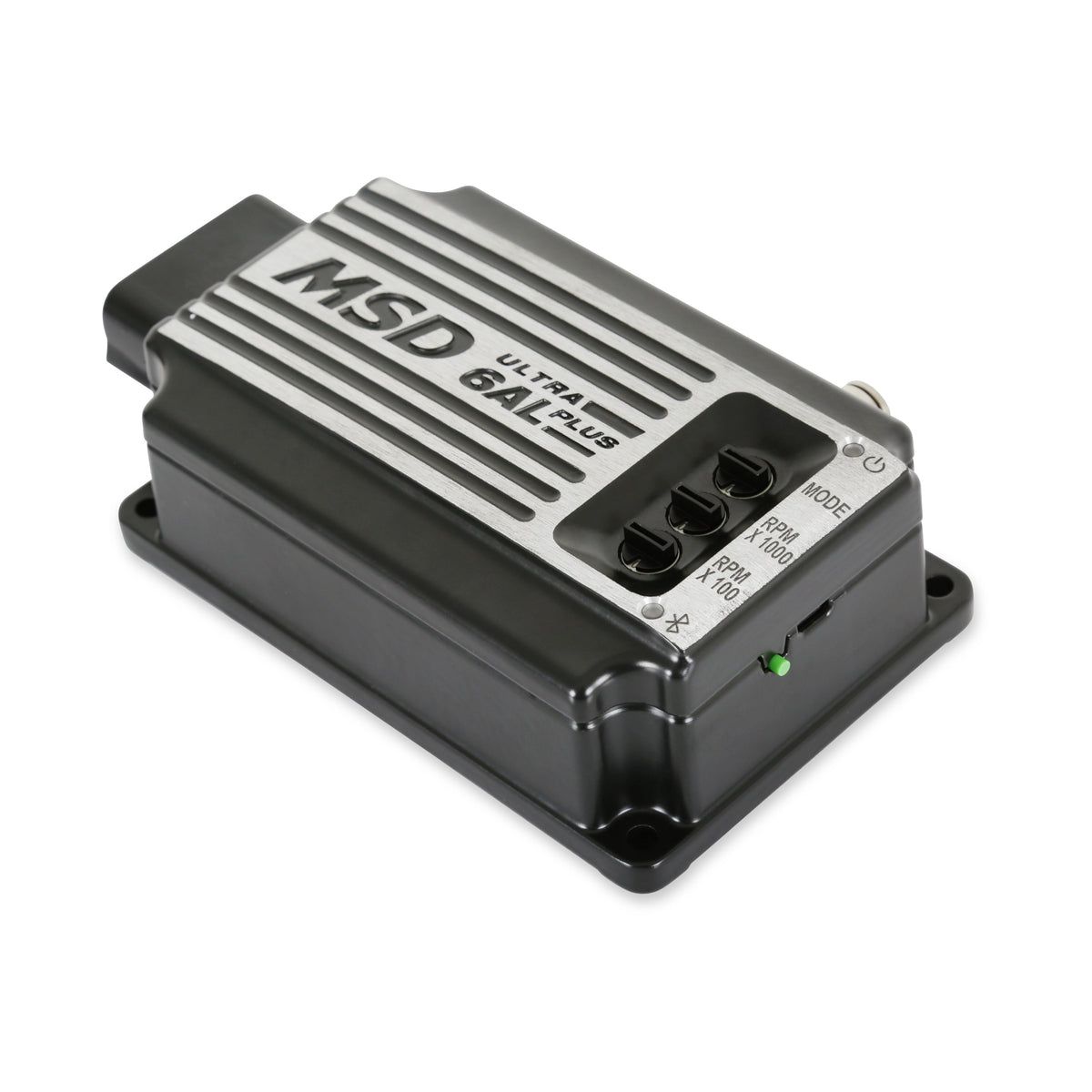

MSD 65233 Ultra 6AL Plus Ignition Control - Black
MSD 65233 Ultra 6AL Plus Ignition Control - Black
Couldn't load pickup availability
Genuine MSD part.

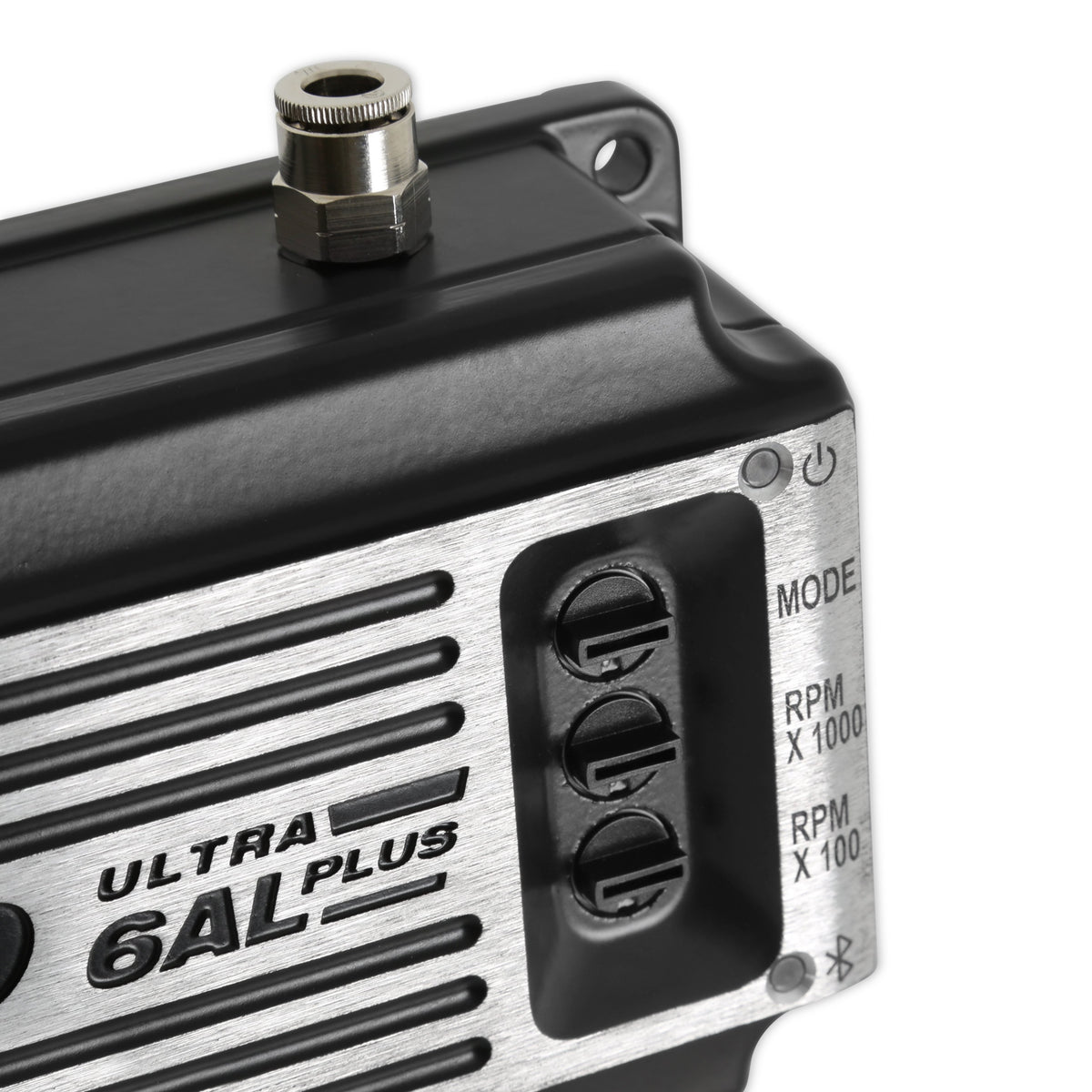

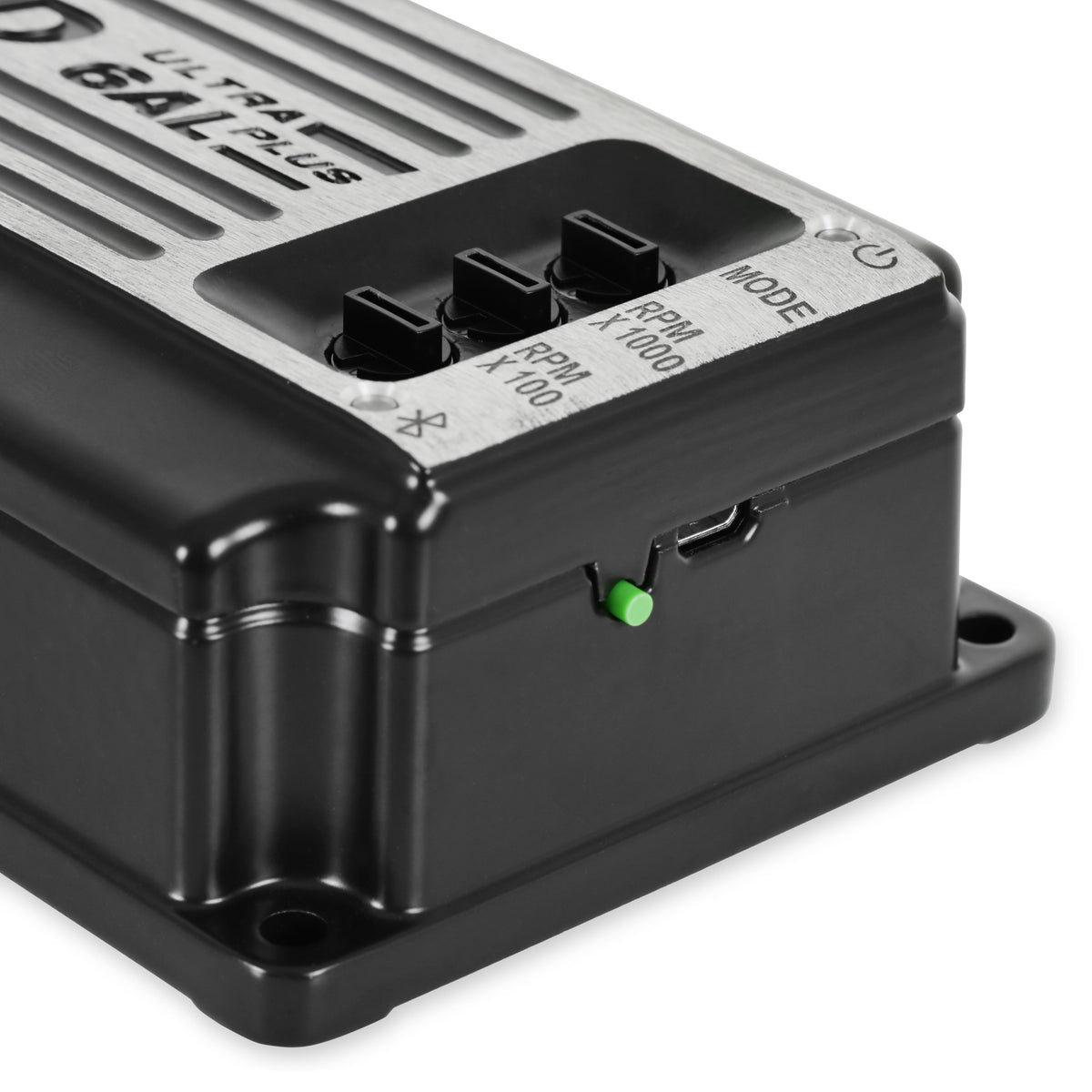

The Ultra 6AL Plus features boost dependent timing control up to 400 kPA (58 PSI / 4 BAR internal sensor), making it the ultimate ignition box for moderately boosted vehicles utilizing a blow-through or draw-through carburetor. Program through the "MSD Ultra 6AL" app or MSDView software via the integrated USB port. Programmable timing curves in 2D Plots or 3D tables (RPM vs Timing vs MAP Pressure) - you can plot the 3D graph and edit a table 20x20 either from Mobile app (phone) or from MSDView (laptop). Mobile app available settings: Step retard value, Launch RPM value, Burnout RPM value, and
MSD ignition control box, part number 65233, supplied new.
Key Features
- Alerts and monitors available
- Launch, Burnout, and Step Retard activation inputs available. This ignition box has a built-in tri step RPM rev limit
- 15,000 RPM with 14.4 Volts
- Programmable Step Retard: On Ramp time, Off Delay, Off Ramp Time, Engine RPM for activation
- Capable to program cylinder selection and start retard without a computer or app for old school racers (like 6425 or 6428 box)
- High level of security connection from phone to Ignition box (encryption) including sequence in push button implementation
Fitment
- Universal application — check the specification below
This is a universal component sold by specification rather than by vehicle, so there is no year/make/model list for this product. Match the part number and the specification below against your own engine before ordering.
Specifications
- Brand: MSD
- Manufacturer Part Number: 65233
- Item Type: Electrical
- Color: Black
- Connector Gender: Female
- Connector Quantity: 1
- Current Draw: 1000 RPM
- Grade Type: Performance
- Ignition Box Type: Ultra Plus
- Ignition Type: Performance
- Maximum RPM: 15,000 RPM
- Mount Type: Surface Mount

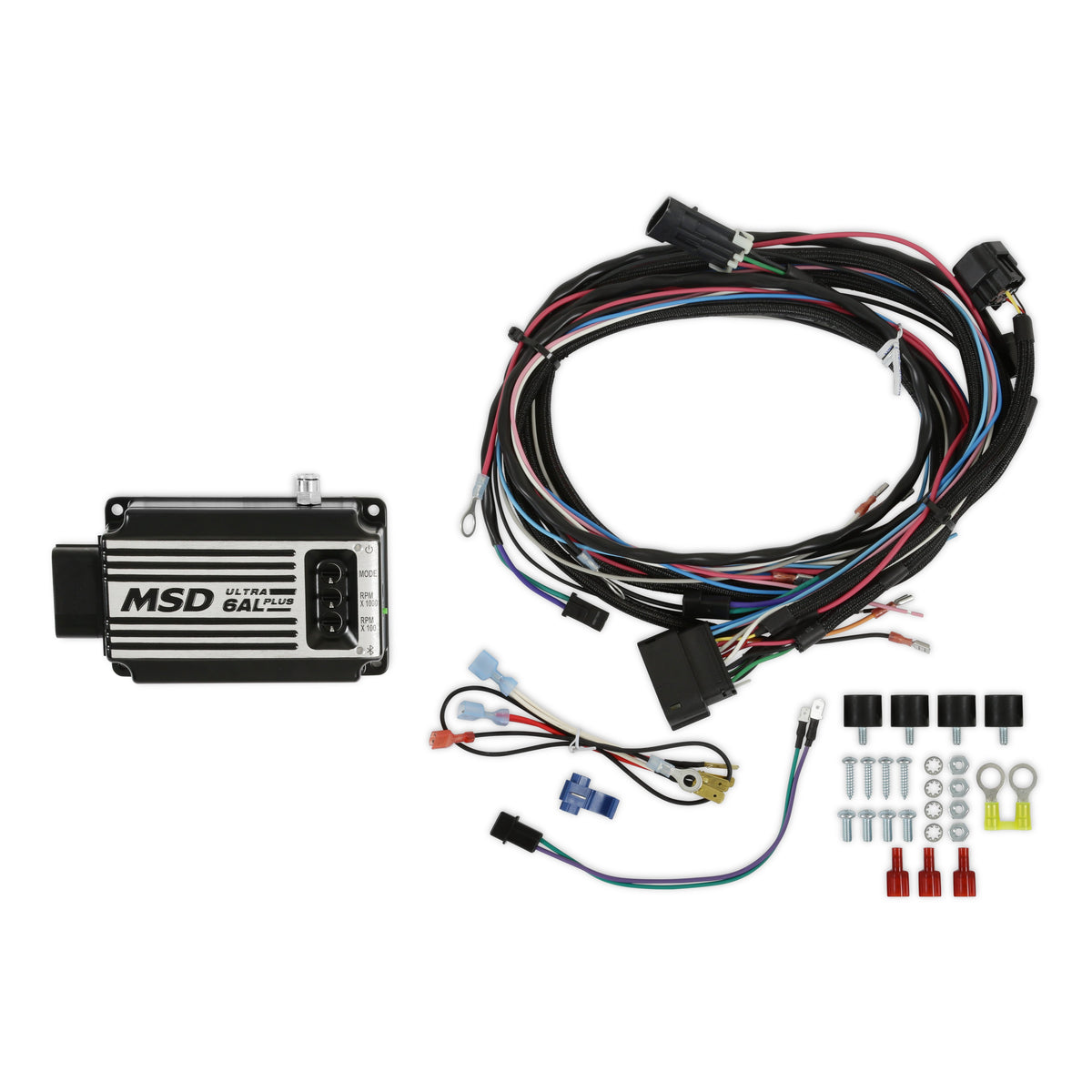

- Mounting Hardware Included: Yes
- Primary Voltage: 520-540
- Product Type: Digital 6AL Ignition Control Box w/Rev Control
- Rev Limiter: Yes
- Rotary Dials: Yes
- Secondary Voltage: 45,000
- Spark Energy (mJ per spark): 135 - 150
- Sub Category: Control Modules
- Terminal Gender: Male
- Terminal Quantity: 20
- Voltage Required: 12-15
- Country of Manufacture: United States
- Condition: New
- Shipping Weight: 2.9 lb
Images are for illustrative purposes. The product you receive may differ in finish or packaging from the photograph.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Share
🛡️
Manufacturer's Warranty — MSD
▾
Manufacturer's Warranty — MSD
MSD warrants this product to be free from defects in material and workmanship under its intended normal use for one year from the date of the original purchase, when it is properly installed and purchased from an authorized MSD dealer. The warranty is void for products purchased through auction websites. A part found defective is repaired or replaced at MSD's option, and a covered item is returned free of charge using Ground shipping. Intended normal use means the item is used as originally intended and for the original application as sold by MSD: any modification to the item, or use on an application other than what MSD markets the product for, voids the warranty. MSD states that it is the sole responsibility of the customer to determine that the item will work for the application intended, and that MSD accepts no liability for custom applications. All returns must have a Return Material Authorization (RMA) number issued before being returned — contact MSD Customer Service at (915) 857-5200 for the number and shipping information, and proof of purchase must be supplied for verification. When returning a unit for repair, leave all wires at the length at which they were installed and include a detailed account of the problem and of the components and accessories installed on the vehicle; the repaired unit is returned by Ground shipping, which is covered by the warranty. After the warranty period has expired, repair service is based on a minimum and maximum fee. Technical support is on (915) 855-7123, 7:00 a.m. to 5:00 p.m. Monday to Friday mountain time. This shall constitute the sole remedy of the purchaser and the sole liability of MSD; to the extent permitted by law it is exclusive and in lieu of all other warranties, express or implied, including any implied warranty of merchantability or fitness, and in no event shall MSD or its suppliers be liable for special or consequential damages.
Warranty terms are set by the manufacturer and may change. Full details and claims are handled directly by MSD. Contact us if you need help with a warranty claim.
