MSD 7227 Ultra 7AL Ignition
MSD 7227 Ultra 7AL Ignition
Couldn't load pickup availability
Genuine MSD part.
For racers that need serious spark output, the new ULTRA 7AL is the right choice. Offering Industry-Leading Spark Energy Output in a compact, and efficient package. The Ultra 7AL includes four-step retards, three rev limits, and two RPM-activated switch outputs. The ULTRA 7AL also features two different power output settings that can be used for on-the-fly changes which are perfect for drag-and-drive applications! All features are adjusted using plug-in modules including the 3-Step Rev Control and Multi-Step Retard. The Rev Control allows you to set one rev limit for the burnout, another for t

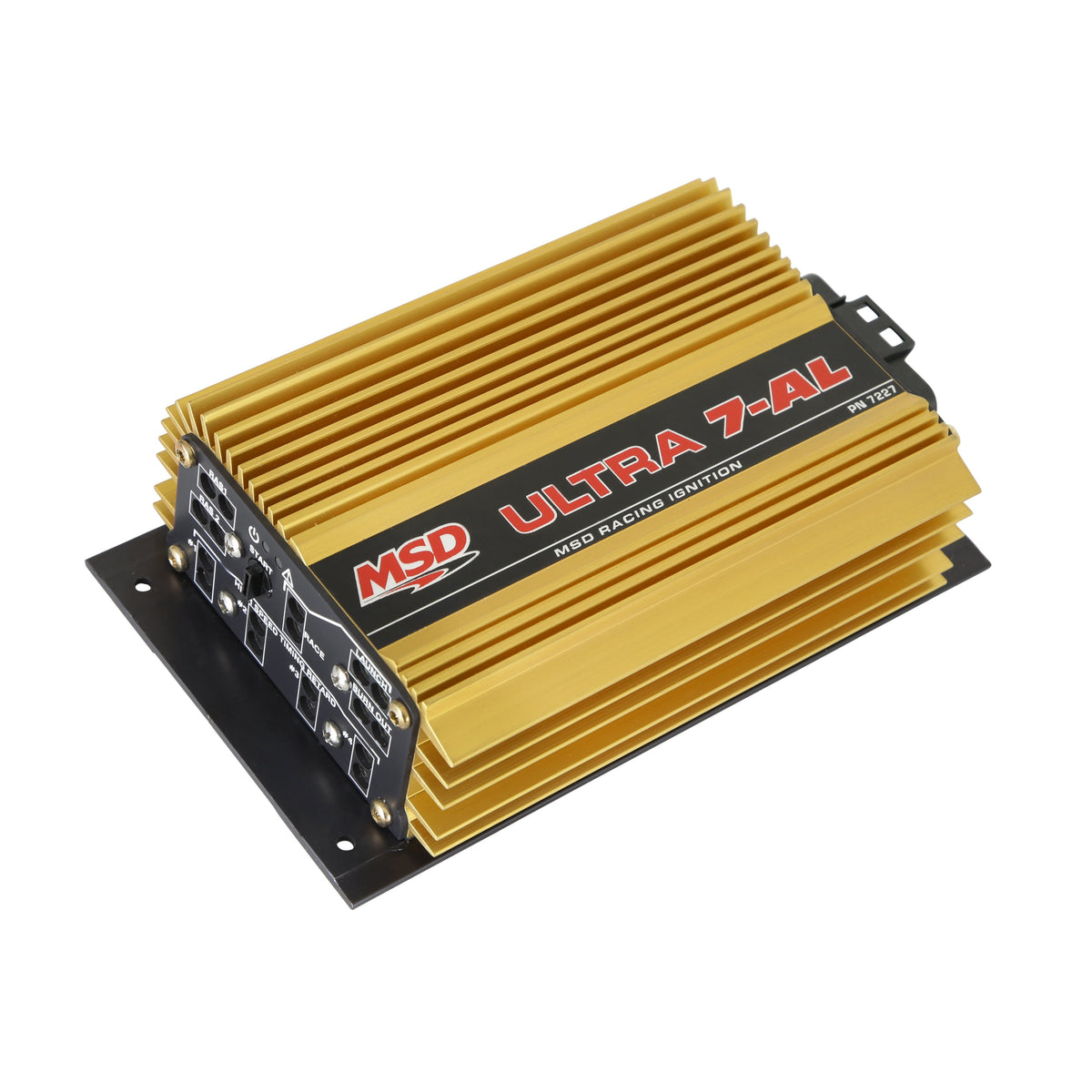

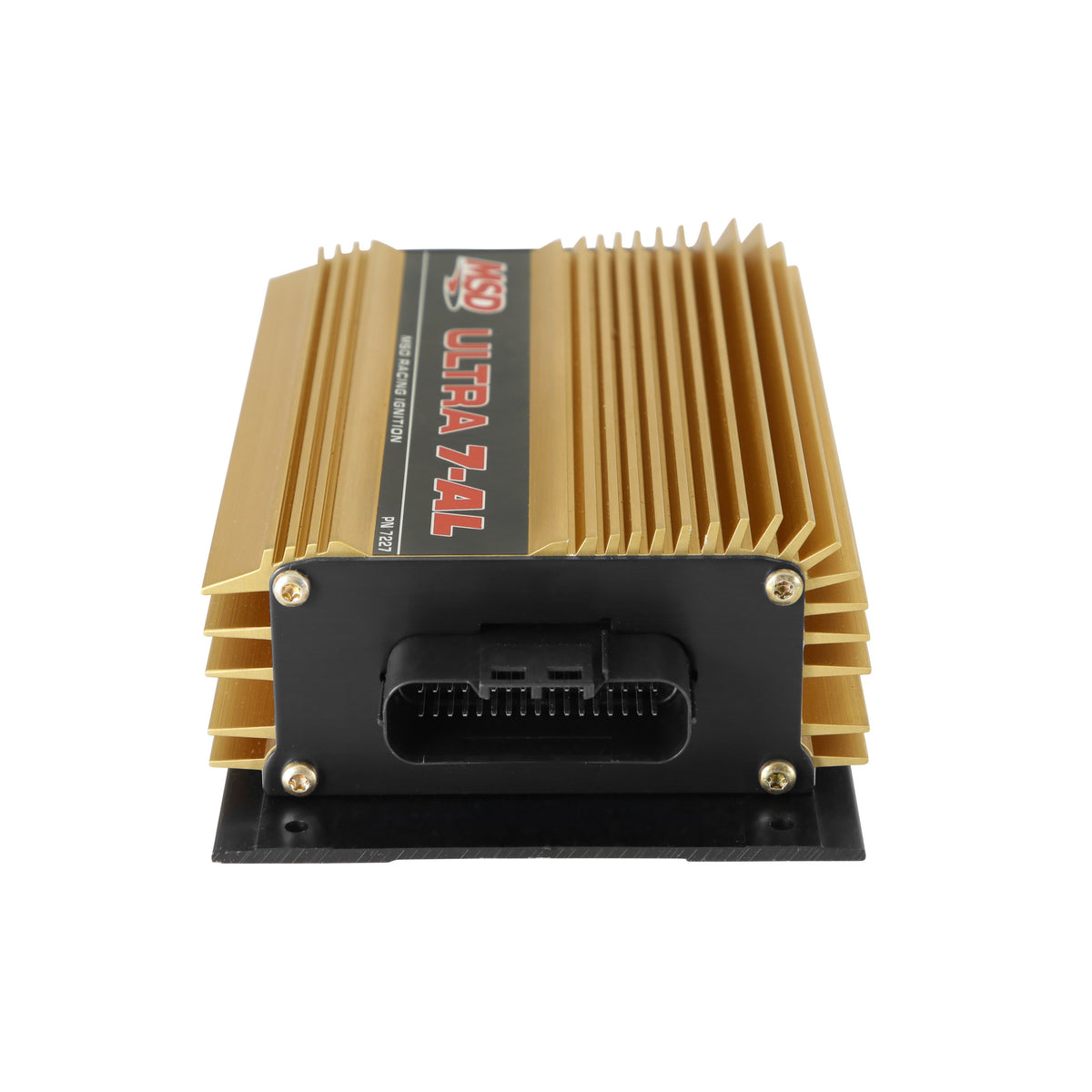

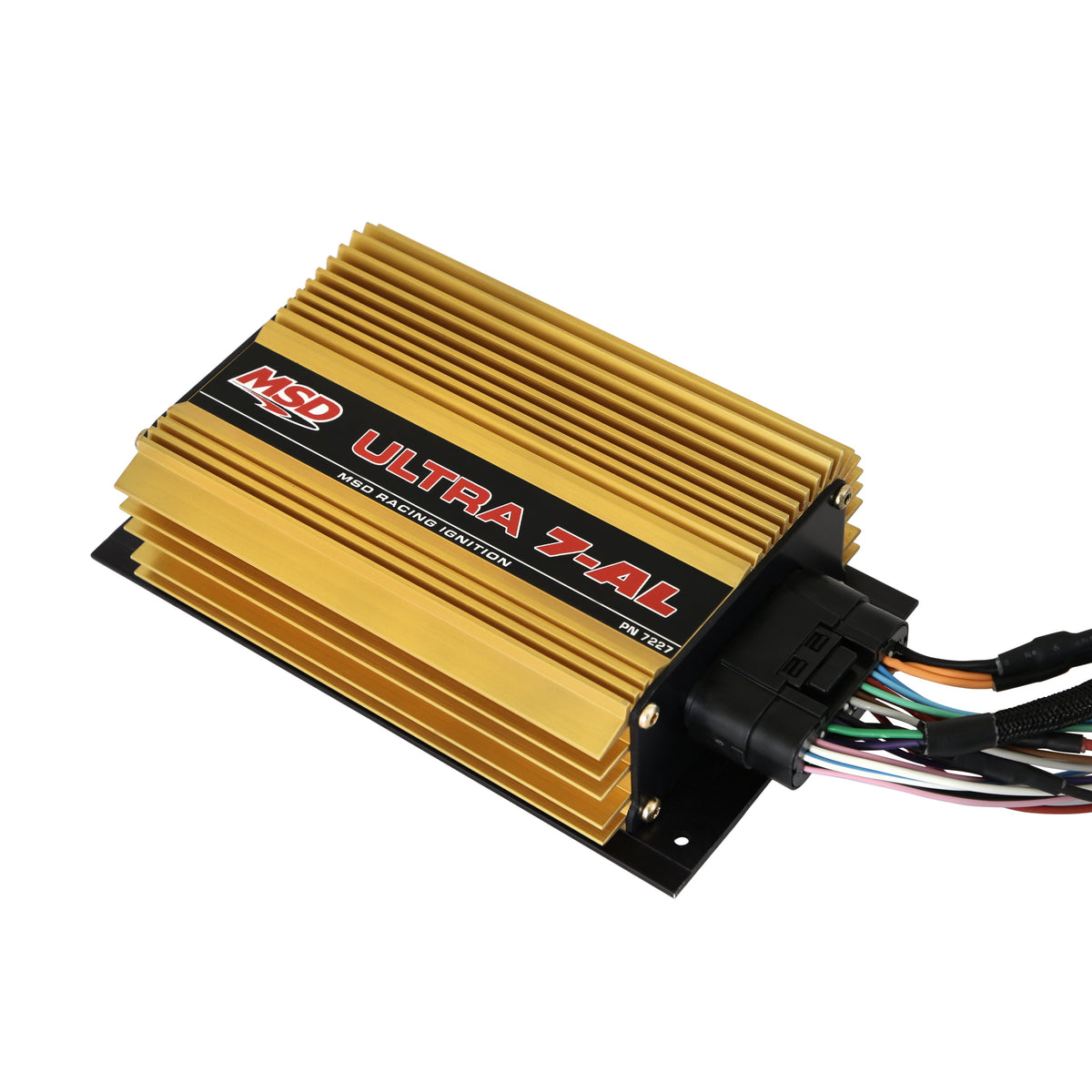

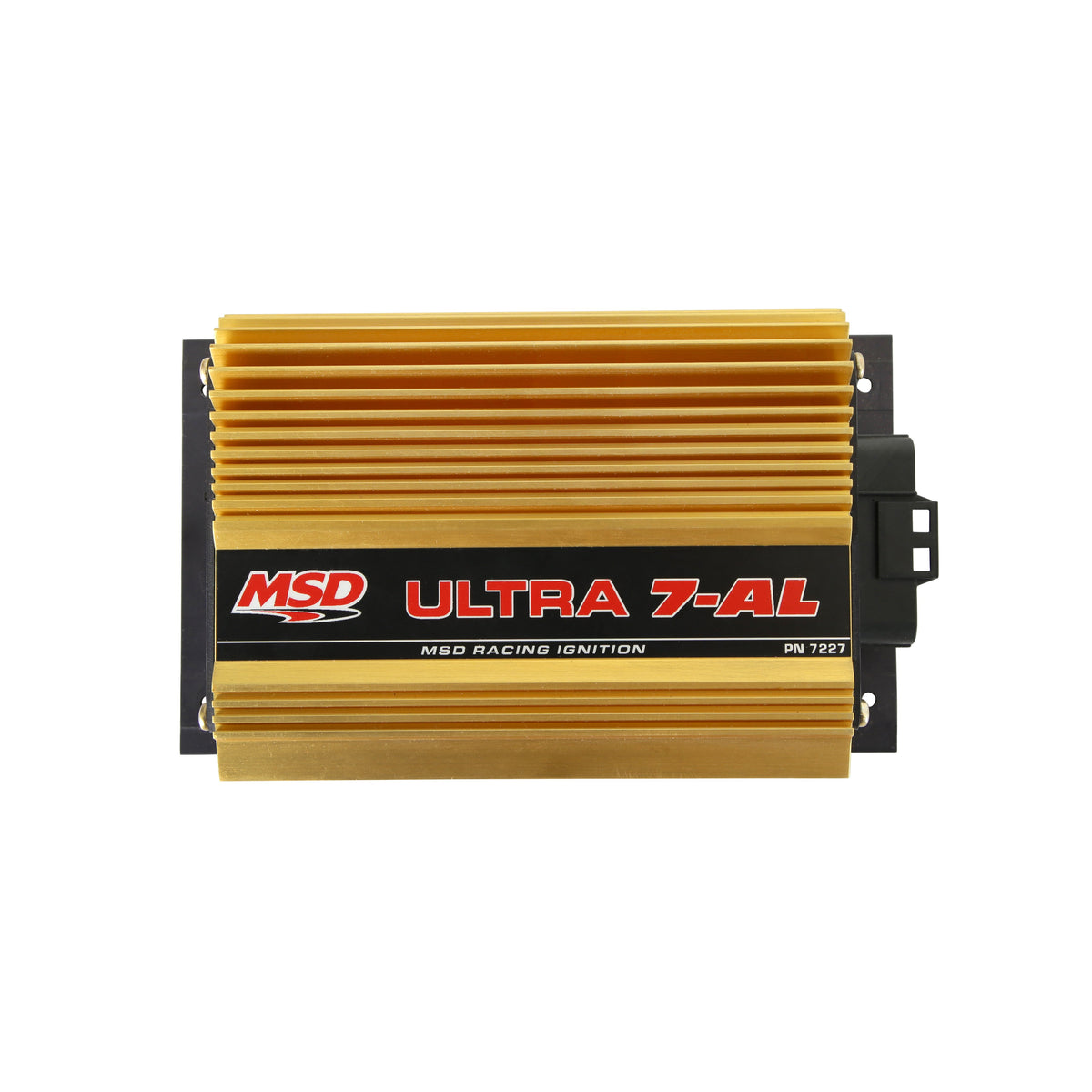

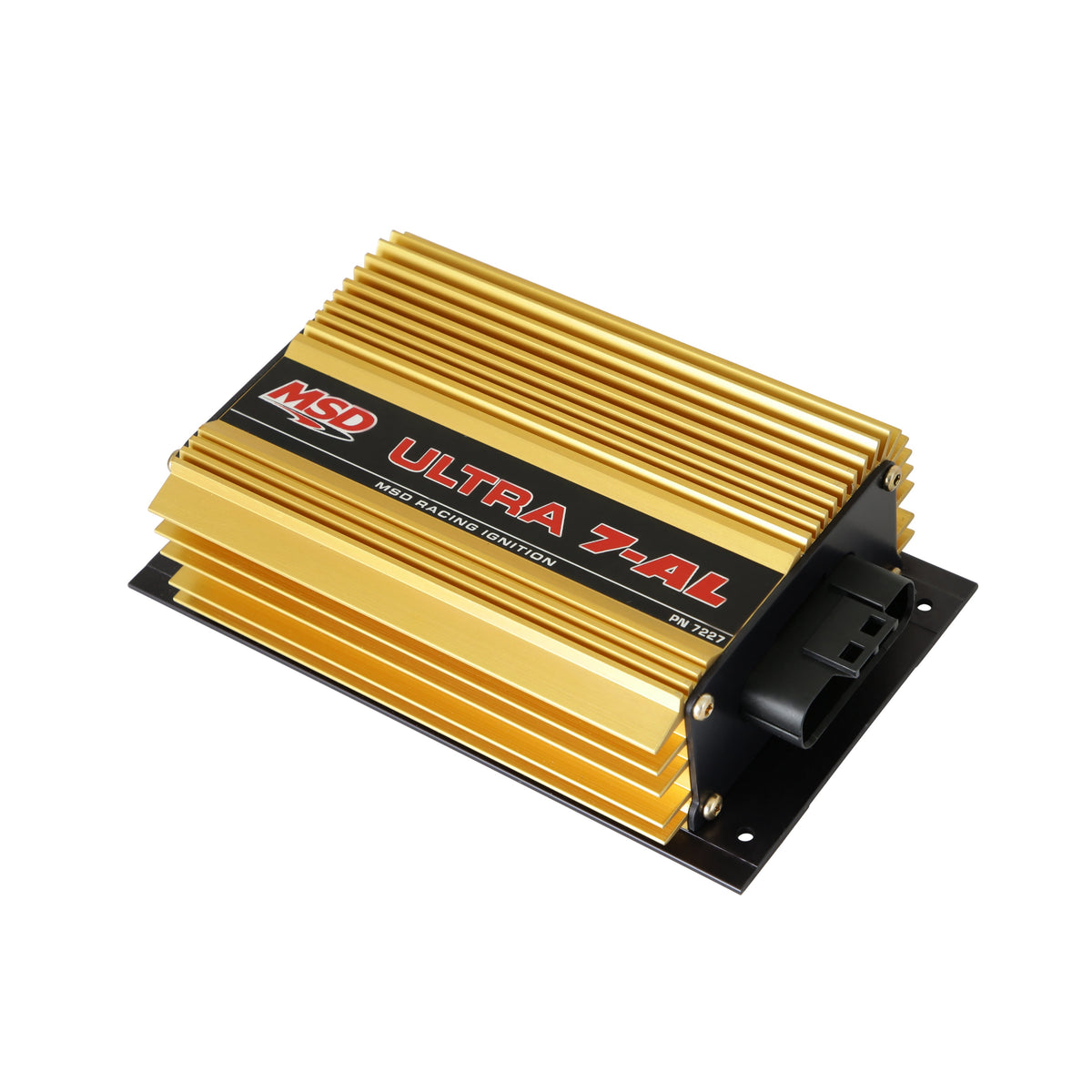

MSD ignition control box, part number 7227, supplied new.
Key Features
- Quickens Throttle Response
- High Power: 1.8A per 1K RPM (14.7A @ 8K RPM) Low Power: 0.9A per 1K RPM (7.2A @ 8K RPM)
- Launch Rev Limit
- On the Fly Power Output Selection
- The Ultra 7AL is 56% lighter, and over 50% smaller than the 7AL-3

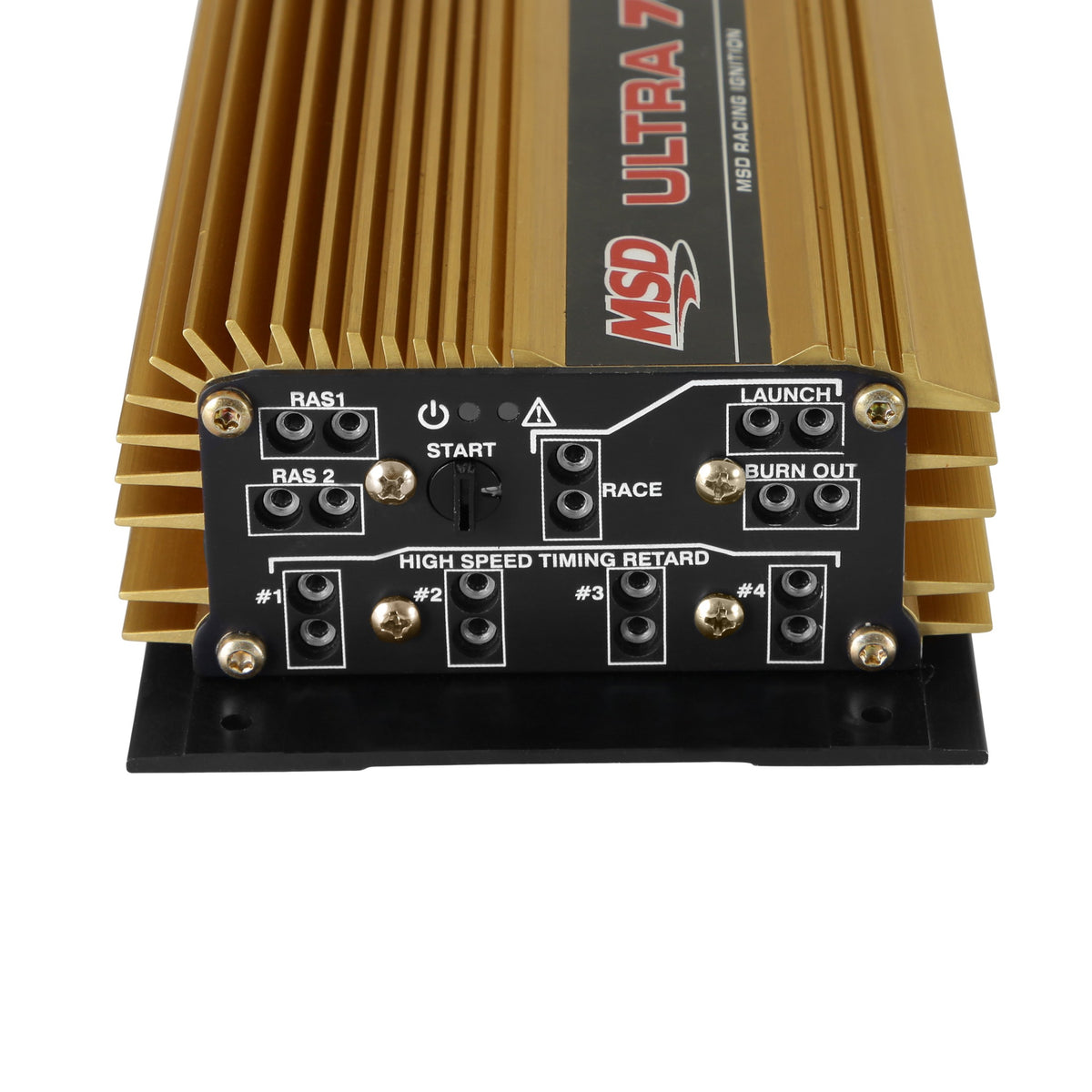

- Uses familiar Pills for Rev Limit and Timing Retard Adjustments
Fitment
- Universal application — check the specification below
This is a universal component sold by specification rather than by vehicle, so there is no year/make/model list for this product. Match the part number and the specification below against your own engine before ordering.
Specifications
- Brand: MSD
- Manufacturer Part Number: 7227
- Item Type: Electrical
- Color: Gold
- Connector Gender: Male
- Connector Quantity: 1
- Current Draw: 6000 RPM, 8000 RPM
- Grade Type: Performance
- Ignition Type: Performance
- Maximum RPM: Firmware Limited to 15K RPM
- Mount Type: Surface Mount
- Mounting Hardware Included: No
- Primary Voltage: High Power: 548V Low Power: 387V
- Product Type: Ignition Box
- Secondary Voltage: 40KV with Coil PN 82612
- Spark Energy (mJ per spark): 330
- Sub Category: Control Modules
- Terminal Gender: Female
- Terminal Quantity: 1
- Voltage Required: 7-20
- Country of Manufacture: United States
- Condition: New
- Shipping Weight: 4.6 lb
Images are for illustrative purposes. The product you receive may differ in finish or packaging from the photograph.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Share
🛡️
Manufacturer's Warranty — MSD
▾
Manufacturer's Warranty — MSD
MSD warrants this product to be free from defects in material and workmanship under its intended normal use for one year from the date of the original purchase, when it is properly installed and purchased from an authorized MSD dealer. The warranty is void for products purchased through auction websites. A part found defective is repaired or replaced at MSD's option, and a covered item is returned free of charge using Ground shipping. Intended normal use means the item is used as originally intended and for the original application as sold by MSD: any modification to the item, or use on an application other than what MSD markets the product for, voids the warranty. MSD states that it is the sole responsibility of the customer to determine that the item will work for the application intended, and that MSD accepts no liability for custom applications. All returns must have a Return Material Authorization (RMA) number issued before being returned — contact MSD Customer Service at (915) 857-5200 for the number and shipping information, and proof of purchase must be supplied for verification. When returning a unit for repair, leave all wires at the length at which they were installed and include a detailed account of the problem and of the components and accessories installed on the vehicle; the repaired unit is returned by Ground shipping, which is covered by the warranty. After the warranty period has expired, repair service is based on a minimum and maximum fee. Technical support is on (915) 855-7123, 7:00 a.m. to 5:00 p.m. Monday to Friday mountain time. This shall constitute the sole remedy of the purchaser and the sole liability of MSD; to the extent permitted by law it is exclusive and in lieu of all other warranties, express or implied, including any implied warranty of merchantability or fitness, and in no event shall MSD or its suppliers be liable for special or consequential damages.
Warranty terms are set by the manufacturer and may change. Full details and claims are handled directly by MSD. Contact us if you need help with a warranty claim.
