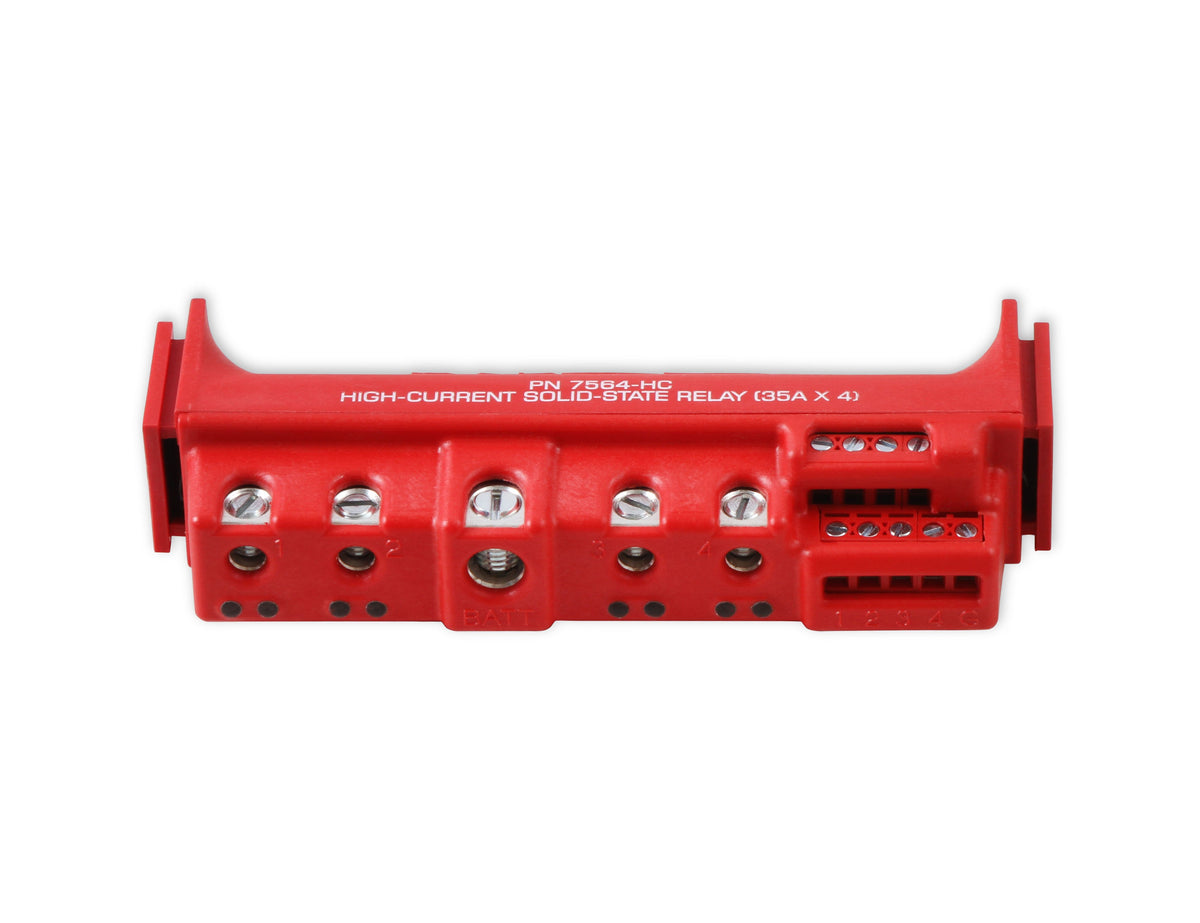

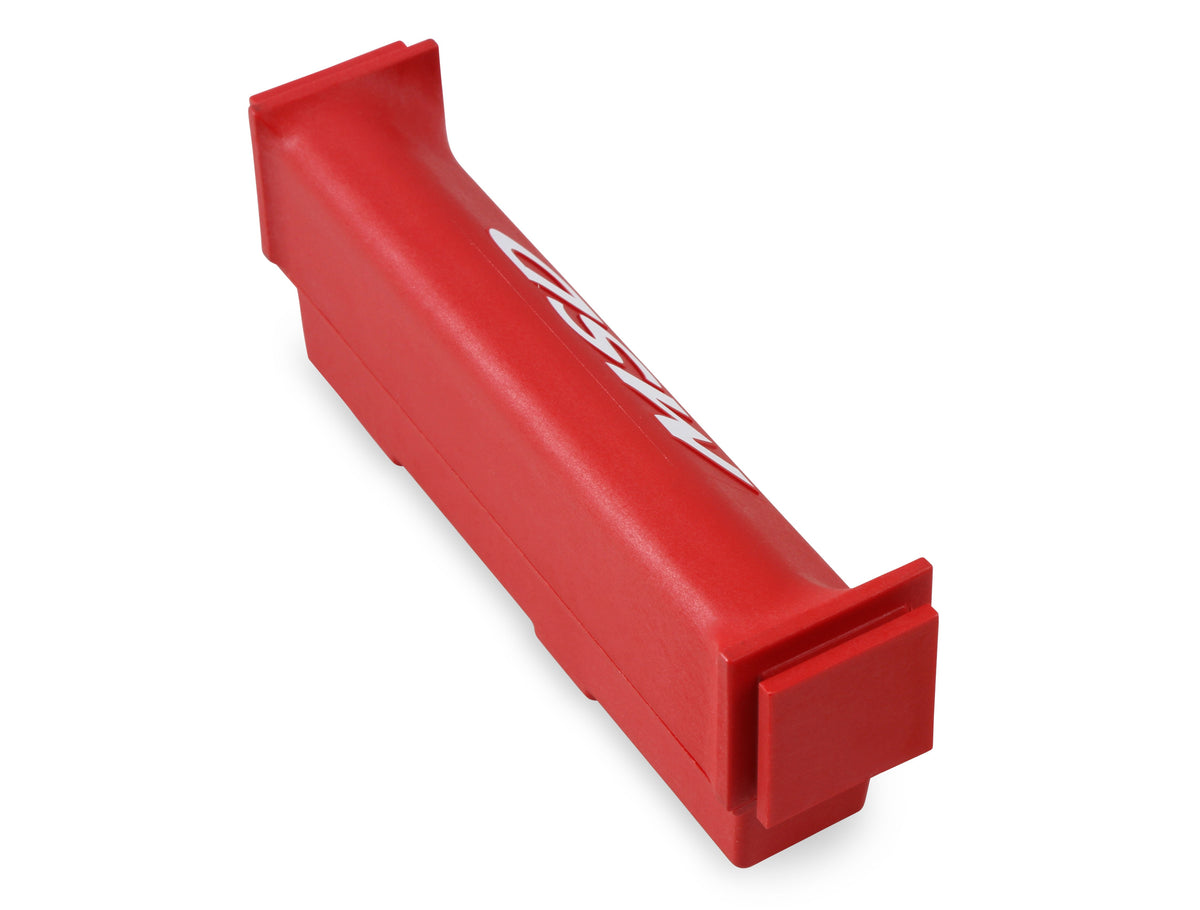

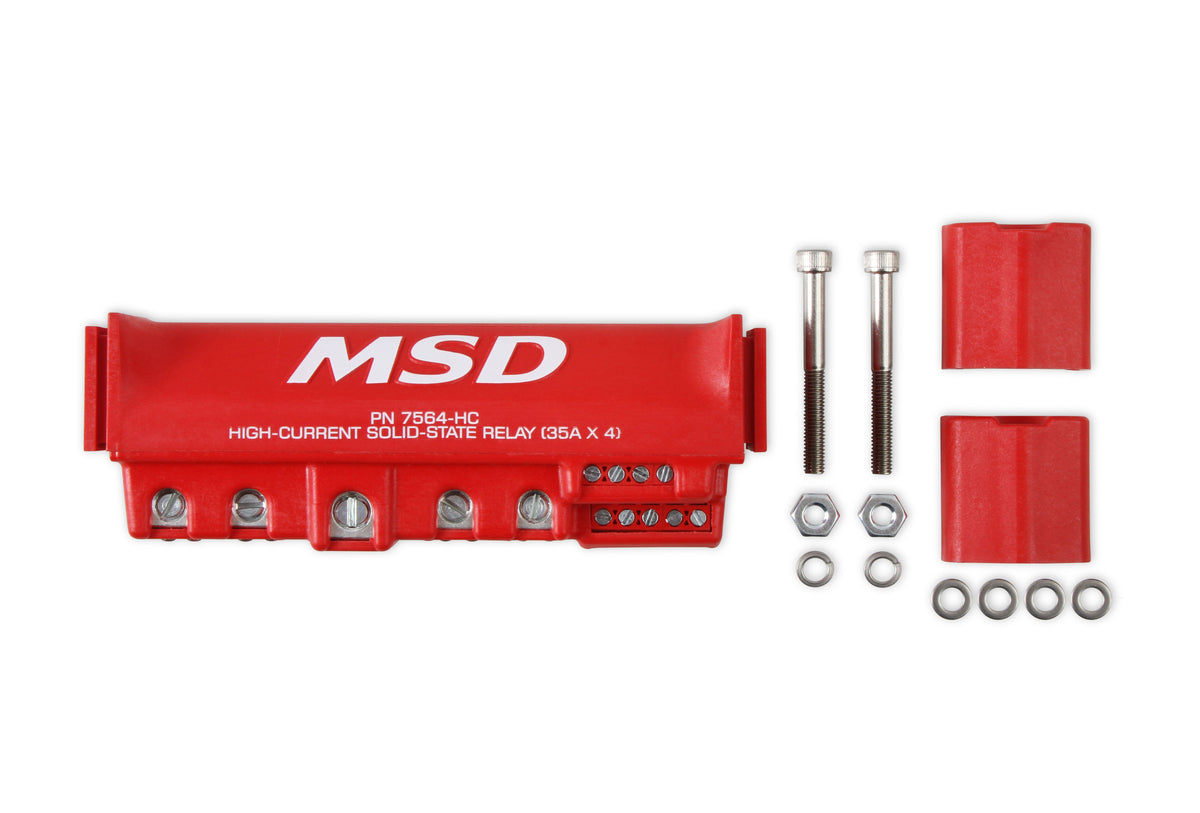

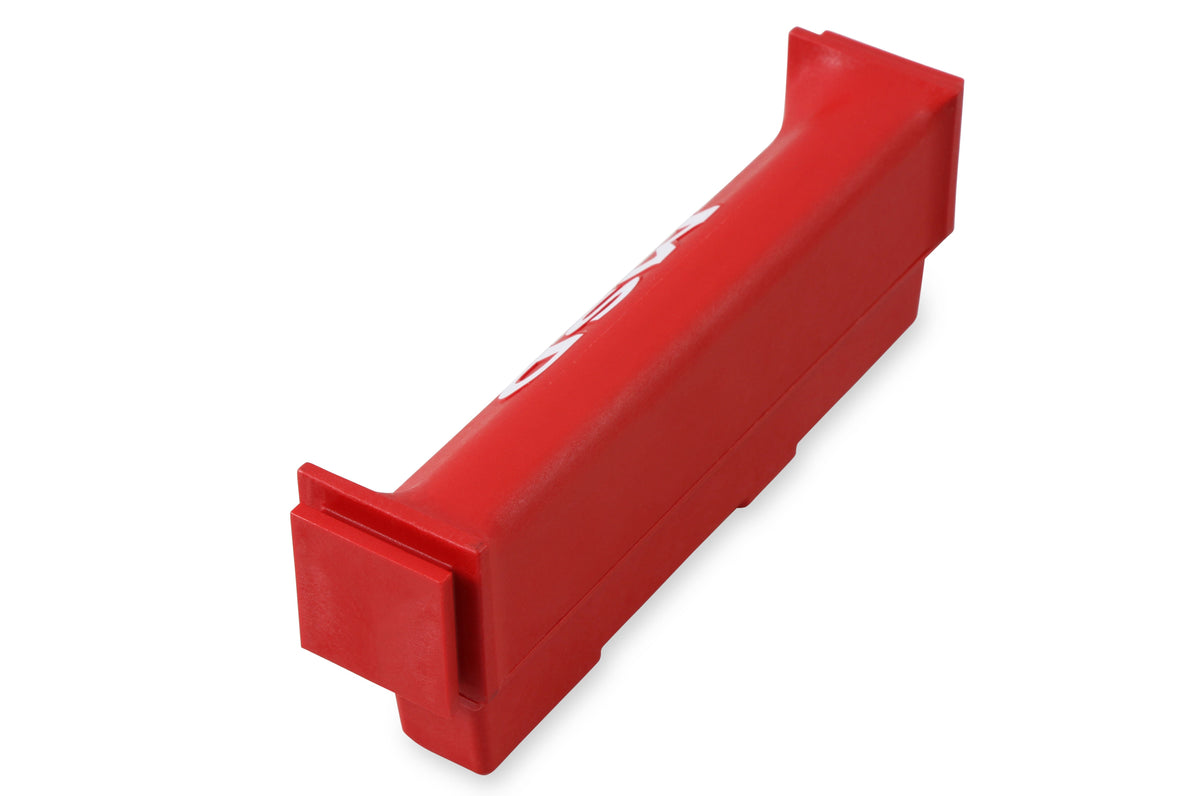

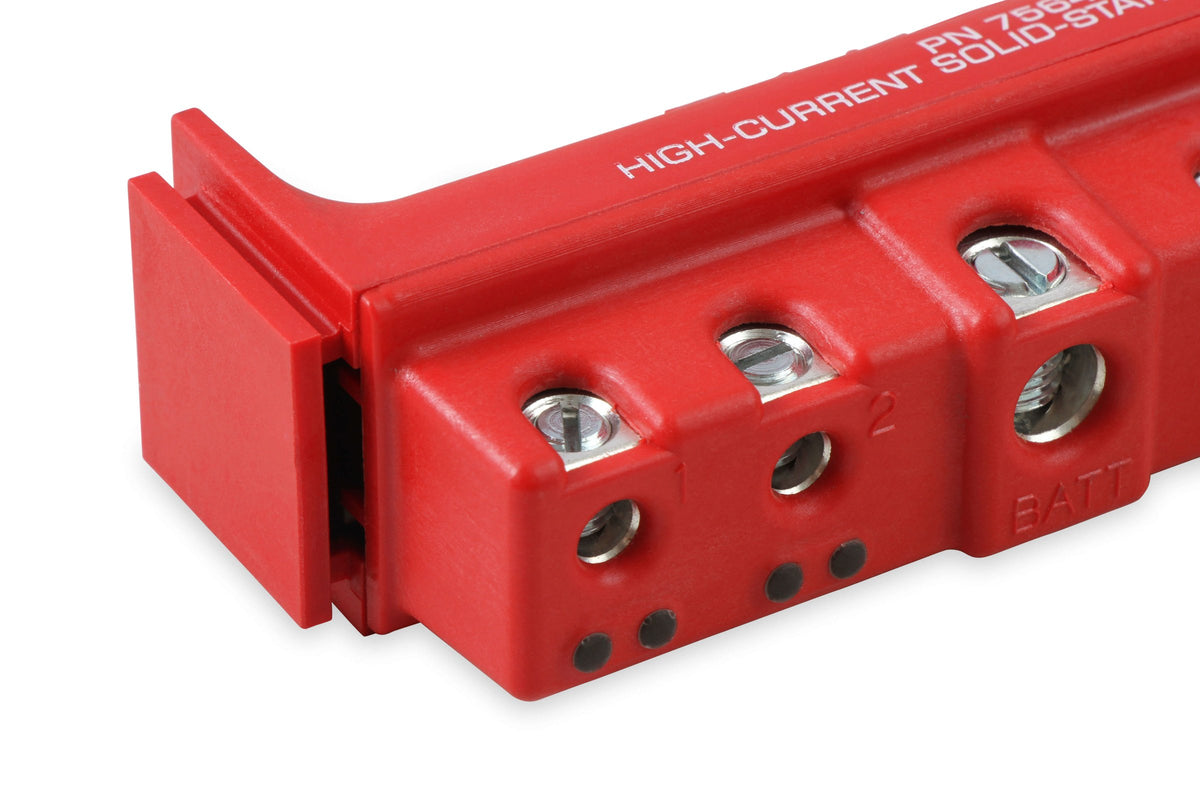

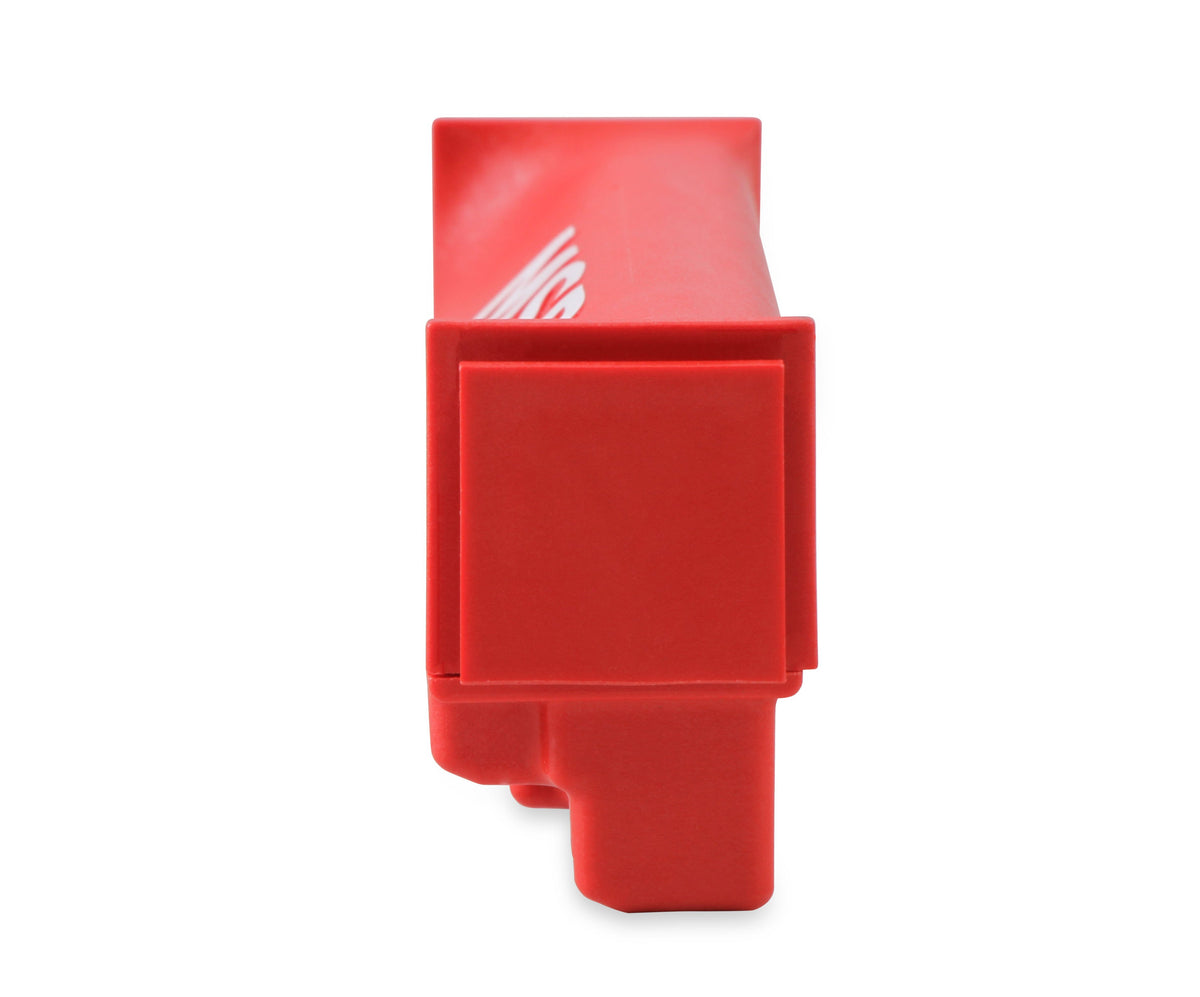

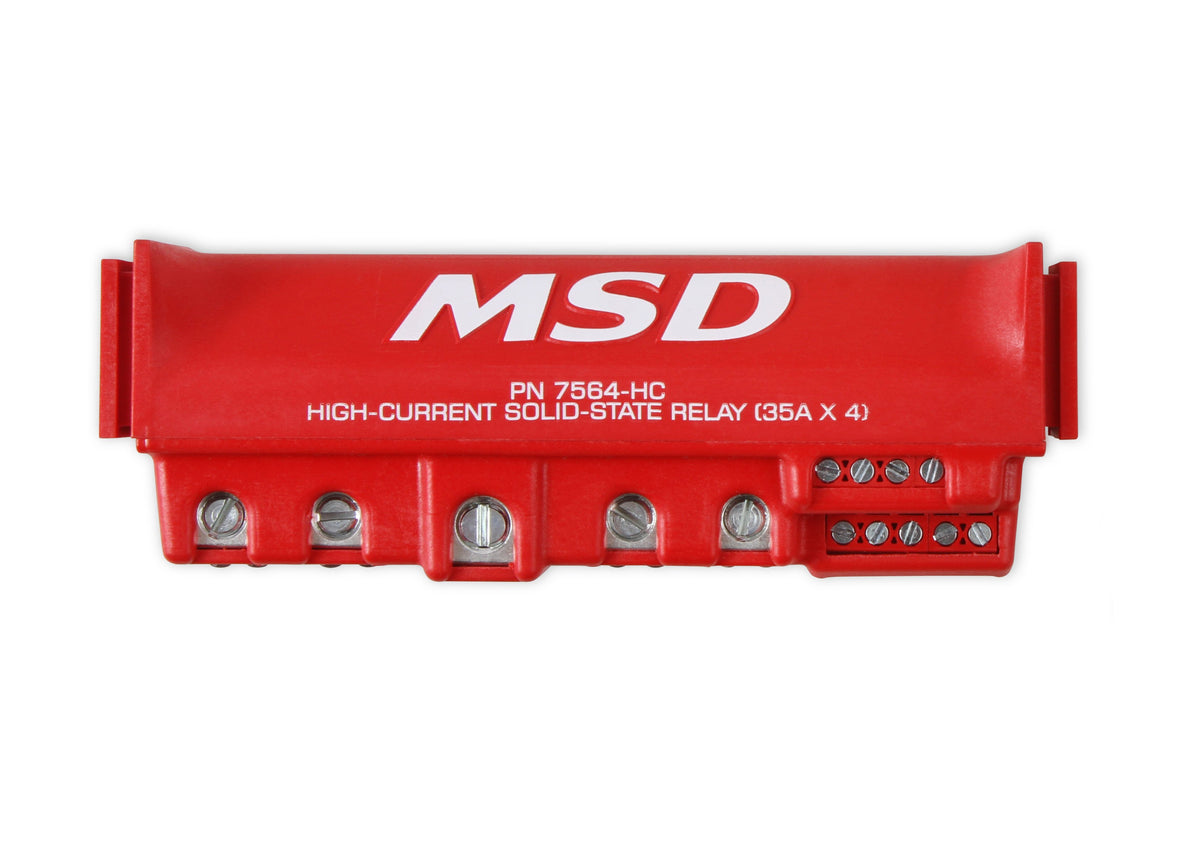

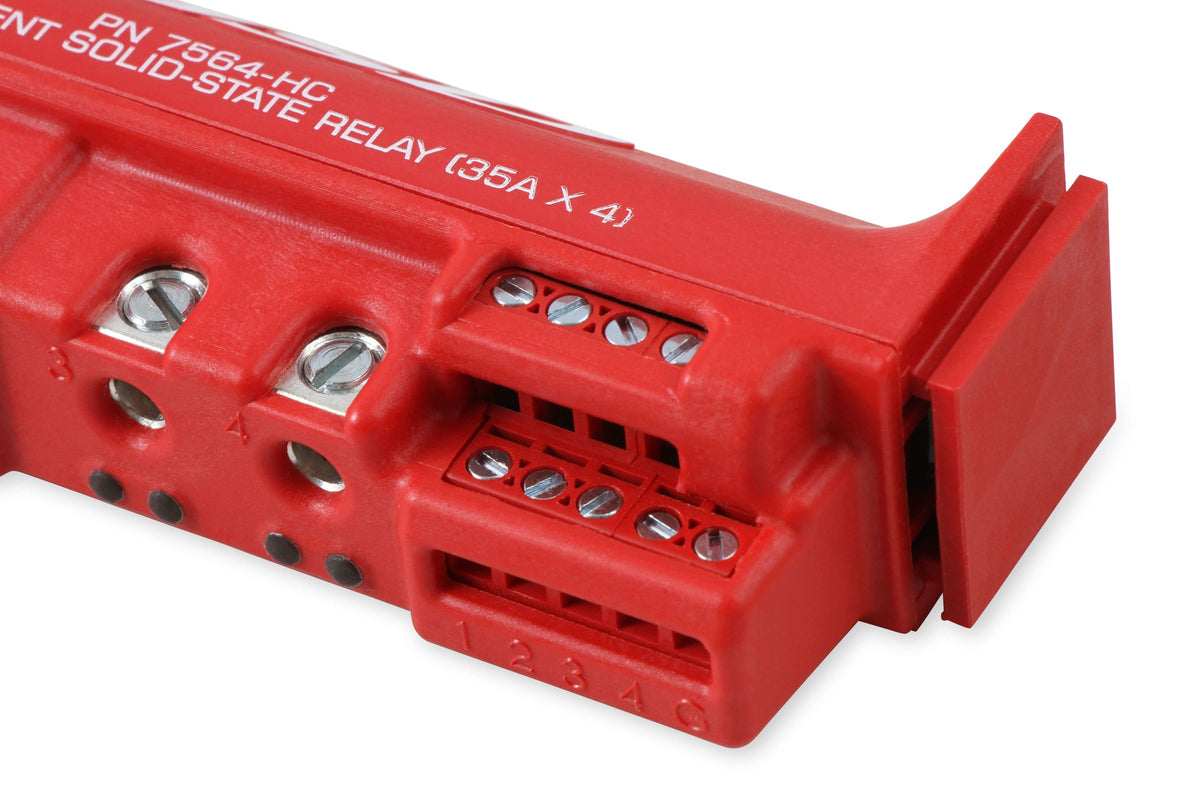

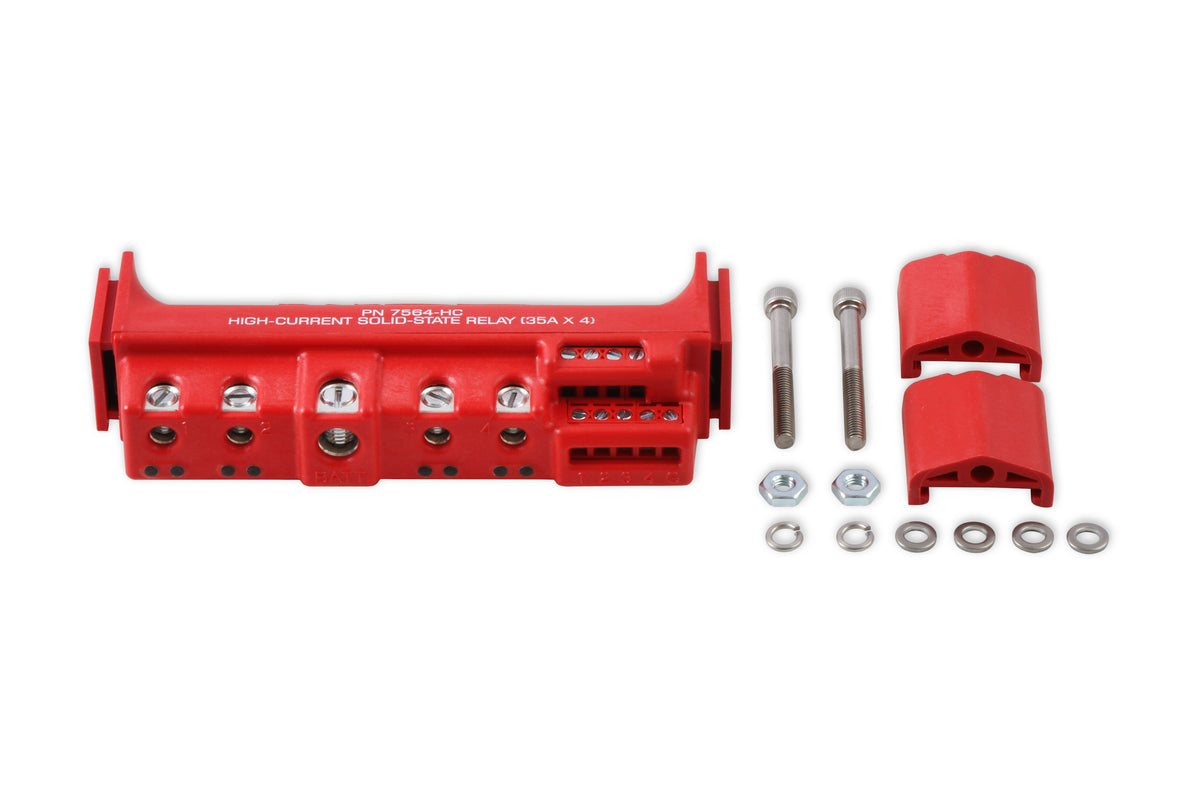

MSD 7564-HC High-Current Solid-State Relay 35Ax4, Red
MSD 7564-HC High-Current Solid-State Relay 35Ax4, Red
Couldn't load pickup availability
Genuine MSD part.
Clean up your wiring with an MSD Solid-State High Current Relay Block. This high current module takes the place of 4 standard relays and eliminates unsightly wiring. Four independent channels can be activated using either power or ground. Each channel is capable of handling up to 35 Amps of continuous current, providing up to 140 Amps of power. It also has the capability of Pulse Width Modulation (PWM). With a PWM input, you can control the output at a rate of 15 hertz and a duty cycle of 50-90%. Controls electric fans, water pumps, nitrous solenoids, auxiliary lighting and any other ele
MSD ignition wiring connector and relay part, part number 7564-HC, supplied new.
Key Features

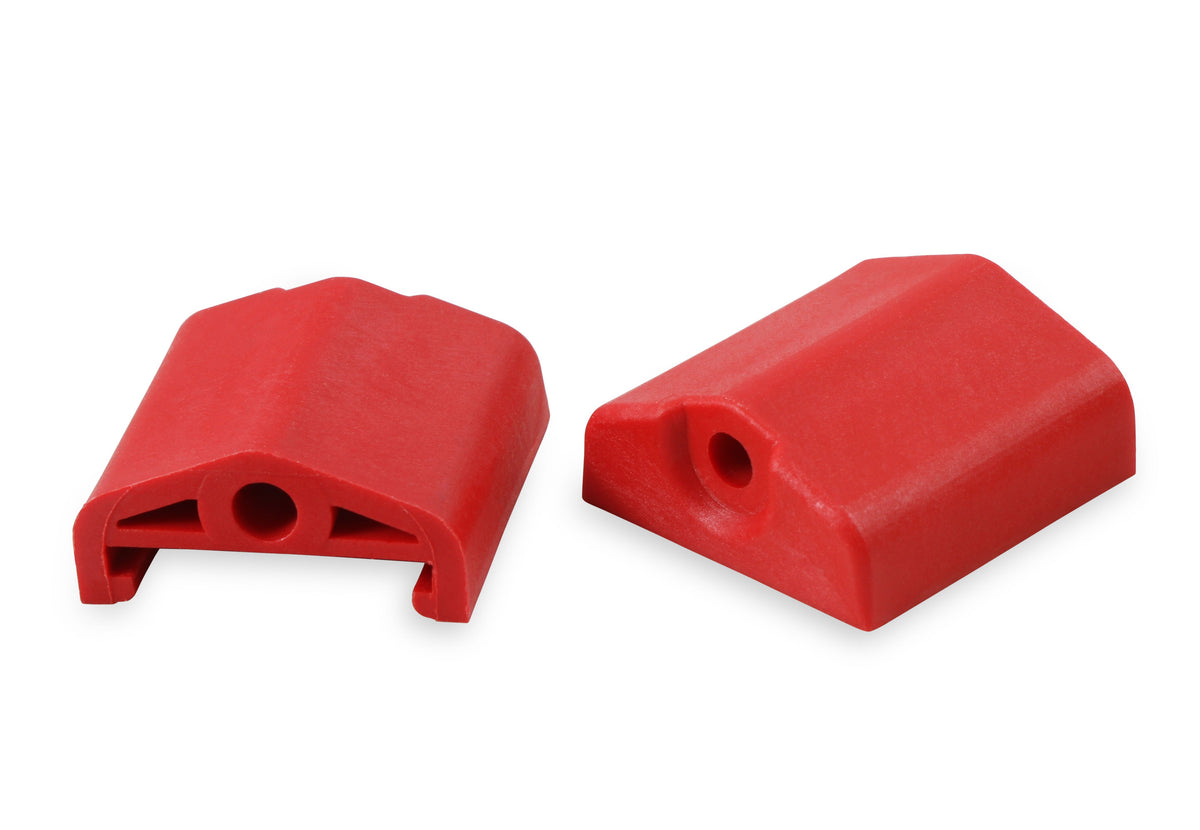

- Multiple mounting options
- Over-temp, short circuit and overload protection
- 4 Independent Channels, 35 Amps each continuous or 100 Amps for 8 seconds
- Combined total continuous current rating of 140 amps
- Clean, easy install with minimum wiring
- Operates from 7-Volts to 20-Volt supply
Fitment
- Universal application — check the specification below
This is a universal component sold by specification rather than by vehicle, so there is no year/make/model list for this product. Match the part number and the specification below against your own engine before ordering.
Specifications
- Brand: MSD
- Manufacturer Part Number: 7564-HC
- Item Type: Electrical
- Color: Red
- Product Type: Solid State Relay
- Sub Category: Relays
- Country of Manufacture: United States
- Condition: New
- Shipping Weight: 0.8 lb
