MSD 80003-8HO PRO 600 CDI Ignition and Coil Kit - Black Coils
MSD 80003-8HO PRO 600 CDI Ignition and Coil Kit - Black Coils
Couldn't load pickup availability
Genuine MSD part.

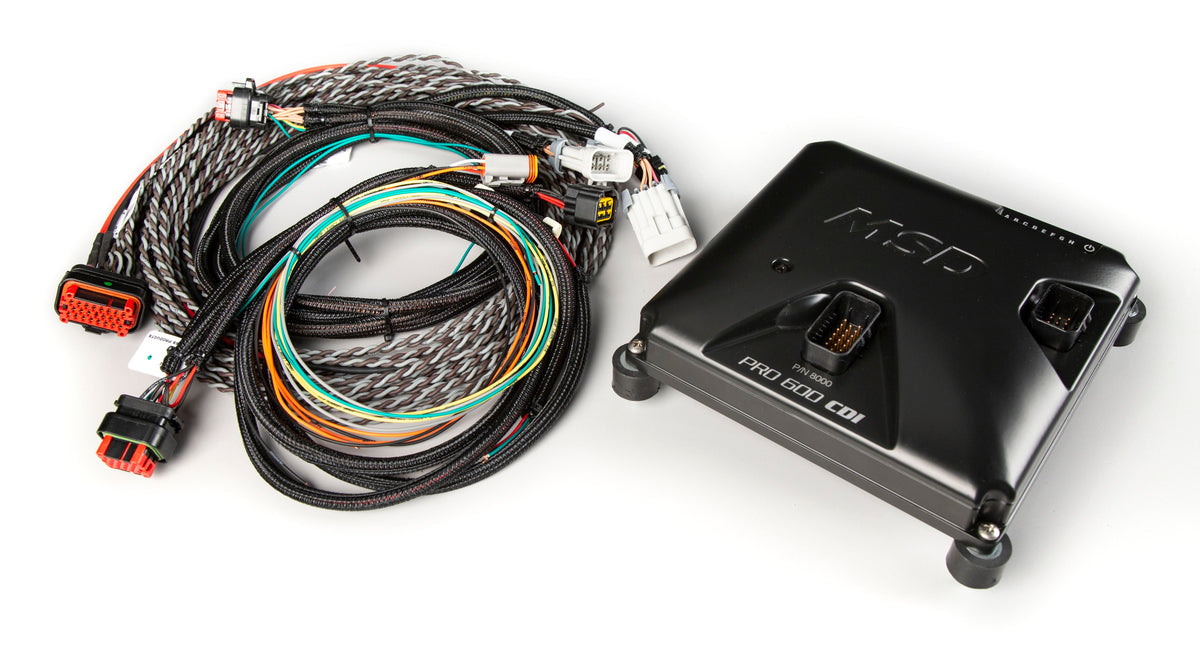

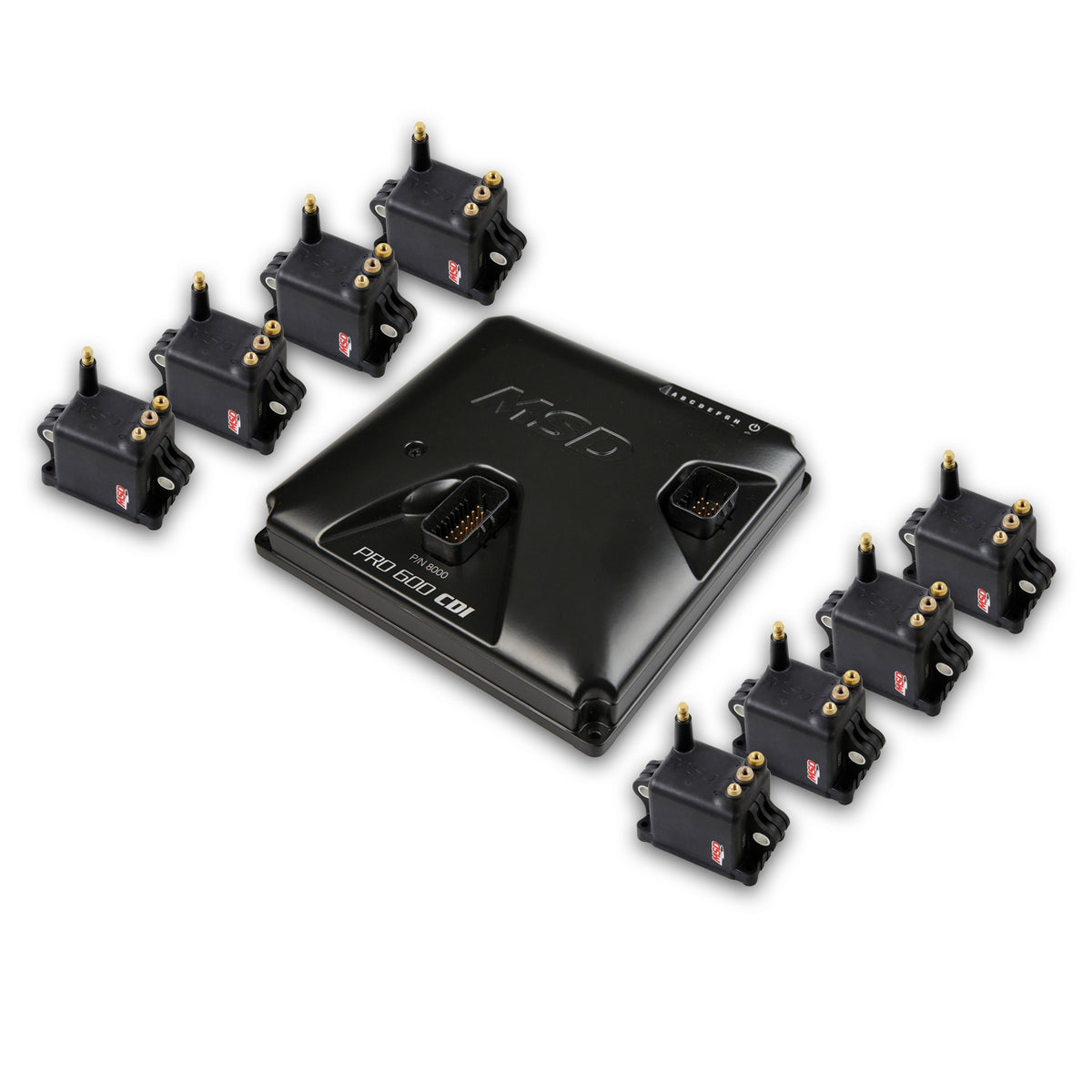

Introducing the High Output version of MSD's PRO 600 CDI 8-channel Capacitive Discharge Ignition Kit (8008-8HO). Replacing the extremely capable 8232 coils, the 8280 High Output Ignition Coils take this kit even further than the tried and true 8000-8 Pro 600 Kit. Available in red or black, the 8280 coil has the goods to back up its aesthetics. With increased peak spark current, overall spark energy, and greater thermal efficiency, the 8280 is the perfect complement to the PRO 600 Ignition Box. Designed for coil-near-plug engine management systems such as Holley EFI, GM LS platforms, and most

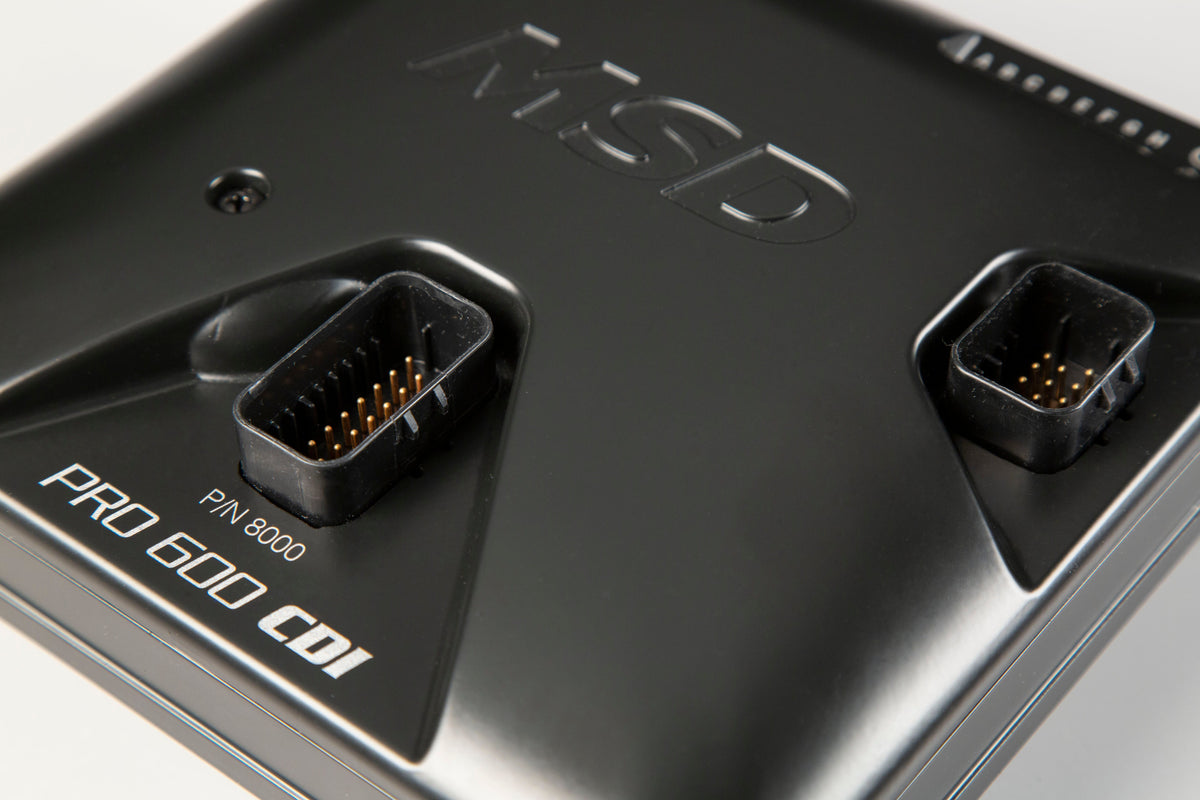

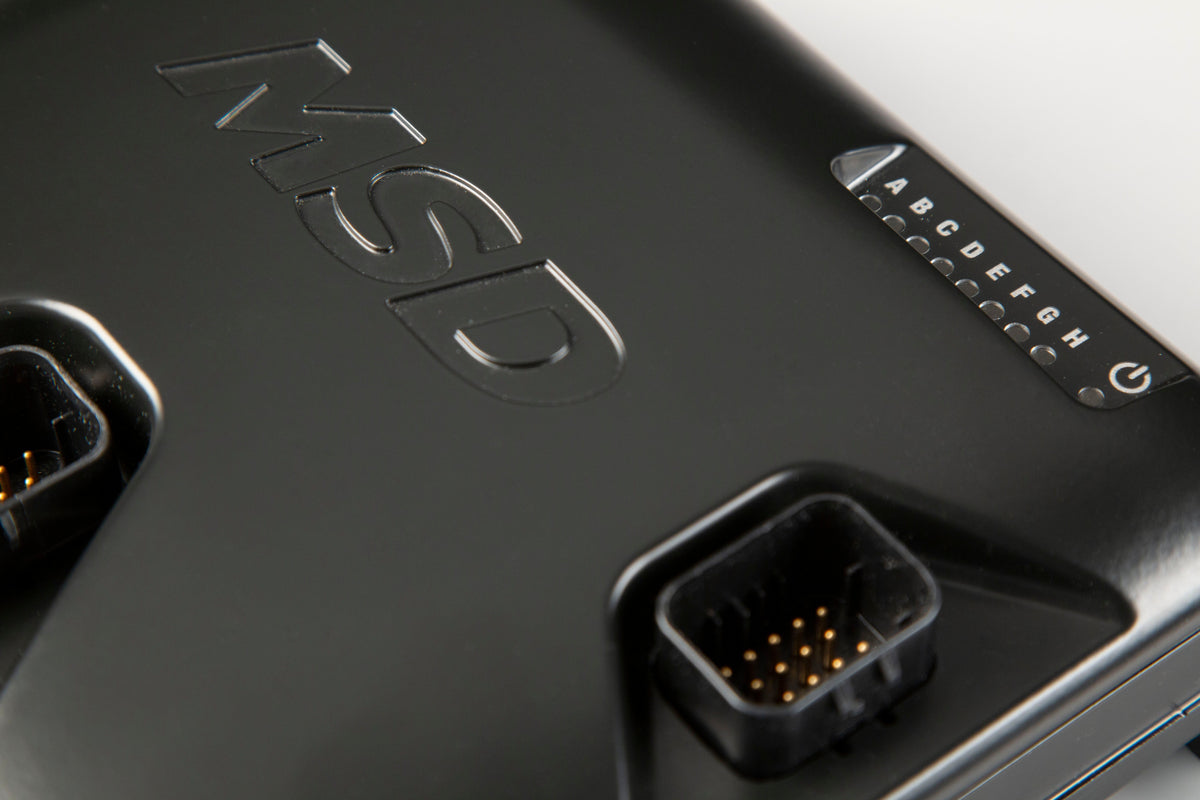

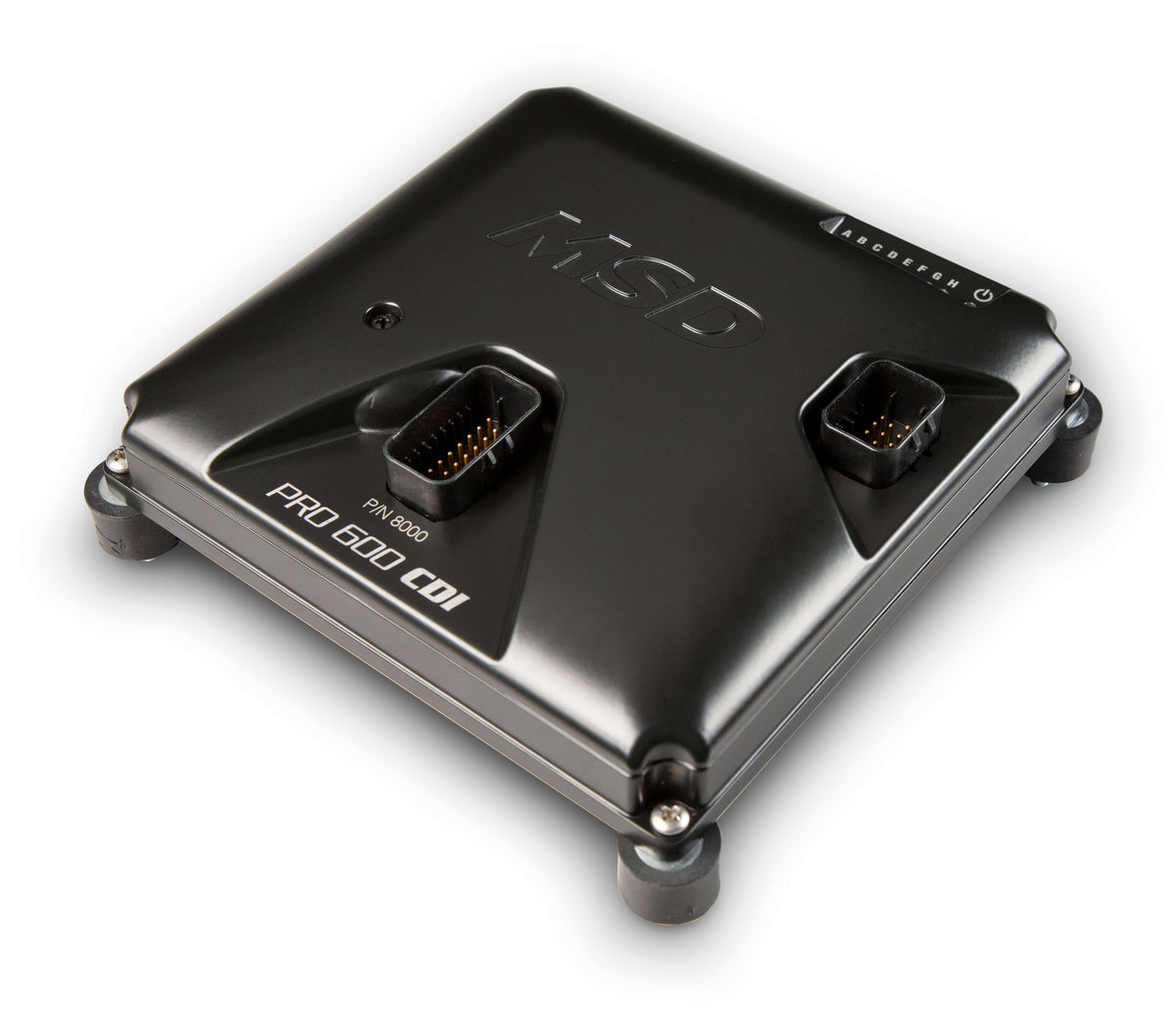

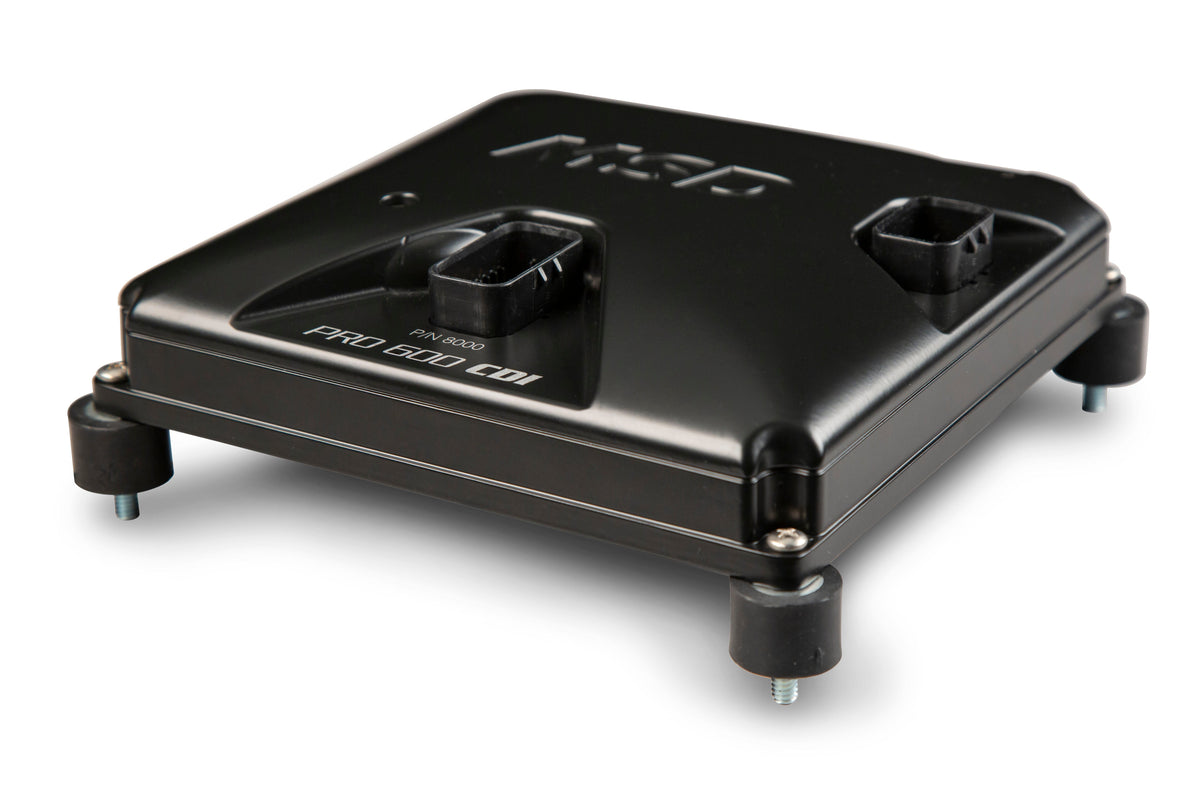

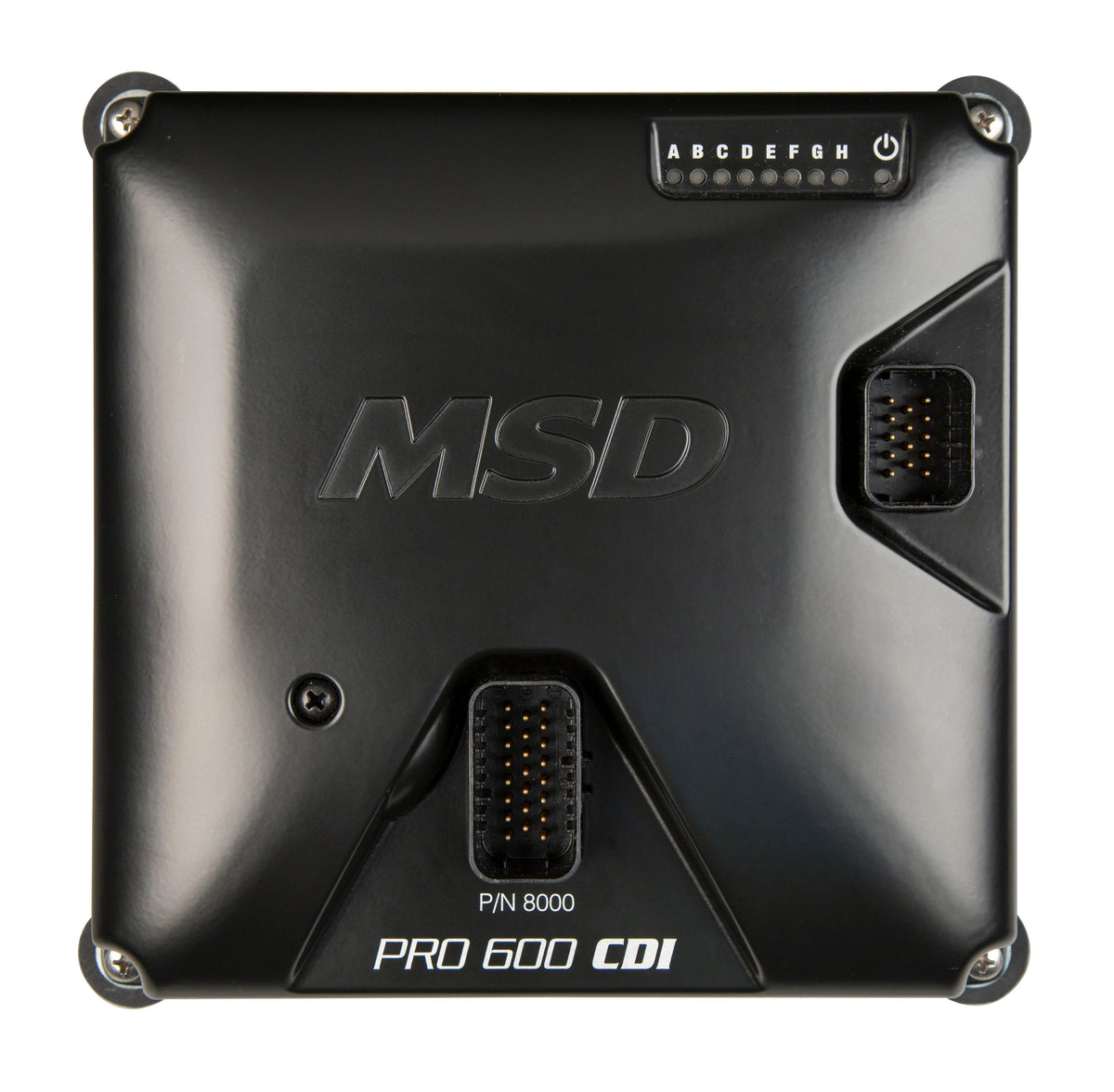

MSD ignition control box, part number 80003-8HO, supplied new.
Key Features
- Approved for NHRA Pro Mod Class
- Fits most coil-per-plug engines up to eight cylinders (Including four and six cylinders)
- 12 Volts minimum required for 600 mJ opereation
- Plug-in interface with MSD Power-Grid, Davis Profiler and OEM LS-style coil harness
- Reverse Battery Protection
- On the fly Power Output selection wire, selectable between low power and high power operation
Fitment
- Universal application — check the specification below
This is a universal component sold by specification rather than by vehicle, so there is no year/make/model list for this product. Match the part number and the specification below against your own engine before ordering.
Specifications
- Brand: MSD
- Manufacturer Part Number: 80003-8HO
- Item Type: Electrical
- Color: Black
- Connector Gender: Female
- Connector Quantity: 2
- Current Draw: 1000 RPM
- Grade Type: Race
- Ignition Type: Performance
- Maximum RPM: 15,000 RPM / 10,000 RPM at Full Power
- Mount Type: Surface Mount
- Mounting Hardware Included: Yes
- Primary Voltage: 515-520
- Product Type: Ignition Box
- Secondary Voltage: 50,000
- Spark Energy (mJ per spark): 680
- Terminal Gender: Male
- Terminal Quantity: 37
- Voltage Required: 6-22
- Country of Manufacture: United States
- Condition: New
- Shipping Weight: 18.2 lb
Images are for illustrative purposes. The product you receive may differ in finish or packaging from the photograph.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Share
🛡️
Manufacturer's Warranty — MSD
▾
Manufacturer's Warranty — MSD
MSD warrants this product to be free from defects in material and workmanship under its intended normal use for one year from the date of the original purchase, when it is properly installed and purchased from an authorized MSD dealer. The warranty is void for products purchased through auction websites. A part found defective is repaired or replaced at MSD's option, and a covered item is returned free of charge using Ground shipping. Intended normal use means the item is used as originally intended and for the original application as sold by MSD: any modification to the item, or use on an application other than what MSD markets the product for, voids the warranty. MSD states that it is the sole responsibility of the customer to determine that the item will work for the application intended, and that MSD accepts no liability for custom applications. All returns must have a Return Material Authorization (RMA) number issued before being returned — contact MSD Customer Service at (915) 857-5200 for the number and shipping information, and proof of purchase must be supplied for verification. When returning a unit for repair, leave all wires at the length at which they were installed and include a detailed account of the problem and of the components and accessories installed on the vehicle; the repaired unit is returned by Ground shipping, which is covered by the warranty. After the warranty period has expired, repair service is based on a minimum and maximum fee. Technical support is on (915) 855-7123, 7:00 a.m. to 5:00 p.m. Monday to Friday mountain time. This shall constitute the sole remedy of the purchaser and the sole liability of MSD; to the extent permitted by law it is exclusive and in lieu of all other warranties, express or implied, including any implied warranty of merchantability or fitness, and in no event shall MSD or its suppliers be liable for special or consequential damages.
Warranty terms are set by the manufacturer and may change. Full details and claims are handled directly by MSD. Contact us if you need help with a warranty claim.
