MSD 85701 Pro-Billet Small Diameter for Chevy Distributor
MSD 85701 Pro-Billet Small Diameter for Chevy Distributor
Couldn't load pickup availability
Genuine MSD part.
Proven performance features include a high output magnetic pick-up and precision machined reluctor for accurate ignition triggering. A fully adjustable mechanical advance allows you to tailor the advance curve to your specific application.
MSD performance ignition distributor, part number 85701, supplied new.
Key Features

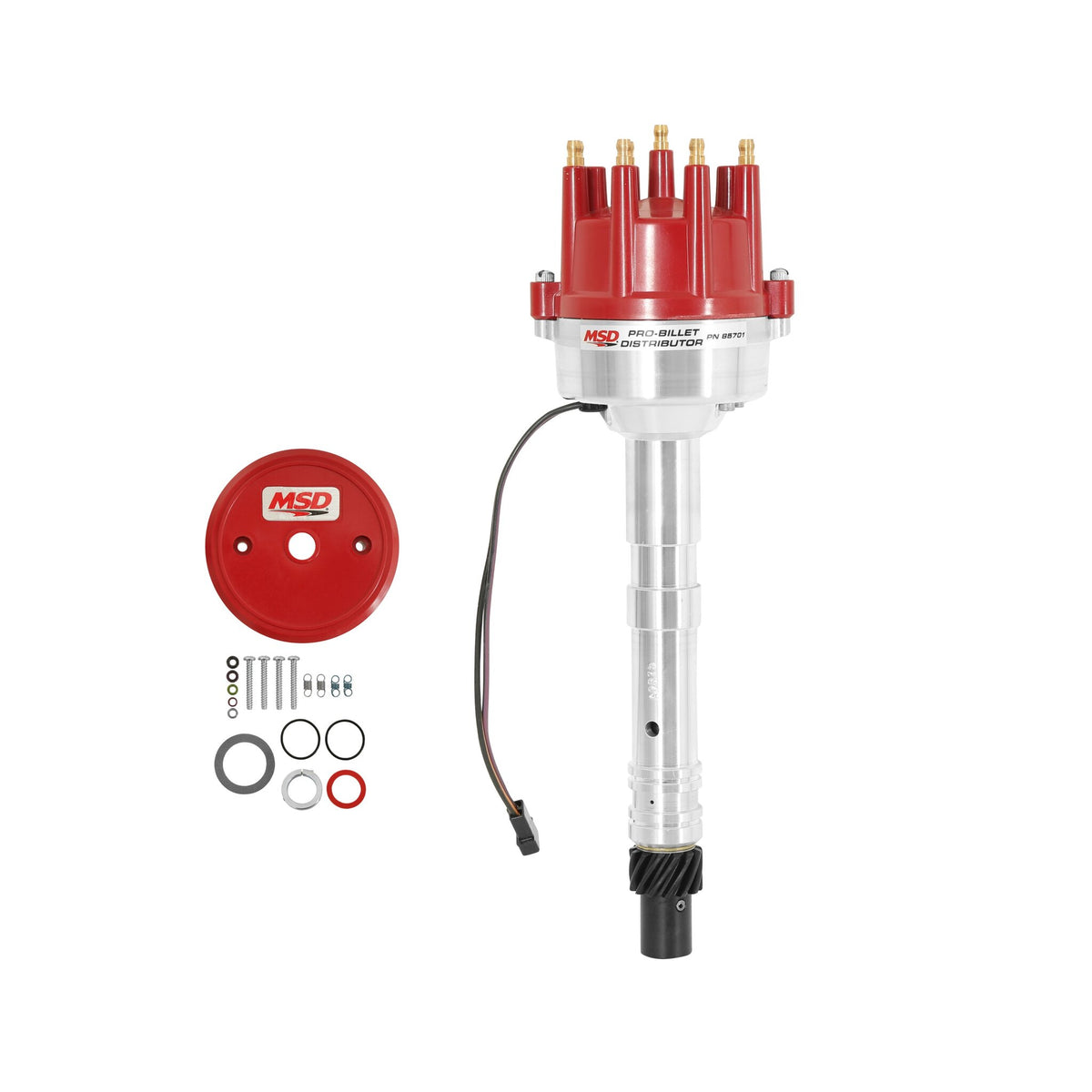

- Supplied with small diameter HEI style distributor cap and rotor
- Easy-to-adjust mechanical advance with supplied springs and stop bushings (except locked out versions)
- Nylon pads ensure smooth operation of the advance weights
- Will not accept a vacuum advance canister
- Mechanical advance assembly can be locked out for crank trigger systems

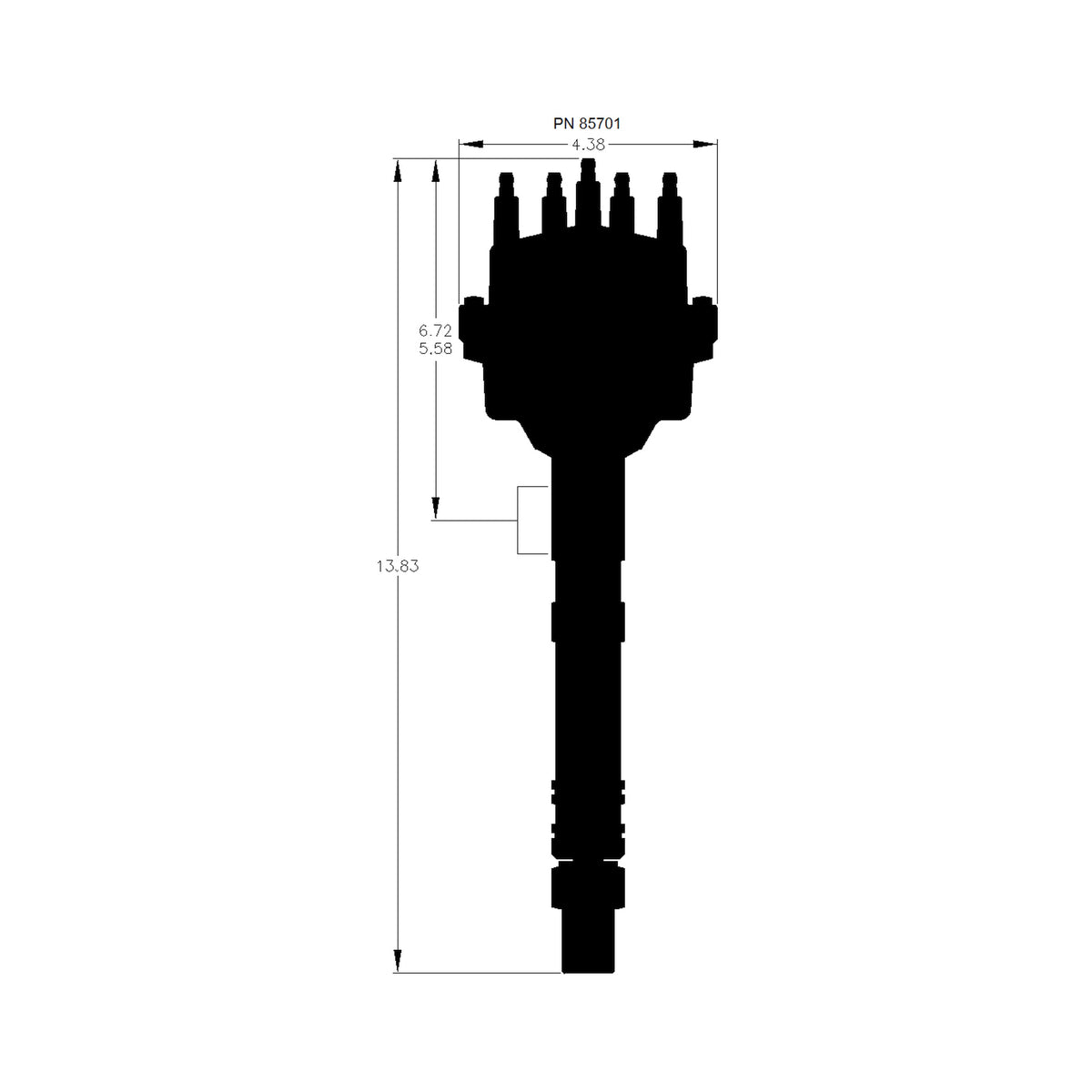

- CNC machined billet aluminum housing is 1/2” smaller in diameter and over 1” shorter than conventional for Chevy V-8 distributors with the “points” type cap
Fitment
- Universal application — check the specification below
This is a universal component sold by specification rather than by vehicle, so there is no year/make/model list for this product. Match the part number and the specification below against your own engine before ordering.
Specifications
- Brand: MSD
- Manufacturer Part Number: 85701
- Item Type: Electrical
- Color: Red
- Distributor Type: Magnetic Pickup

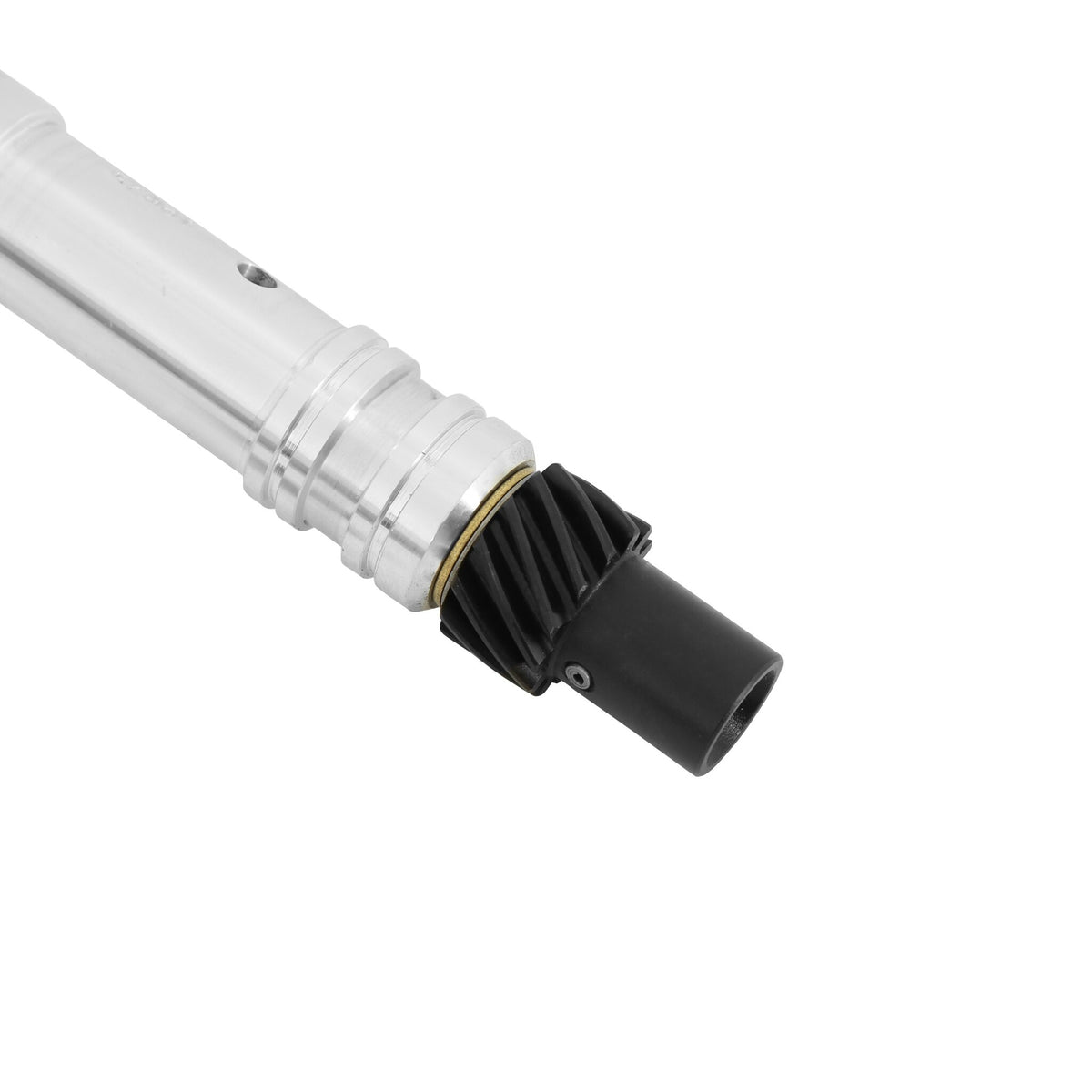

- Gear Material: Cast Iron Melonized QPQ Coated
- Grade Type: Performance
- Product Type: Distributor
- Sub Category: Distributor and Magneto
- Country of Manufacture: United States
- Condition: New
- Shipping Weight: 4.9 lb
Images are for illustrative purposes. The product you receive may differ in finish or packaging from the photograph.
