QuickCar Extreme Single Ignition 5 Switch Panel 50-7731
QuickCar Extreme Single Ignition 5 Switch Panel 50-7731
Couldn't load pickup availability

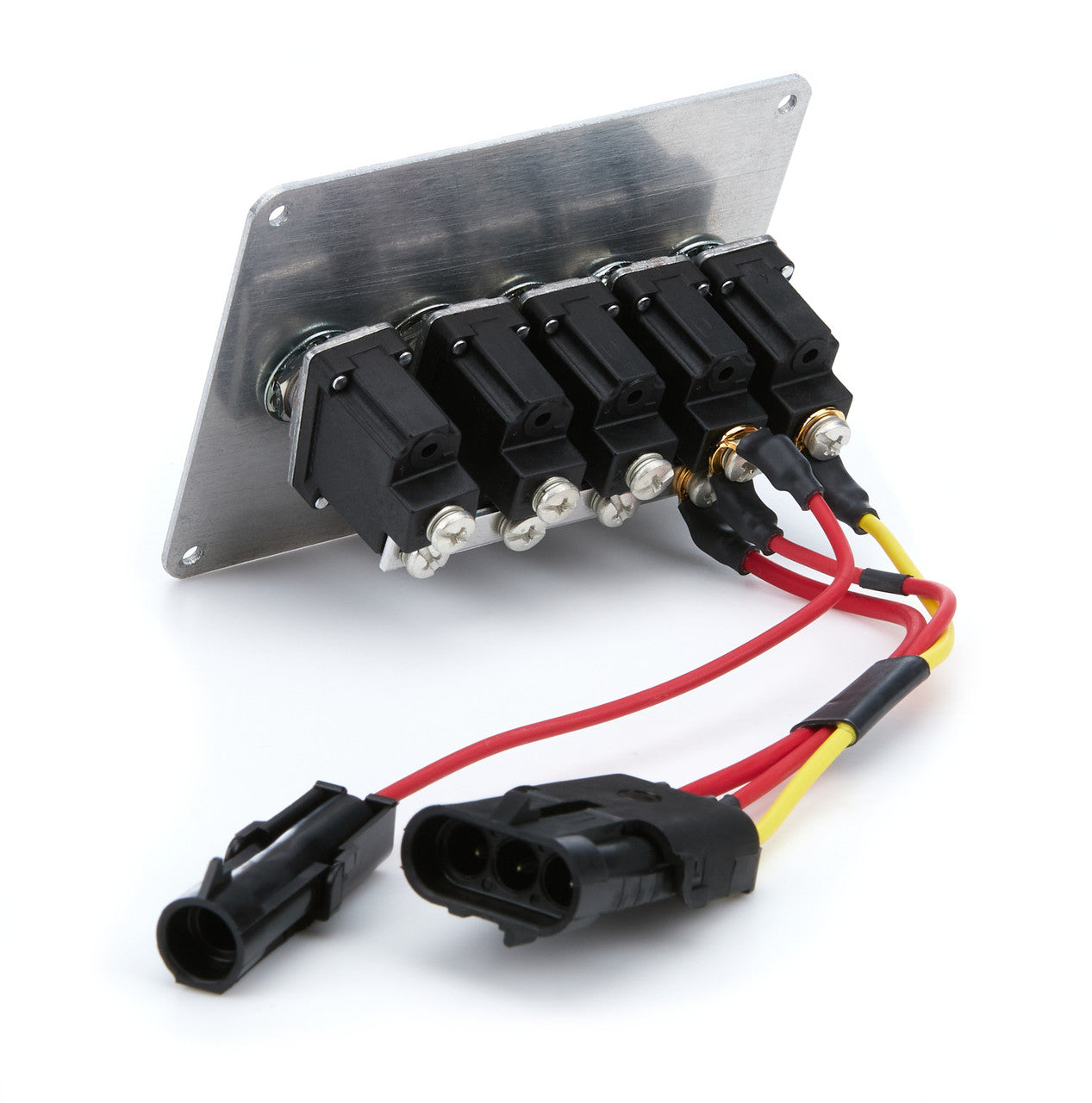

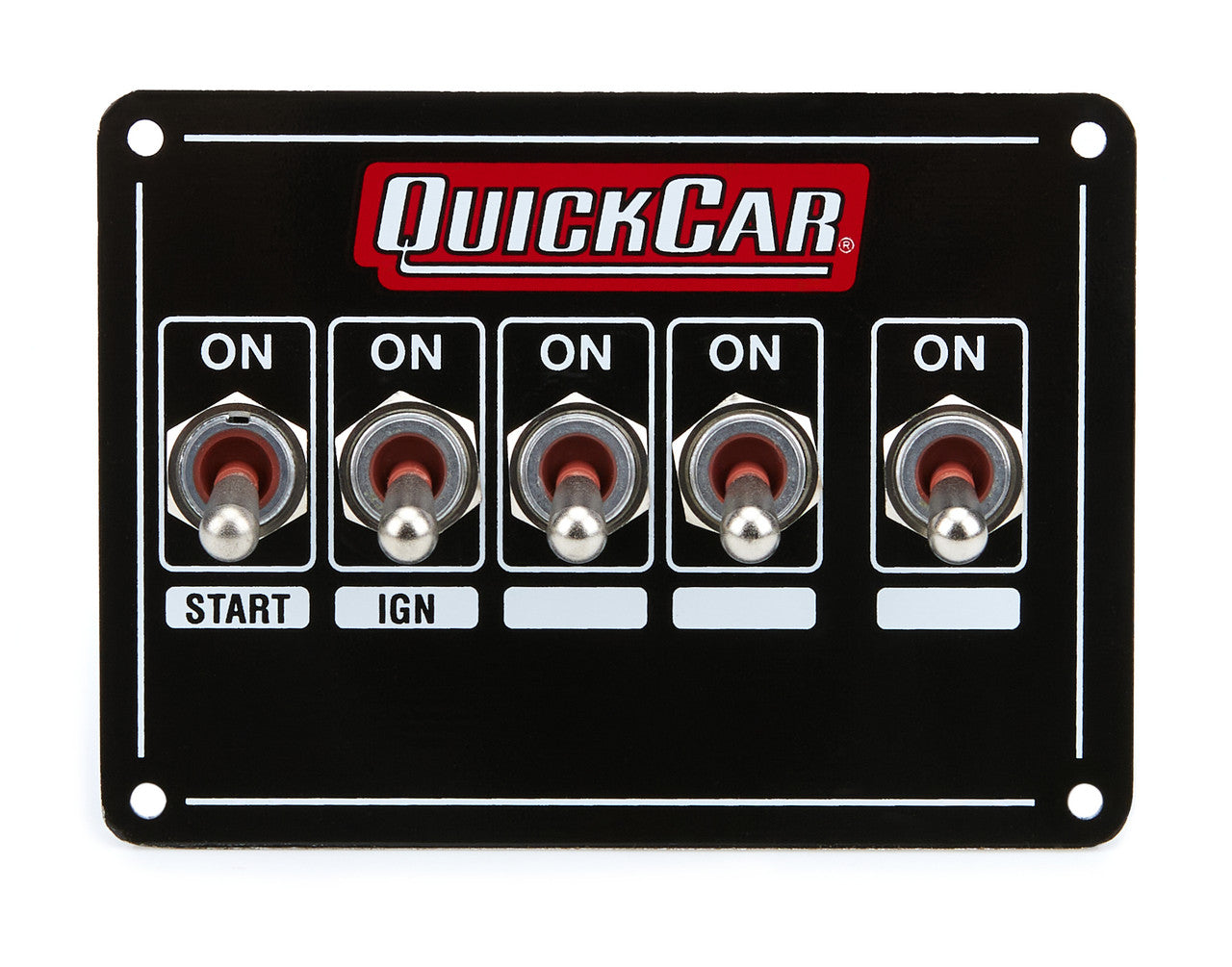

Switch Panel - Black Plate, Weatherproof Start Switch, Ignition Switch, 3 Accessory Switches 50-7731
Ignition Panel - Single Ing. with Acc Switches
Key Features
- Plug-n-Play installation: Direct fit to QuickCar wiring harnesses for Single Ignition Box Systems and HEI Systems.
- Panel Dimensions: 4-1/8" Wide x 3" Tall.
- Switch Panel includes 1 waterproof momentary starter switch, 1 single pole on/off ignition switch, and 3 on/off accessory switches.
- High current specially wound copper wiring that provide high tensile strength.
- Installed in a black plate.
- Panel comes assembled and pre-wired with mounting holes already punched out to make installation simple.
- All connectors are professionally crimped and soldered for superior quality.
- All connections are /tin plated for improved current transfer/resistance to oxidation.
- Note: Harness and installation hardware not included.
Vehicle Fitment
- Universal fitment โ this QuickCar component is selected by specification rather than by vehicle. Please confirm dimensions, thread size and clearance against your application before ordering.
Specifications
- Manufacturer Part Number: 50-7731
- Type: Switch Panel
- Shipping Dimensions: 5.8 x 5.35 x 5.25 in
- Shipping Weight: 0.62 lb
- UPC: 819616011139
Manufacturer Part Number: 50-7731
Images are for illustrative purposes only. Actual product may vary.
