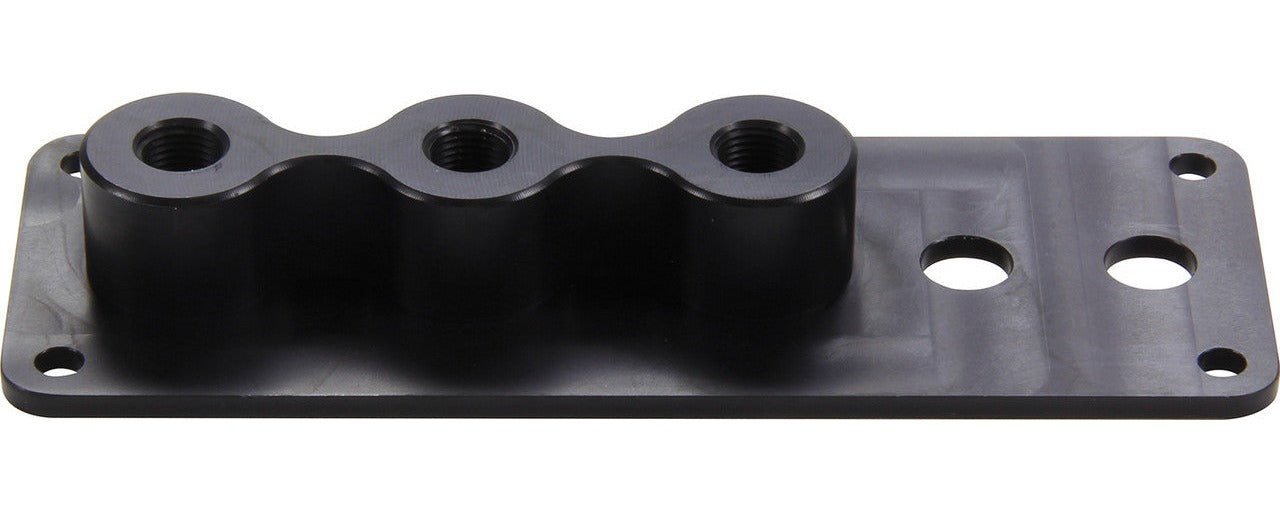

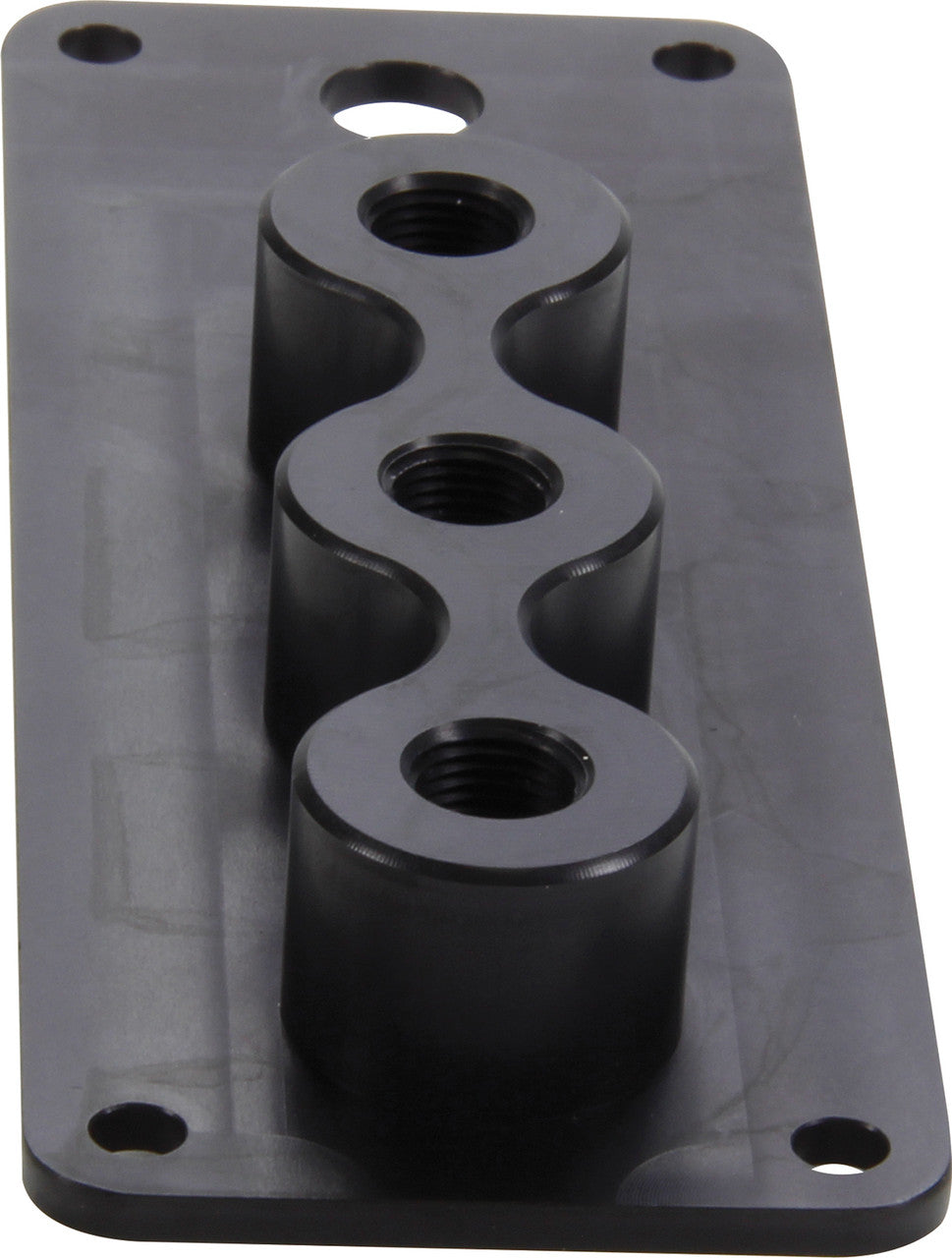

Sending Unit Firewall Junction - 3 Big - 2 Small Hole, Female 1/8" NPT, Billet Aluminum, Black 63-132
This Firewall junction allows you to remotely mount the pressure transducers used with electronic gauges, while still keeping fuel and oil outside of the driver compartment.
Firewall Junction 3 Big 2 Small Hole
Key Features
- Three-Terminal Junction with Two Accessory Holes.
- Black anodized billet aluminum.
- Connects pressure lines to pressure transducers.
- Essential for stepper motor gauges.
- Typically mounted on firewall.
- Features 1/8" NPT threads for transducers on interior side of firewall.
- Pressure lines connect adjacently on engine side of firewall.
- Flexible installation options: available with or without accessory wiring holes.
Vehicle Fitment
- Universal fitment โ this QuickCar component is selected by specification rather than by vehicle. Please confirm dimensions, thread size and clearance against your application before ordering.
Specifications
- Manufacturer Part Number: 63-132
- Shipping Dimensions: 7.05 x 4.05 x 0.85 in
- Shipping Weight: 0.265 lb
- UPC: 810165042810
Manufacturer Part Number: 63-132
Images are for illustrative purposes only. Actual product may vary.
