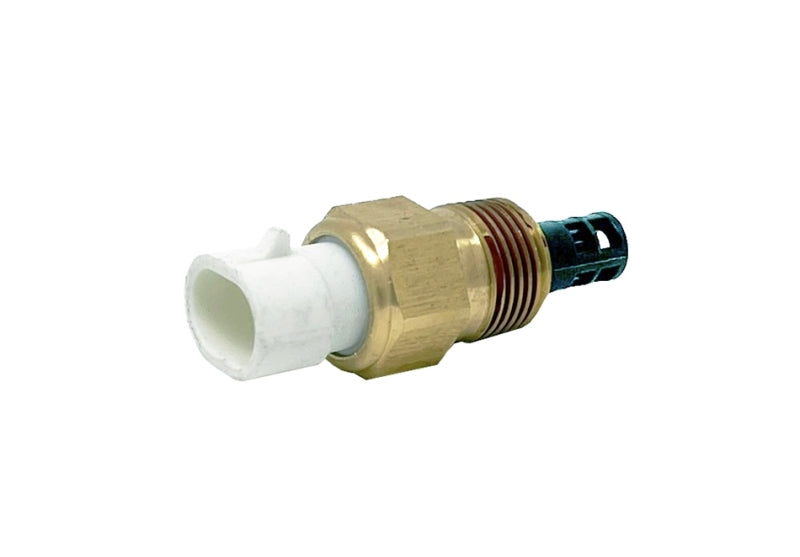

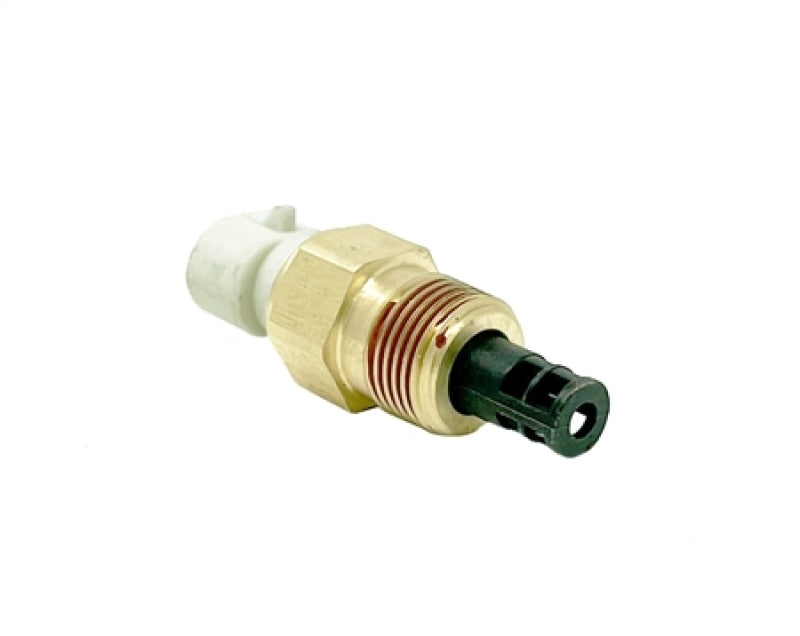

Torque Solution Fast Response IAT Sensor Universal GM Style

Torque Solution Fast Response IAT Sensor Universal GM Style

$ 15.94
$ 17.54 $ 15.94
✓ In Stock • Ready to Ship
Shipping calculated at checkout.

Torque Solution Fast Response IAT Sensor is the perfect choice when converting to a speed density setup or just needing to replace your existing GM IAT sensor. Pair this with 1 of our compatible wire harness solutions and weld-on 3/8" bungs for the complete package.

  • Fast Response
  • Direct Fit for GM Style IAT Sensor
  • 1 Year Warranty

Sensor Specifics:

  • Typical Voltage Supply: 5V DC
  • Operating Temperature: -40 C to 135 C
  • Sensor Body Material: Brass
  • Hex Size: 18.90 mm (3/4")
  • Thread Size: 3/8" - 18 NPTF w/ Thread Sealing Compound
  • Sealing Pressure: 200 kPa
  • Interchangeable With The Below Part Numbers:
  • AC Delco / GM Part #'s: 25036751, 5S1007, AJ0005, TS10077, 213-190, 25037334, 213190, 213192, 25037034, 25037225, 5744430, 8250373340, SU107, 8250367510, 213191, 25036950, 25095187, 3854527, 38545273
  • AEM 30-2010
  • Haltech HT-010204
  • Other GM Style IAT Sensors
  • The
  • calibration data for TS IAT sensors follows a standard GM-style thermistor
  • curve.
  • Typical
  • resistance values change non-linearly with temperature:
  • Temperature (°C)
  • Temperature (°F)
  • Sensor Resistance (Ω)
  • 40°C
  • 40°F
  • 100,700
  • Ω
  • 20°C
  • 4°F
  • 27,240
  • Ω
  • 0°C
  • 32°F
  • 9,398
  • Ω
  • 20°C
  • 68°F
  • 3,520
  • Ω
  • 40°C
  • 104°F
  • 1,459
  • Ω
  • 60°C
  • 140°F
  • 667
  • Ω
  • 80°C
  • 176°F
  • 332
  • Ω
  • 100°C
  • 212°F
  • 177
  • Ω
  • Key
  • Sensor Specifications
  • Operating
  • Range: -40°C to 135°C (-40°F to 275°F)
  • <span style="font-size:11.0pt;mso-ascii

Application: Universal GM Style IAT Sensor — verify fitment for your setup.

Manufacturer Part Number: TS-ES-IAT-GM

Images are for illustrative purposes only. Actual product may vary.

⚠ WARNING (California Proposition 65): This product can expose you to chemicals which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Manufacturer's Warranty — Torque Solution

Torque Solution states a Limited Lifetime Warranty on its manufactured billet aluminum and polyurethane parts — engine, transmission and differential mounts, shifter and suspension bushings, blow off valve adapters, exhaust hangers, flanges and fittings. Its electronic parts (Fast Response IAT sensors and PNP speed-density adapter harnesses) carry a 1-year warranty instead. Wear and consumable items — turbo blankets, intake gaskets, exhaust wrap and heat tape — are sold without a stated warranty term. Coverage applies to the original purchaser against manufacturing defects; check the individual product listing for the term that applies to that part.

Warranty terms are set by the manufacturer and may change. Full details and claims are handled directly by Torque Solution. Contact us if you need help with a warranty claim.
