Torque Solution V2 HD Oil Pan (Street) Subaru EJ Engines

Torque Solution V2 HD Oil Pan (Street) Subaru EJ Engines

$ 405.51
$ 446.07 $ 405.51
Free shipping on orders over $99 (contiguous U.S.) โ€” flat $10.99 under $99. Shipping details
โœ• Out of Stock

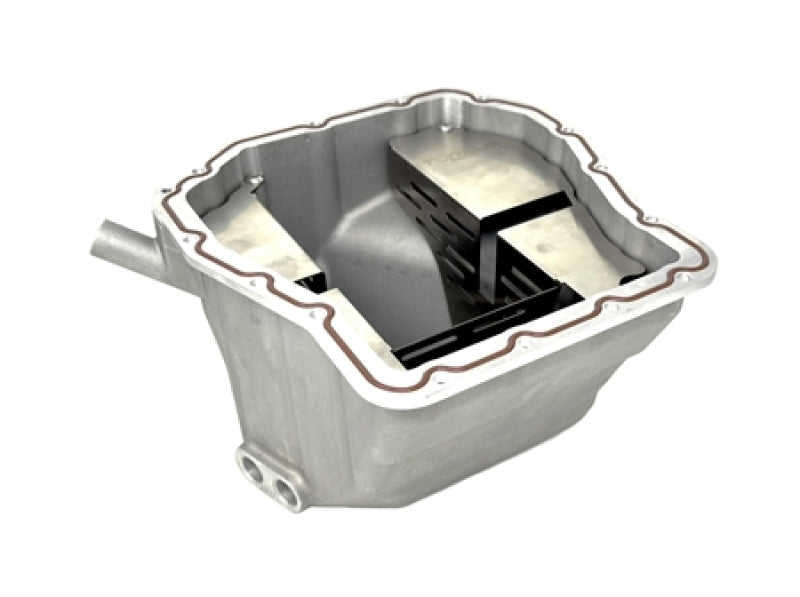

Torque Solution V2 HD Oil Pan is the perfect solution to keep your EJ engine happy and lubricated. Our pan is molded from cast aluminum and then CNC'd to perfection providing approximately 6 quarts of oil capacity. It also features a CNC oil pan groove with a FKM rubber o-ring gasket for a leak proof seal that offers ease of installation and future removal. No more scraping off gasket material!! We also incorporated cooling fins to the bottom of the pan, which are positioned to have air flow pass through them to aid in keeping oil temps down. The new and improved oil pan now features a bolt-in baffle. The baffle is an integral part of the oil pan to prevent slosh and help keep the oil at the pickup where it is needed. All necessary install hardware is included. No need to buy any extra parts to install!!

  • CNC Cast Aluminum
  • 6 Quart Oil Capacity (Over 30% Increase In Oil Capacity)
  • Stainless Steel / Tig Welded Bolt-In Internal Street Baffle
  • Seamless FKM Rubber O-Ring Gasket
  • CNC Cooling Fins
  • M20 (OEM) and 1/2" NPT Ports
  • Stainless Steel Install Hardware
  • No Additional Install Hardware Needed!!
  • Limited Lifetime Warranty

Fits:

  • All EJ20/25 Engines

Includes:

  • Cast Aluminum Oil Pan (1)
  • Bolt-In Stainless Steel Street Baffle (pre-installed) (1)
  • M6 x 15 Stainless Button Head Bolt (pre-installed w/ baffle) (4)
  • Seamless FKM Rubber Oil Pan O-Ring Gasket (1)
  • FKM Rubber Dipstick Tube 2x10mm O-Ring Gasket (2)
  • M20 OEM Subaru Drain Plug P/N: 807020010 (1)
  • M20 Copper Drain Plug Gaskets (5)
  • 1/2" NPT Brass Plug w/ Teflon Tape (used if not using a temp sensor)
  • 1/2" NPT to 1/8" NPT Brass Plug w/ Teflon Tape (optional for oil temp sensor)
  • Billet Aluminum Oil Pick Up Suction Tube Spacer w/ x2 -117 FKM O-Ring Gasket (1)
  • Billet Aluminum Oil Pick Up Pedestal Spacers (2)
  • FKM Rubber Spacer Bolt Retainer -008 O-Ring Gaskets (4) (used to pre-install the spacers onto the oil pick-up)
  • M6 Stainless Steel Flat Washer (4) (for oil pick up spacer bolts)
  • M6 x 30 Stainless Steel Socket Cap Bolt (2) (oil pickup tube)
  • M6 x 18 Stainless Steel Socket Cap Bolt (14) (outside oil pan bolts)
  • M6 x 25 Stainless Steel Socket Cap Bolt (2) (oil pickup tube leg spacers)

Disclaimers:

  • Must use with an aftermarket oil pick up.
  • Will not work with the OEM or Moroso Oil Pick Ups.
  • 02-05 WRX EJ20 engines must use an EJ25 Dipstick Part # 11140AA150
  • *Tested to fit with most headers. Confirmed fitment with ETS and Killer B header. Perrin header needs a little work to fit, such as compressing the primary upper tube slightly down towards the lower tube.

Application: Subaru EJ Engines โ€” verify fitment for your setup.

Manufacturer Part Number: TS-SU-599V2-S

Images are for illustrative purposes only. Actual product may vary.

โš  WARNING (California Proposition 65): This product can expose you to chemicals which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Manufacturer's Warranty โ€” Torque Solution

Torque Solution offers a Limited Lifetime Warranty, but only on parts Torque Solution manufactures and only on items that are not wear-and-tear parts. Torque Solution names urethane (polyurethane), rod ends, bearings, pulleys and coil packs as wear items its warranty does not cover — so urethane bushings, inserts and endlinks are treated as consumables even where a listing shows a lifetime bullet, and Torque Solution recommends routine inspection. Thermal blankets are covered for one (1) year against manufacturing defects, while exhaust wrap carries no warranty at all because of how it is installed and used. A few electronic parts — Fast Response IAT sensors and PNP speed-density adapter harnesses — state a 1-year term on their own product listings; Torque Solution asks you to confirm on the individual product page that the part carries a warranty before filing. Claims are filed by the original purchaser with proof of purchase, a clear description of the fault and detailed photos; if approved Torque Solution repairs or replaces the part rather than refunding it, and shipping both to and from Torque Solution is the customer's responsibility. Coverage is voided by improper installation, exposure to an exhaust leak, saturation by fluids such as oil, coolant or fuel, or use beyond the part's listed specifications. Also excluded: anodizing (UV, heat and chemical detergents), environmental corrosion, damage to or from related vehicle components, and installation, removal or vehicle-downtime costs. Noise, vibration and harshness after fitting stiffer or solid components is expected and is not a valid warranty or return issue. Fitment is based on USDM vehicles unless noted — cross-compatibility with non-USDM cars is not confirmed — and Torque Solution products are intended for off-road / race use only, with none of them CARB legal. Torque Solution's own returns and exchanges window is 30 days from the receiving date on new, unused items, with shipping both ways covered by the purchaser.

Warranty terms are set by the manufacturer and may change. Full details and claims are handled directly by Torque Solution. Contact us if you need help with a warranty claim.
