Wilwood

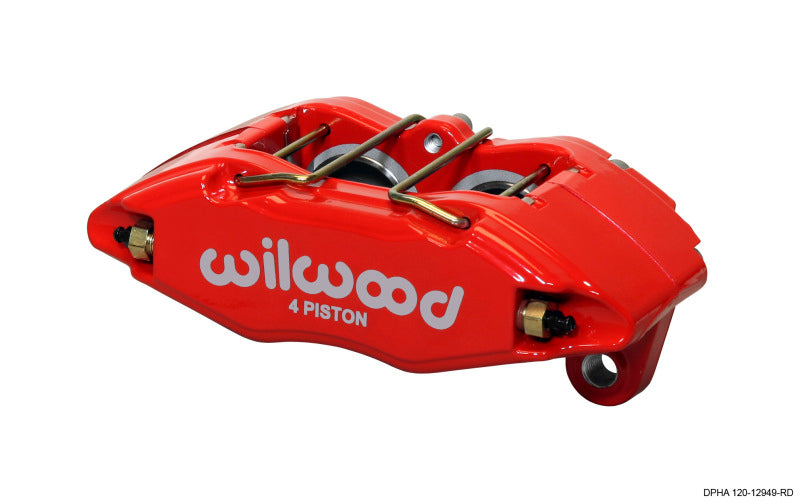

Wilwood Caliper-Dynapro Honda/Acura - Red 1.62in Pistons .83in Disc - #120-12949-RD
Wilwood Caliper-Dynapro Honda/Acura - Red 1.62in Pistons .83in Disc - #120-12949-RD
Couldn't load pickup availability
The Forged DynaPro Honda/Acura (DPHA) caliper represents the newest generation of calipers designed exclusively as a direct bolt-on for Honda and Acura models originally equipped with 262mm diameter rotors. These calipers bolt directly to the stock mounts on factory spindles, fit over the OE 262mm diameter rotor, accept the OE brake hose, and clear many factory aluminum 15” wheels. Designed around Wilwood’s proven DynaPro series four piston calipers, the forged billet bodied DPHA caliper delivers high-strength clamping force and positive stopping power. Four stainless steel pistons provide fully balanced pad loading, along with the corrosion resistance and thermal retardant qualities of the stainless alloy that will keep your calipers cooler and running trouble free for many more miles. Calipers work perfectly with most OE master cylinders and will maintain ABS function. DPHA calipers are available with either black, red or Competition Blue high-gloss, high-temp, brake fluid resistant sealed powder coat and feature Wilwood’s signature logo.
Wilwood performance aftermarket brake components are loaded with the features and technology built from decades of domination in world motorsports, and the proven reliability of Zero PPM defect quality supply to leading OE manufacturers around the world. These components will not only optimize the braking performance, it will deliver mile after mile of reliable performance and service life on your Honda/Acura.
- Maximum Rotor Diameter(in)
- Minimum Rotor Diameter(in)
- Pad Dimensions & Part Numbers
- Pad Dimensions for the Forged DPHA
- Non-Bedded Pads - by Compounds
- Mount Dimensions & Part Numbers
- Dimensions for the Forged DPHA
- Products commonly used with this item:
- Pk Qty: 4 Pack Dim ID 1: 1.620 in" style="border-width:0px;width:300px;max-width: 300" />
- Caliper Square Ring Kit - 130-4346
- Pk Qty: 4 Pack Dim ID 1: 1.620 in
- O.D.: 1.62 in Length: 0.880 in" style="border-width:0px;width:300px;max-width: 300" />
- Cast Stainless Piston - 200-7520
- O.D.: 1.62 in Length: 0.880 in
- Thermlock Piston - 200-9615
Details
- Manufacturer Part Number: 120-12949-RD
Universal / application-specific component — please verify specifications and compatibility with your brake system before ordering.
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Image shown is a representative product from the same Wilwood series; it is for reference only and the actual product will differ. Refer to the part number and specifications above.
Share
🛡️
Manufacturer's Warranty — Wilwood
▾
Manufacturer's Warranty — Wilwood
Wilwood Engineering publishes a formal Disclaimer of Warranty for its disc brakes, hubs, and racing components (datasheet DS-237). Because these parts are exposed to widely varying installation and operating conditions, Wilwood sells them “as is” and “with all faults,” and makes no warranty of any kind — expressed or implied, including no warranty of merchantability and no implied warranty of fitness for a particular purpose. Purchasers are expected to rely on their own skill and judgement to select the correct part, and it is the installer's responsibility to determine a component's suitability for the application. Racing equipment and brakes must be maintained and checked regularly for fatigue, damage, and wear. If a part arrives with a suspected manufacturing defect, contact us and we'll help you take it up with Wilwood.
Warranty terms are set by the manufacturer and may change. Contact us if you need help with a warranty claim.
