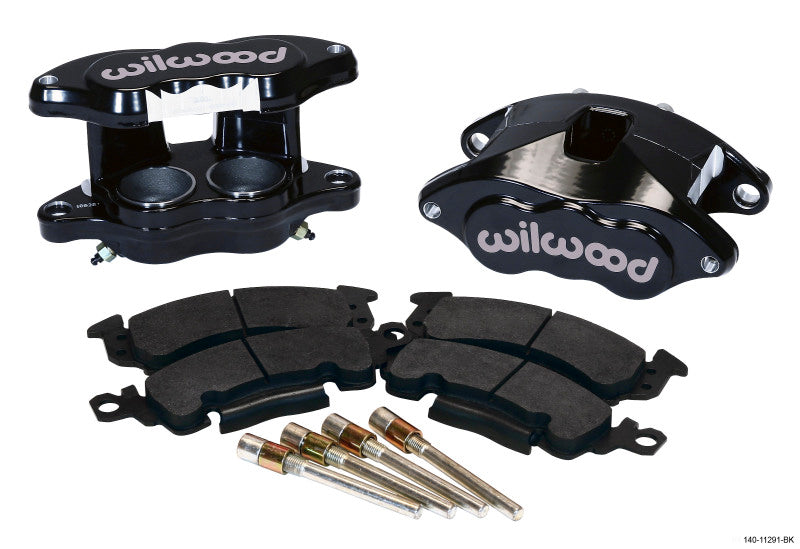

Wilwood D52 Front Caliper Kit - Black Powder 2.00 / 2.00in Piston 1.04in Rotor - #140-11291-BK

Wilwood's D52 Front Caliper Kit is a direct bolt-on 2 piston replacement for the factory original single calipers on many 1968-96 GM Passenger Vehicles and Trucks. Forged billet aluminum bodies, stainless steel pistons, and competition style high-temperature seals put an end to the rust, bore pitting, and seal failures that plague the OE caliper design. D52 calipers provide low-maintenance performance and a huge weight savings with high temperature reliability for the street and track. D52 calipers mount in the stock location over stock rotors, use the original style OE D52 brake pads and an OE 7/16-20 banjo bolt brake line mounting. Calipers can be used with most wheels that clear the OE calipers. The front calipers with 2.00” piston provide 6.28 square inches of piston area per caliper, in order to maintain the original front to rear brake bias and use of the OE master cylinder. Kits contain Wilwood’s hardened slide pins and BP-10 high friction pads. Matching rear calipers are also available for custom installations. Vehicles 1978 & Up (with M10-1.5 banjo bolts) will require new brake lines available below.

• D52 Caliper Upgrade Kit Install Using a 1967 Camaro
• Fitment & Installation Details
• D52 Front Caliper Kit Assembly Schematic
• Compatible Vehicles for this Brake Kit
• This Brake Kit is Compatible with the Following Vehicle Makes:

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

THIS BRAKE KIT HAS A HUB OFFSET OF:

This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle

Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

• Kit Components & Specifications
• D52 Caliper - Black Powder Coat
• Hat Offset Dimension (in):
• Products commonly used with this item:
• Length: 14.00 in Size: -3" style="border-width:0px;width:300px;max-width: 300" />
• Length: 14.00 in Size: -3
• Length: 16.00 in Size: -3" style="border-width:0px;width:300px;max-width: 300" />
• Length: 16.00 in Size: -3
• Length: 18.00 in Size: -3" style="border-width:0px;width:300px;max-width: 300" />
• Length: 18.00 in Size: -3

Please verify exact fitment for your vehicle before ordering.

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Image shown is a representative product from the same Wilwood series; it is for reference only and the actual product will differ. Refer to the part number and specifications above.
