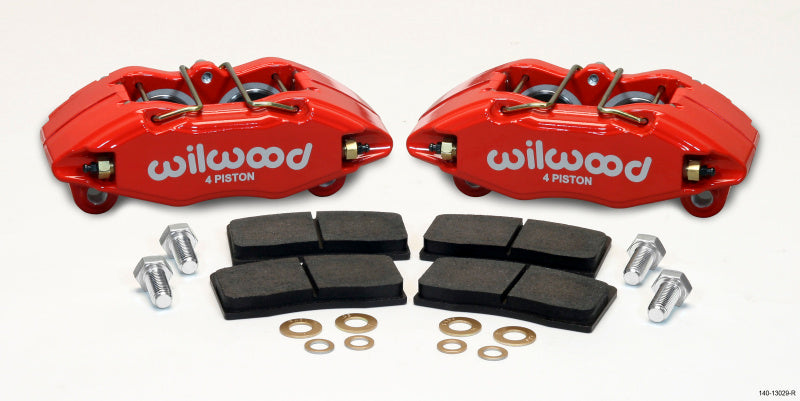

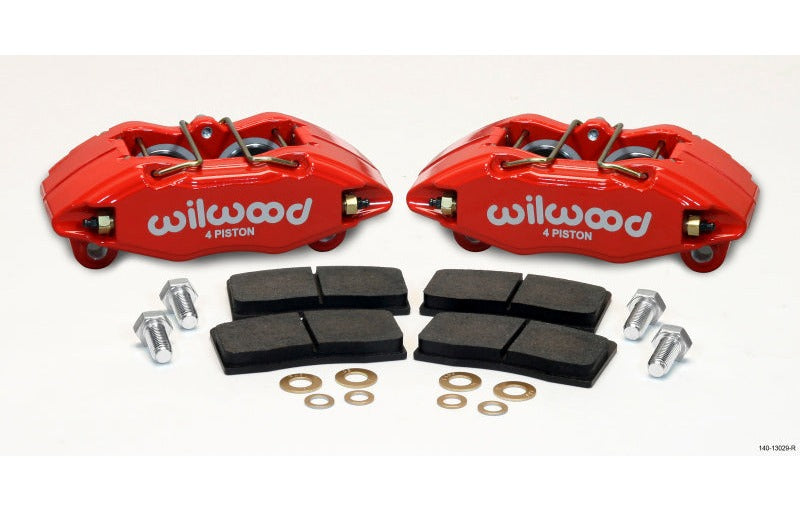

Wilwood DPHA Front Caliper & Pad Kit Red Honda / Acura w/ 262mm OE Rotor - #140-13029-R
Wilwood DPHA Front Caliper & Pad Kit Red Honda / Acura w/ 262mm OE Rotor - #140-13029-R
Couldn't load pickup availability
Wilwood’s new DynaPro Honda/Acura Caliper (DPHA) for Honda and Acura models originally equipped with 262mm diameter rotors. These calipers bolt directly to the stock mounts on factory spindles, fit over the OE 262mm diameter rotor, accept the OE brake hose, and clear many factory aluminum wheels including the EM1 Si 15” wheel. Designed around Wilwood’s proven DynaPro series four piston calipers, the forged billet bodied DPHA caliper delivers high-strength clamping force and positive stopping power. Four stainless steel pistons provide fully balanced pad loading, along with the corrosion resistance and thermal retardant qualities of the stainless alloy that will keep your calipers cooler and running trouble free for many more miles. Calipers work perfectly with the OE master cylinder and ABS functions, and are available with either black or red high-gloss, high-temp, brake fluid resistant sealed powder coat and feature Wilwood’s signature logo.
Fitment
- 1990-2001 Acura Integra
- 1986-1990 Acura Legend
- 1988-1989 Honda Accord
- 1990-2015 Honda Civic
- 2007-2017 Honda Fit
- 2010-2014 Honda Insight
- 1988-1991 Honda Prelude
- Manufacturer Part Number: 140-13029-R
Please verify exact fitment for your vehicle before ordering.
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Image shown is a representative product from the same Wilwood series; it is for reference only and the actual product will differ. Refer to the part number and specifications above.
Share
🛡️
Manufacturer's Warranty — Wilwood
▾
Manufacturer's Warranty — Wilwood
Wilwood Engineering publishes a formal Disclaimer of Warranty for its disc brakes, hubs, and racing components (datasheet DS-237). Because these parts are exposed to widely varying installation and operating conditions, Wilwood sells them “as is” and “with all faults,” and makes no warranty of any kind — expressed or implied, including no warranty of merchantability and no implied warranty of fitness for a particular purpose. Purchasers are expected to rely on their own skill and judgement to select the correct part, and it is the installer's responsibility to determine a component's suitability for the application. Racing equipment and brakes must be maintained and checked regularly for fatigue, damage, and wear. If a part arrives with a suspected manufacturing defect, contact us and we'll help you take it up with Wilwood.
Warranty terms are set by the manufacturer and may change. Contact us if you need help with a warranty claim.
