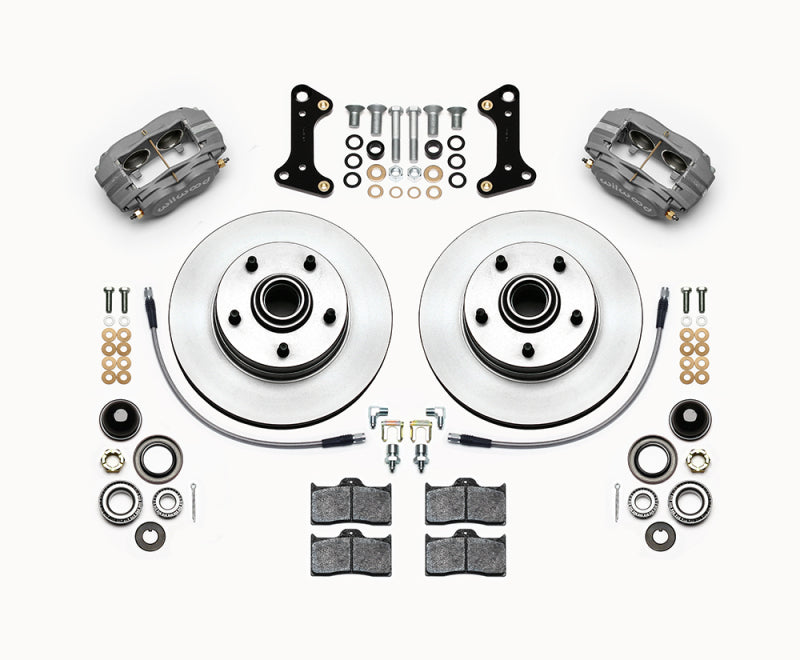

Wilwood Forged Dynalite-M Front Kit 11.00in 1 PC Rotor&Hub 67-69 Camaro 64-72 Nova Chevelle - #140-15272

Wilwood’s Classic Series front disc brake kits for 1964 to 1974 GM A-body, X-body and 1967-69 F-body offer disc brake upgrade solutions for OEM Drum & Disc brake spindles. These kits feature the FDL-M four piston forged aluminum caliper and 11.00" diameter x 1.00” thick one-piece rotors. This new kit widens the track by only +.47" from original drum brake position or narrows by -.03" from the original disc brake rotor assembly. The FDL-M caliper is a modified version of the time-tested Forged Dynalite caliper, and provides the greatest amount of wheel clearance of any four piston caliper in its size class. Newly updated OEM style one-piece cast iron rotors with integrated hubs with 1/2"-20 screw in wheel studs simplify installation while providing superb dimensional stability and wear resistance. These versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver or the most discriminating show enthusiast. Intended vehicle applications require no modifications for installation, and clear most 14" OEM wheels. Classic Series FDL-M kits can be used with either manual or power boost master cylinders, and come complete with calipers, rotors, brackets, hardware, braided steel line kit and detailed installation instructions.

Fitment & Installation Details

Classic Series Dynalite Front Brake Kit Assembly Schematic

*NOTE: Some applications for this kit have the steering arm to the rear of the spindle and others to the front. Also, some applications have room to mount the bracket and caliper on the steering arm side of the spindle while the steering arm may interfere in other applications. The brackets in this kit may be mounted on either the front or rear side of the spindle. If mounting to the front of the spindle, the right hand bracket will be used on the left hand side of the vehicle and vice versa. This drawing shows a typical 1967-1969 Camaro left side application where the steering arm is to the rear and there is room to mount the caliper on the steering arm side as shown. Determine which way the bracket and caliper will fit best on your application.

Compatible Vehicles for this Brake Kit

This Brake Kit is Compatible with the Following Vehicle Makes:

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

THIS BRAKE KIT HAS A HUB OFFSET OF:

This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle

Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

• Kit Components & Specifications
• Forged Dynalite-M Caliper -
• 1 PC Hub and Rotor - Iron - Plain
• Hat Offset Dimension (in):
• Products commonly used with this item:
• Length: 16.00 in Size: -3" style="border-width:0px;width:300px;max-width: 300" />
• Length: 16.00 in Size: -3

Please verify exact fitment for your vehicle before ordering.
