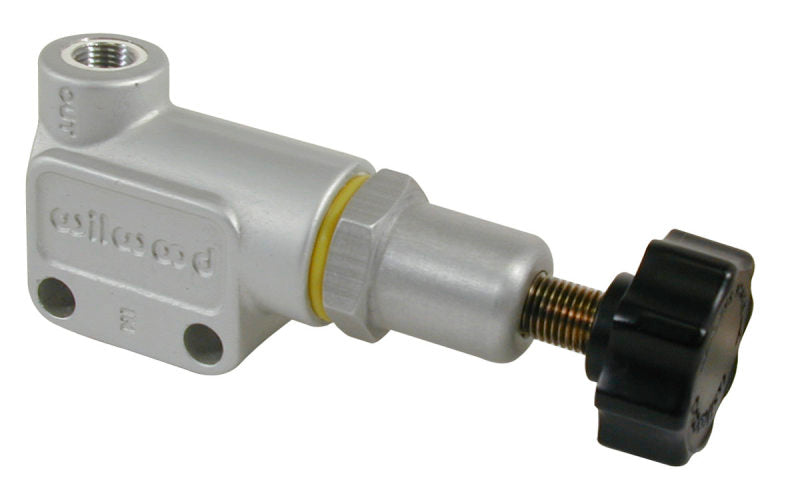

Wilwood Proportioning Valve - Knob Adjust 3/8-24 IF Inlet & Outlet - #260-10922
Wilwood Proportioning Valve - Knob Adjust 3/8-24 IF Inlet & Outlet - #260-10922
Couldn't load pickup availability
The new generation of adjustable proportioning valves combines the latest refinements to deliver precise pressure metering and strength from a compact forged billet design. Pressure adjustments range from 100-1000 PSI and provide for a maximum decrease of 57% in line pressure, the most of any available valve. Adjuster knob with fine thread tuning provides precise pressure adjustment. This adjustment lets you fine tune the front to rear braking balance by proportionally decreasing the rear brake line pressure. Valves weigh only 5.2 ounces and have two .25” side mounting holes spaced 1.00” apart. This valve varies from our standard Knob Style Proportioning valve, as the in and out ports are 3/8-24 inverted flare seats and do not require tube nut adapters to directly install 3/16 tubing with inverted flare 3/8-24 nuts.
Details
- Manufacturer Part Number: 260-10922
Universal / application-specific component — please verify specifications and compatibility with your brake system before ordering.
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Image shown is a representative product from the same Wilwood series; it is for reference only and the actual product will differ. Refer to the part number and specifications above.
Share
🛡️
Manufacturer's Warranty — Wilwood
▾
Manufacturer's Warranty — Wilwood
Wilwood Engineering publishes a formal Disclaimer of Warranty for its disc brakes, hubs, and racing components (datasheet DS-237). Because these parts are exposed to widely varying installation and operating conditions, Wilwood sells them “as is” and “with all faults,” and makes no warranty of any kind — expressed or implied, including no warranty of merchantability and no implied warranty of fitness for a particular purpose. Purchasers are expected to rely on their own skill and judgement to select the correct part, and it is the installer's responsibility to determine a component's suitability for the application. Racing equipment and brakes must be maintained and checked regularly for fatigue, damage, and wear. If a part arrives with a suspected manufacturing defect, contact us and we'll help you take it up with Wilwood.
Warranty terms are set by the manufacturer and may change. Contact us if you need help with a warranty claim.
