Wilwood High Volume Aluminum Master Cylinder - 3/4in Bore - #260-6764
Wilwood High Volume Aluminum Master Cylinder - 3/4in Bore - #260-6764
Couldn't load pickup availability
Wilwood High-Volume Aluminum Master feature high pressure die-cast bodies from high-grade aluminum. Wilwood. High-Volume Master Cylinders have the highest fluid capacity of any integral reservoir design. With a total capacity of 8.2 ounces, there is at least 26% more fluid volume than other brands. . With 1-7/16" of piston travel, it offers extra margin when used with large piston calipers. Heavy duty internal springs provide fast retraction. Formed steel lids with bellows type gaskets keep the moisture out. Wilwood master cylinders use common dimensions for flange or side mounting and a 1/8-27 NPT outlet port.
Details
- Manufacturer Part Number: 260-6764
Universal / application-specific component — please verify specifications and compatibility with your brake system before ordering.
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

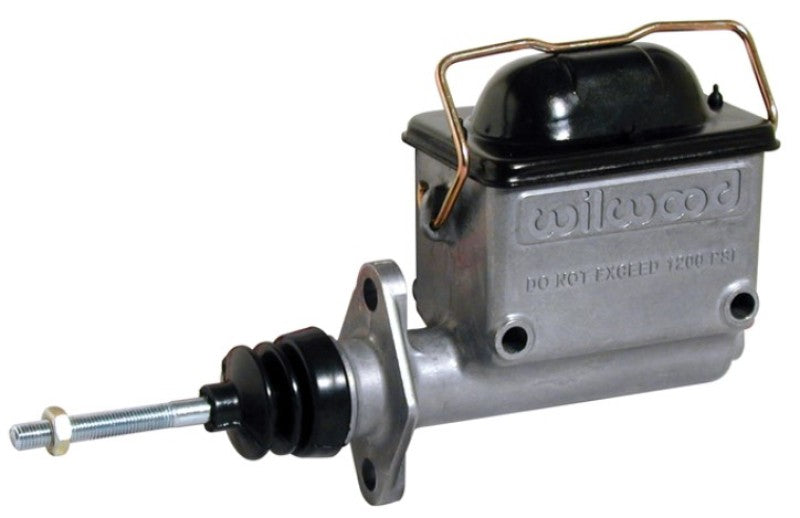

Image shown is a representative product from the same Wilwood series; it is for reference only and the actual product will differ. Refer to the part number and specifications above.
Share
🛡️
Manufacturer's Warranty — Wilwood
▾
Manufacturer's Warranty — Wilwood
Wilwood Engineering publishes a formal Disclaimer of Warranty for its disc brakes, hubs, and racing components (datasheet DS-237). Because these parts are exposed to widely varying installation and operating conditions, Wilwood sells them “as is” and “with all faults,” and makes no warranty of any kind — expressed or implied, including no warranty of merchantability and no implied warranty of fitness for a particular purpose. Purchasers are expected to rely on their own skill and judgement to select the correct part, and it is the installer's responsibility to determine a component's suitability for the application. Racing equipment and brakes must be maintained and checked regularly for fatigue, damage, and wear. If a part arrives with a suspected manufacturing defect, contact us and we'll help you take it up with Wilwood.
Warranty terms are set by the manufacturer and may change. Contact us if you need help with a warranty claim.
